Trident Marine 3-1/2" ID 45-Degree EPDM Black Rubber Molded Wet Exhaust Elbow w/4 T-Bolt Clamps

SKU: TRI/TRL-3545-S/S
Precio normal $13448

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Descripción

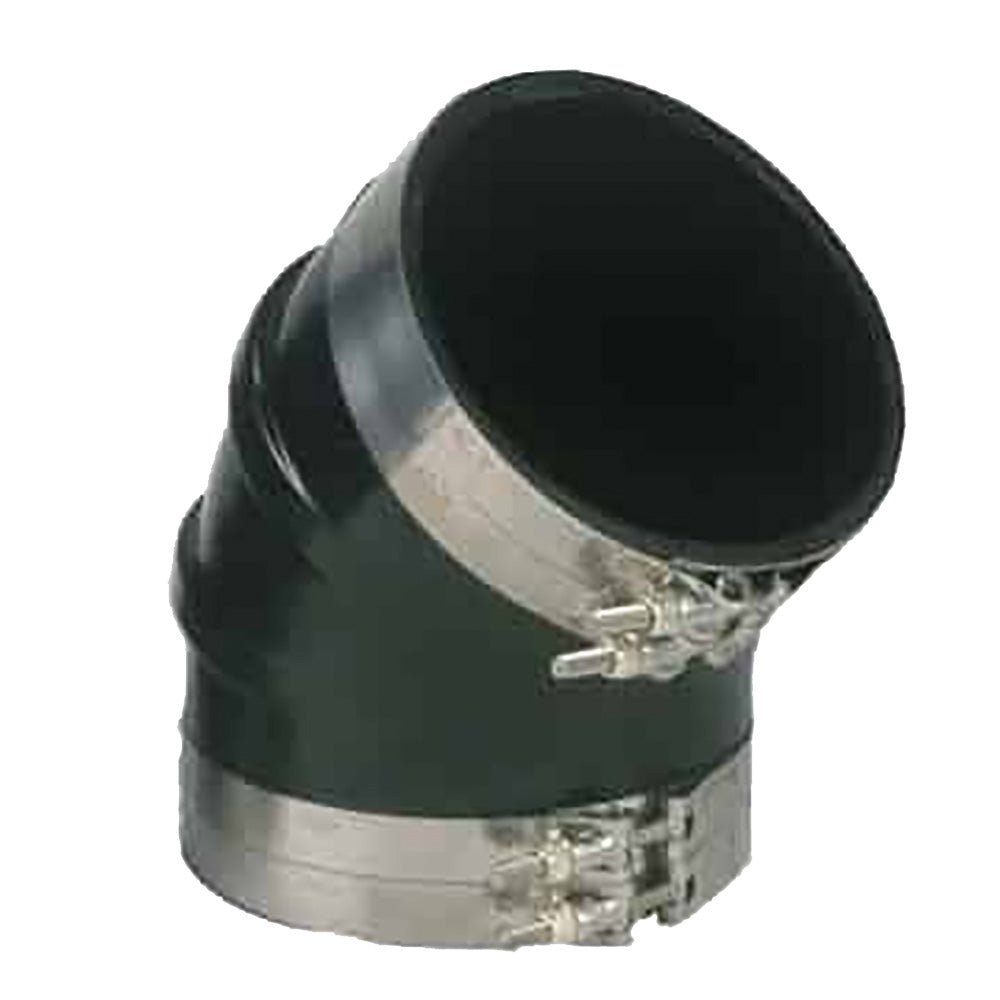

3-1/2" ID 45-Degree EPDM Black Rubber Molded Wet Exhaust Elbow with 4 T-Bolt Clamps

Trident EPDM marine wet exhaust connections are molded of high-temperature black EPDM rubber with a smooth bore and cover; except elbows of 6” I.D. or bigger have molded reinforcing ribs on the outside.

Features:

  • Four stainless steel clamps are included
  • This elbow has excellent resistance to ozone, salt water, diesel fumes and splashes, cold, heat, and aging
  • Exceeds (SAE J2006-R1, and ABYC & NMMA P-1 exhaust standards)
  • Black high-temp EDPM rubber

Construction:

  • Color: Black
  • Reinforcement: Reinforcing ribs on 6” I.D. and above
  • Temperature Range: up to 250°F (121°C)

Specifications

Identification

MPN TRL-3545-S/S
Barcode 704917001500

Physical

Inner Diameter (inch) 3.5” / (mm) 88.9
Weight (Lb/Ea) 0.7 / (Kg/Ea) 0.32

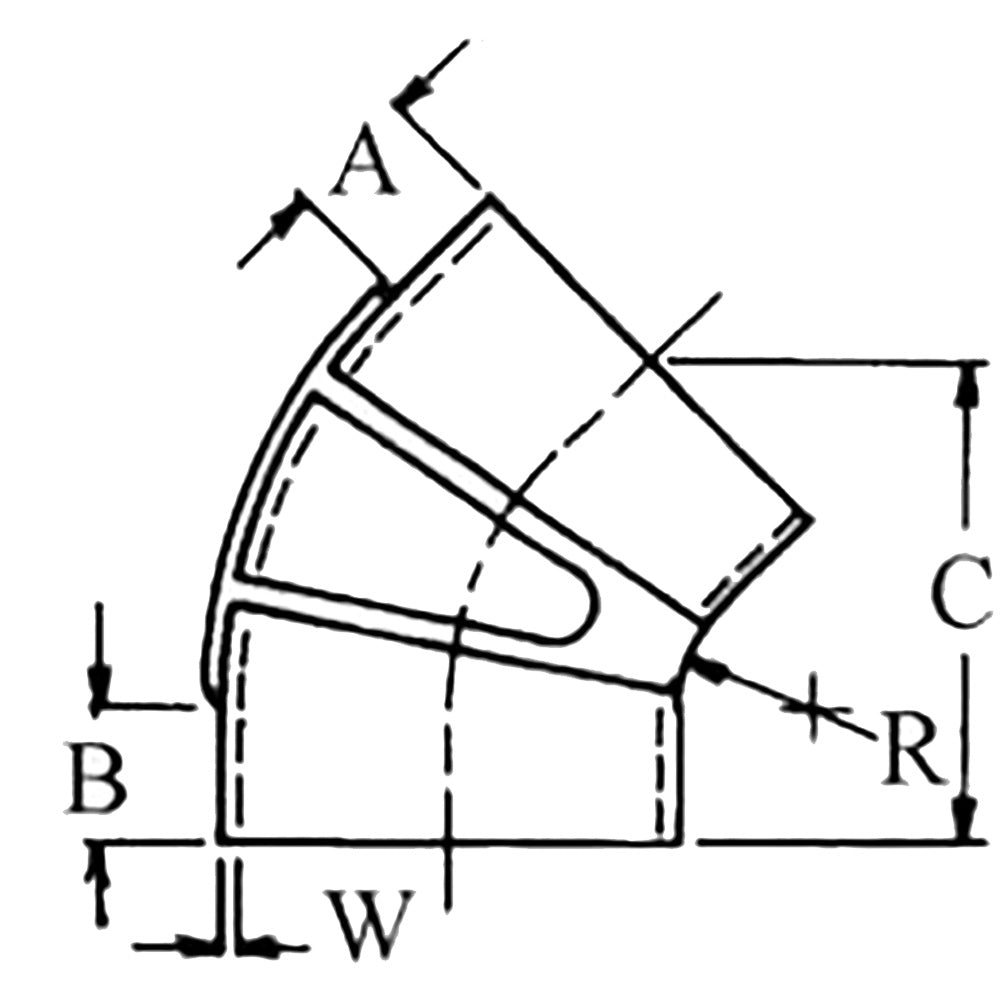

General

Outer Diamter (inch) 4.0" / (mm) 101.6
A (inch) 1.5” / (mm) 38.1
B (inch) 1.5” / (mm) 38.1
C (inch) 5.5” / (mm) 139.7
W (inch) 0.25” / (mm) 6.35
Elbow Degree 45 degrees

Reseñas (0)

In The Box

In The Box:

Package Dimensions:

8" x 8" x 7"

Available Method: Ground
