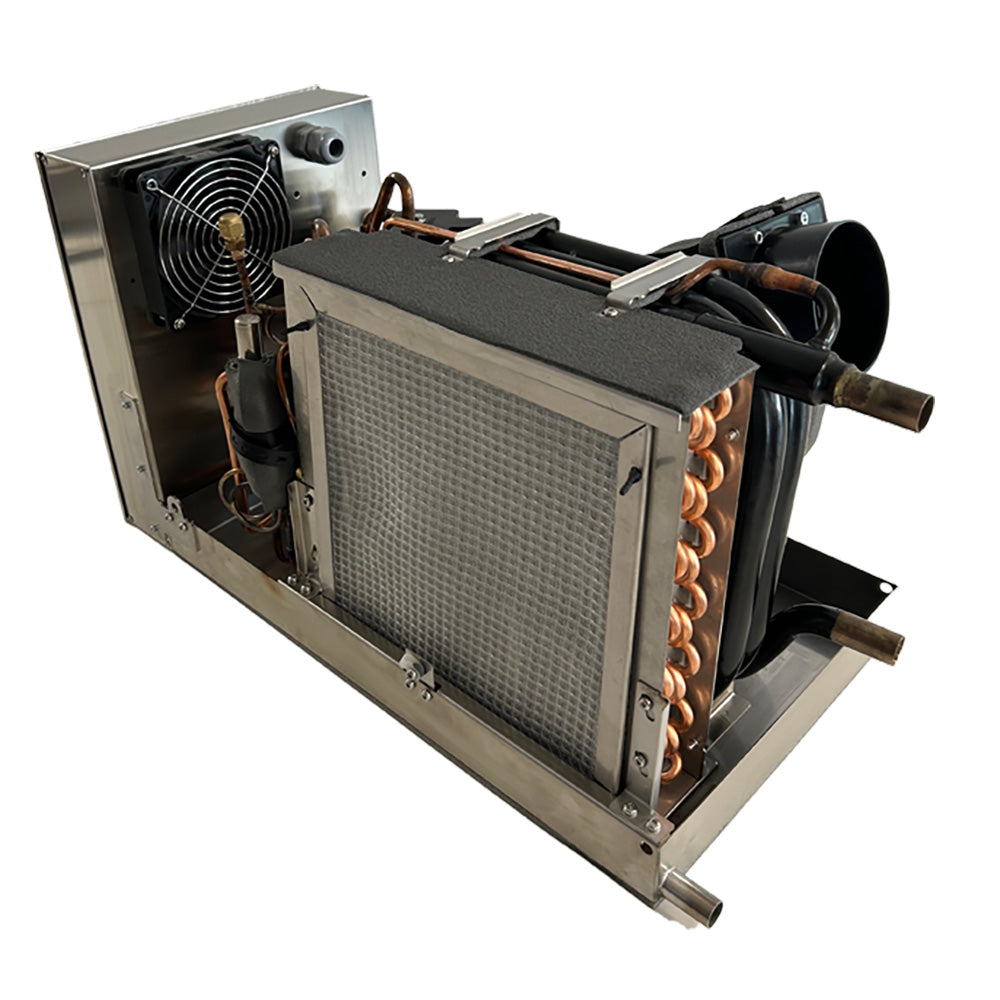

i09 9,000 BTU 24V DC Variable Speed Smart Marine Air Conditioner with Reverse-Cycle Heat
The Velair compact DC air conditioning units are powered directly by 24 volts from the boat’s battery bank, without the need for a generator or inverter.
VSD Inverter Smart technology offers the advantages of eliminating power peaks at start-up, maximum energy efficiency, and significantly reduced compressor noise and vibration during operation.
The twin rotary compressor with a brushless permanent magnet synchronous motor (PMSM) varies its rotation speed to continuously adapt to the difference between the set/requested temperature and the ambient temperature detected by the sensor integrated into the control panel. This ensures highly precise room temperature control in all conditions, with minimal noise and vibration. The outgoing air flow is kept constant thanks to DC brushless variable speed technology fans, which can be rotated for easier on-board installation.
Specifications
Specifications
Identification
| MPN | 26255G |
|---|
Physical
| Cooling Capacity Range | 2500-9000 BTU/h |
|---|---|
| Air Exit Duct Diameter | 4" |
| Return Grill Minimum Size | 62 in2 |
| Supply Grill Minimum Size | 39 in2 |
| Weight | 55.1 LBS |
| Cooling unit dimensions (with electric box) | 22.5" x 12.6" x 12.6" |
| Control Panel Cable Length | 26'/8m |
Electrical
| Power Supply Voltage | 24 Volts Direct Current (24VDC) |
|---|---|
| Power Consumption Cooling (Max) | 22 Amps |
| Power Consumption Eco Mode | 9 Amps |
General
| Max Air Flow | 200 CFM |
|---|---|
| Minimum Seawater Flow | 3.2 GPM |
| Refrigerant | R32 (330g) |
