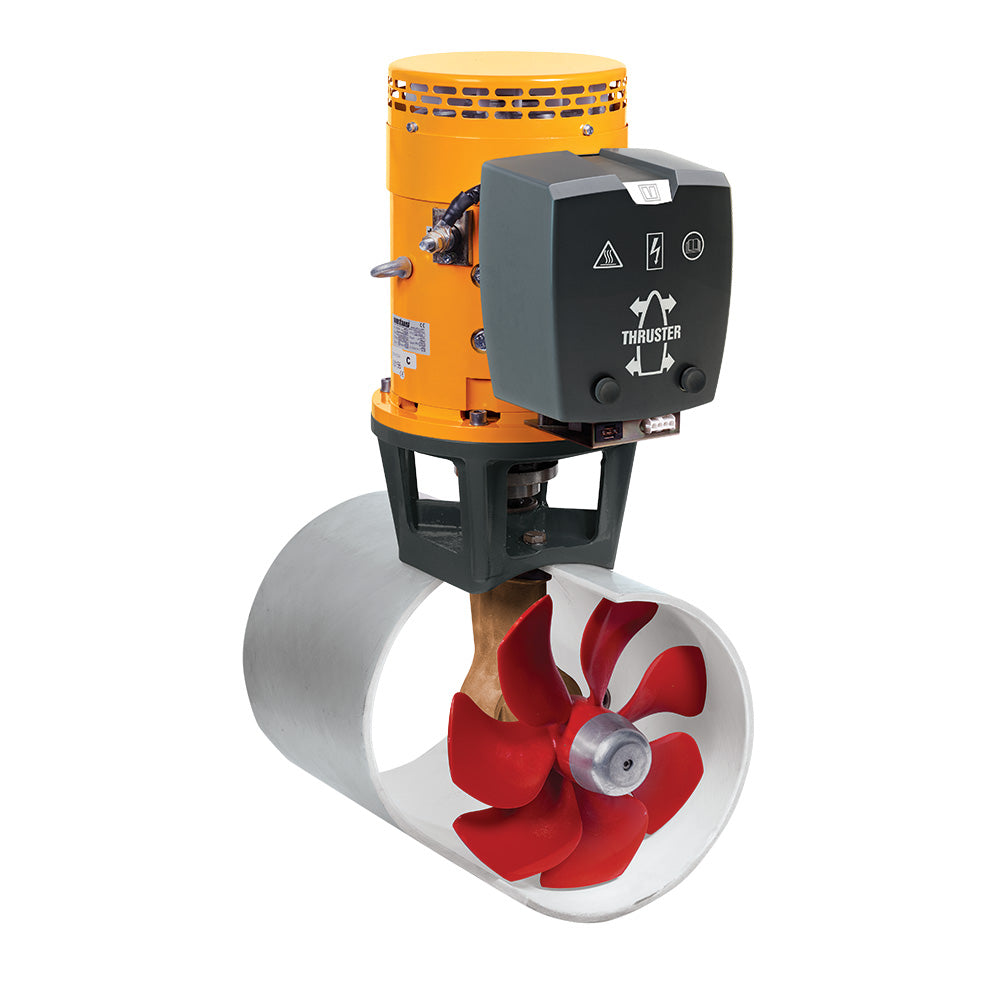

Bow Thruster - 220 KGF & 24V
VETUS bow thruster with 220 KGF thrust force, suitable for boats from 19.5 to 26 meters in length. 24 Volt version.
Features:
- Advantages of VETUS bow thrusters
- A single propeller creates less flow disturbance in the tunnel
- The VETUS unique propeller blade design minimizes cavitation noise
- Spiral gears minimize transmission noise
- The use of a flexible coupling between the tailpiece and motor eliminates vibration
- All VETUS systems use a streamlined tailpiece for optimum flow
- A strong synthetic propeller eliminates corrosion and reduces weight
- Systems are easy to install and are supplied with clear installation and operation instructions
- VETUS systems use a new line of high-quality aluminum control panels that are interchangeable with older panels
- All VETUS maneuvering systems meet the EMC requirements
Specifications
Specifications
Identification
| MPN | BOW22024D |
|---|
General
| Thrust (KGF) | 220 |
|---|---|
| Continuous Operating Time (min) | 2,5 |
| Ignition Protected | No |
| Proportional | No |
| Retractable | No |
| Extended Runtime | No |
Electrical
| Power (kW) | 11 |
|---|---|
| Voltage (V) | 24 |
| Current Consumption (A) | 760 |
Physical
| Internal Tunnel Diameter (mm) | 300 |
|---|---|
| Weight (kg) | 68 |
