Victron GX-IO Extender 150
Precio de venta
$12495
Precio normal
$14700
Total:
Precio unitario
SKU:
VIC/BPP900800150
Precio de venta
$12495
Precio normal
$14700
Total:
Precio unitario
Descripción
Descripción

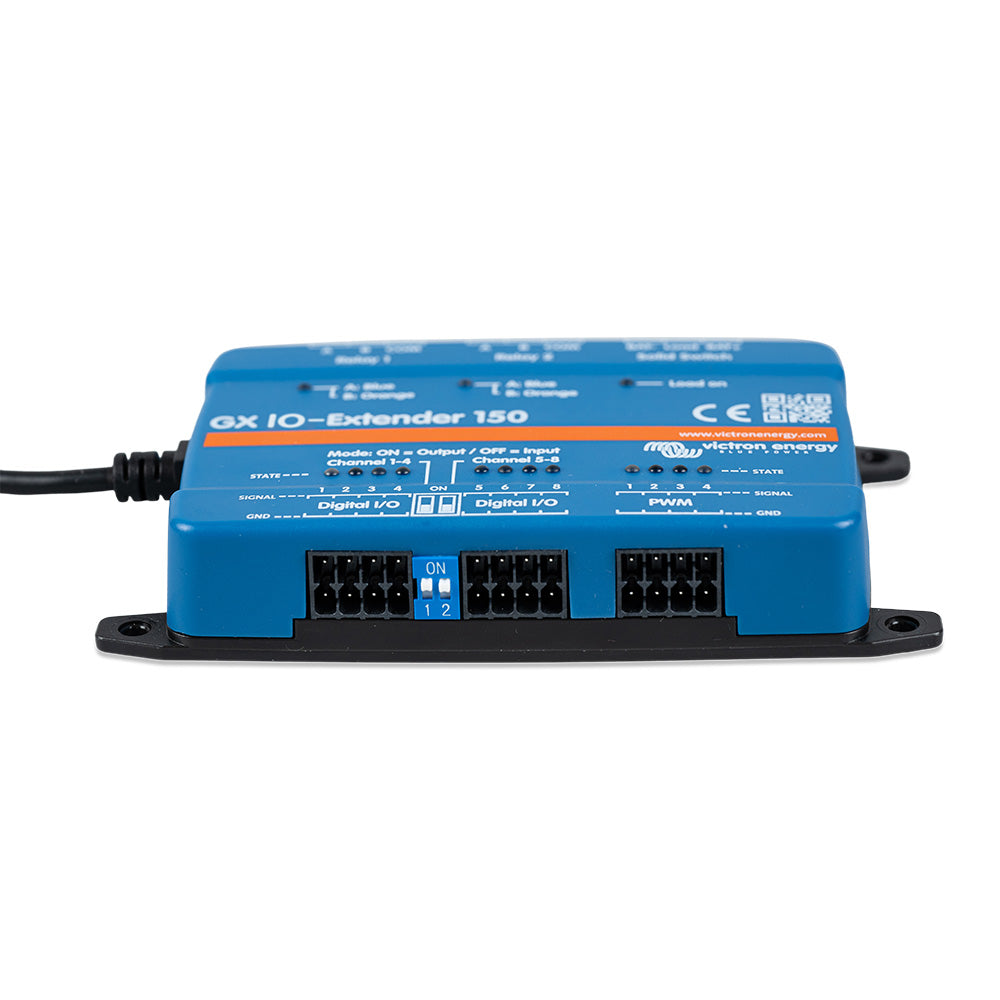

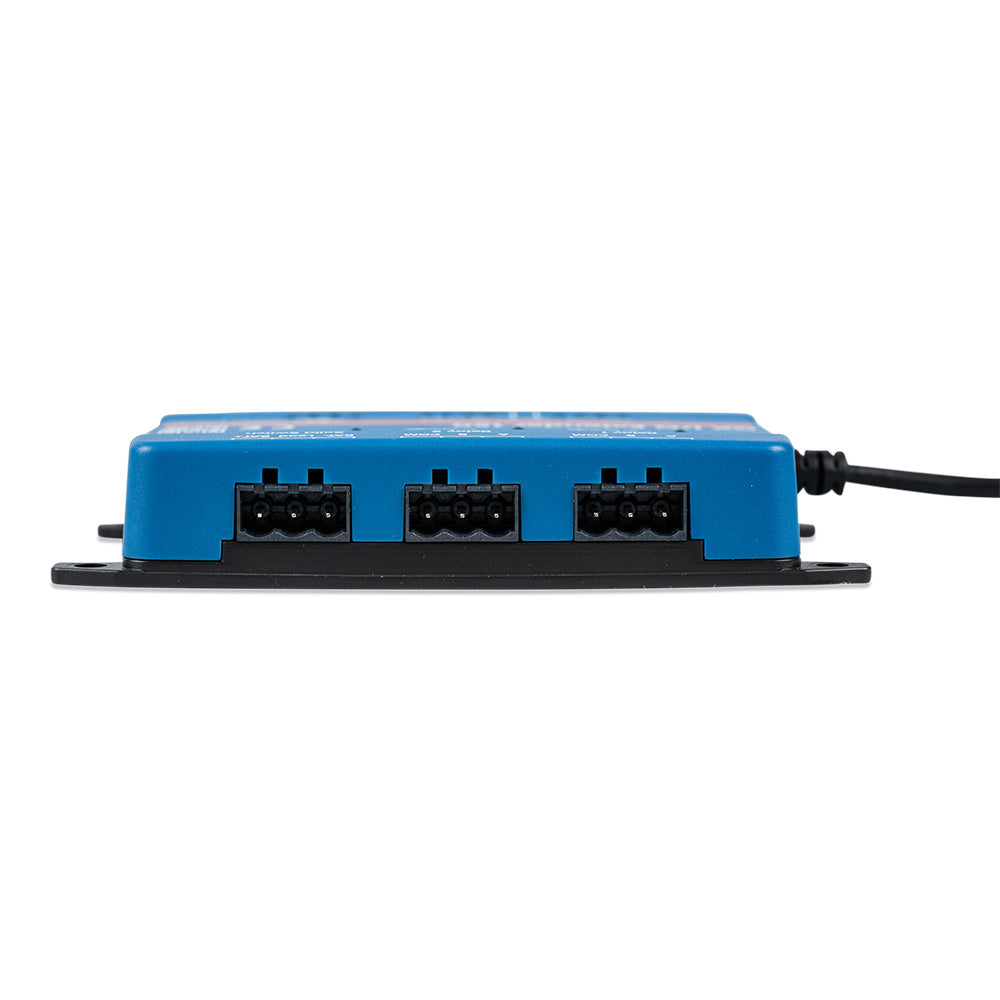

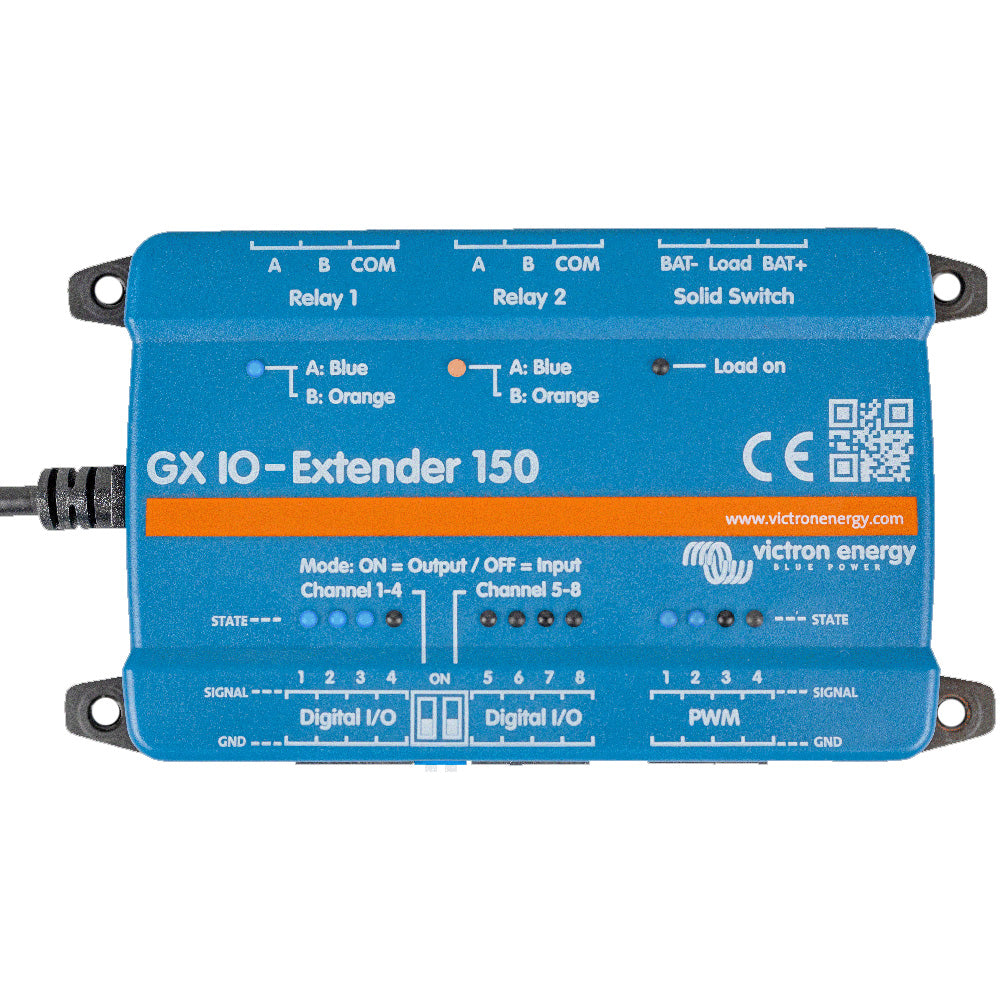

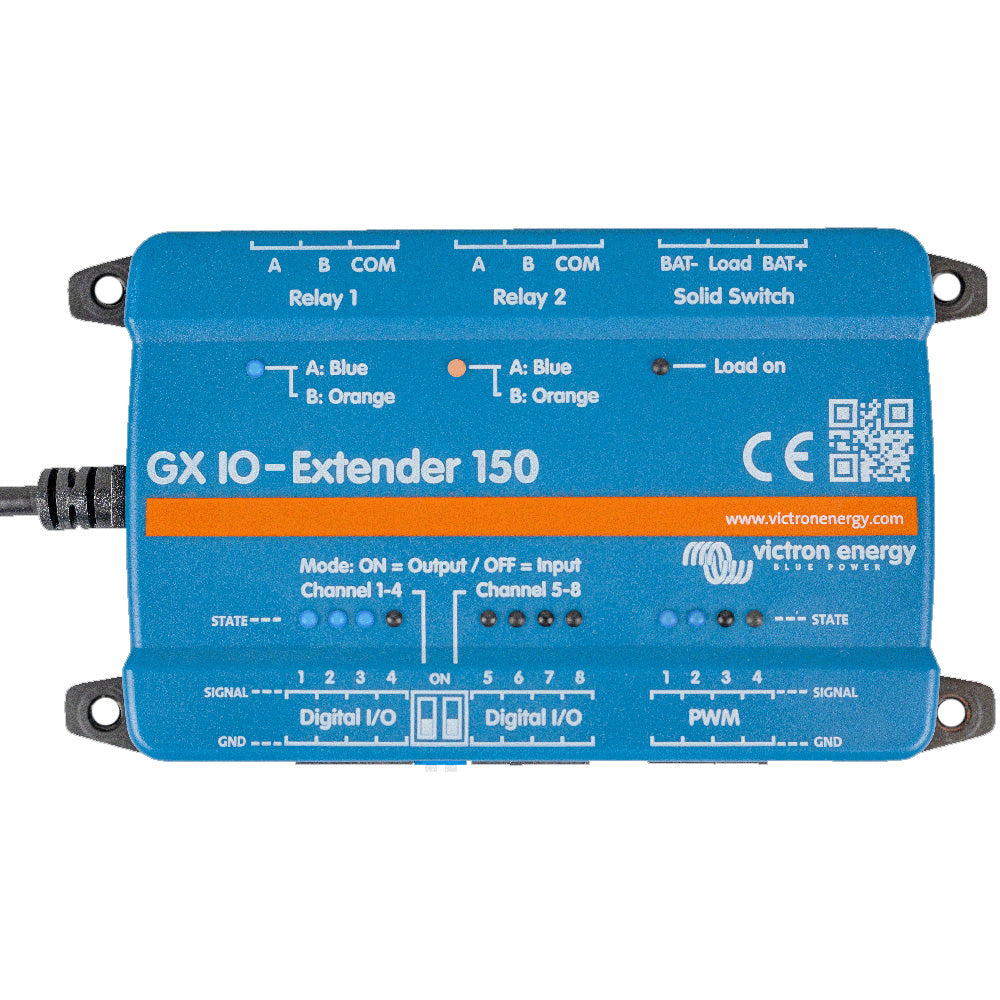

GX-IO Extender 150
The GX IO-Extender 150 enhances the input and output (I/O) capabilities of a GX device, enabling seamless integration with additional sensors, controls, and external devices. It connects via USB, which also serves as its power source, providing a simple and efficient expansion solution. The device can be controlled using Node-RED on the GX device as well as the Switch pane in the user interface.
Features:
- 8 digital I/Os, configurable as 8 inputs, 8 outputs, or 4 inputs + 4 outputs
- PWM output for precise control applications
- Two latching relays for low-power switching
- A solid switch for controlling DC loads that can be resistive, capacitive, or inductive (such as the coil of a high-power contactor)
- Pluggable spring terminals for fast and secure connections
- Configurable via Node-RED for easy automation and custom logic
Specifications
Specifications
Identification
| MPN | BPP900800150 |
|---|---|
| Barcode | 8719076062882 |
Electrical
| Digital I/O | 8 digital I/Os, configurable as inputs or outputs in two groups of 4 |
|---|---|
| PWM Outputs | 4 channels, 0-5V, 8-bit resolution at 1.5625kHz |
| Relays | 2 bistable (latching) relays - DC: 3A@30V / 1A@60V / 0.3A@220V (90W max); AC: 2A@60V / 1A@125V / 0.5A@250V (125W max) |
| Solid Switch | 70VDC max, 4A max load current |
| Power Supply | USB powered, <100mW idle, 1W max (<200mA @ 5V) |
Physical
| Dimensions | 122.5 x 23.3 x 23.3mm |
|---|---|
| Connector Type | Pluggable spring terminals, USB to GX device |
| Operating Temperature | -20 to +50°C |
Compatibility
| Compatible With | Victron GX devices (Cerbo GX and others running Venus OS Large / Node-RED) |
|---|
