Victron Lynx Shunt VE. Can
Descripción
Descripción

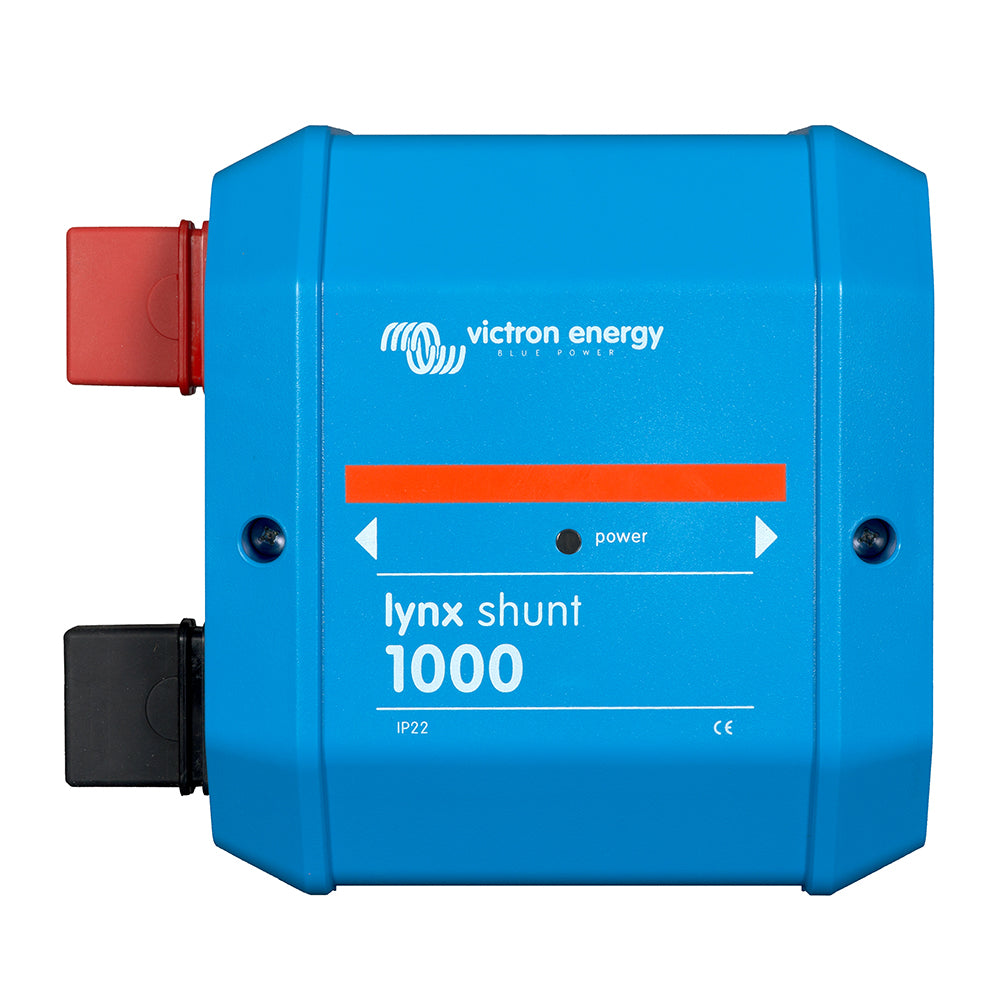

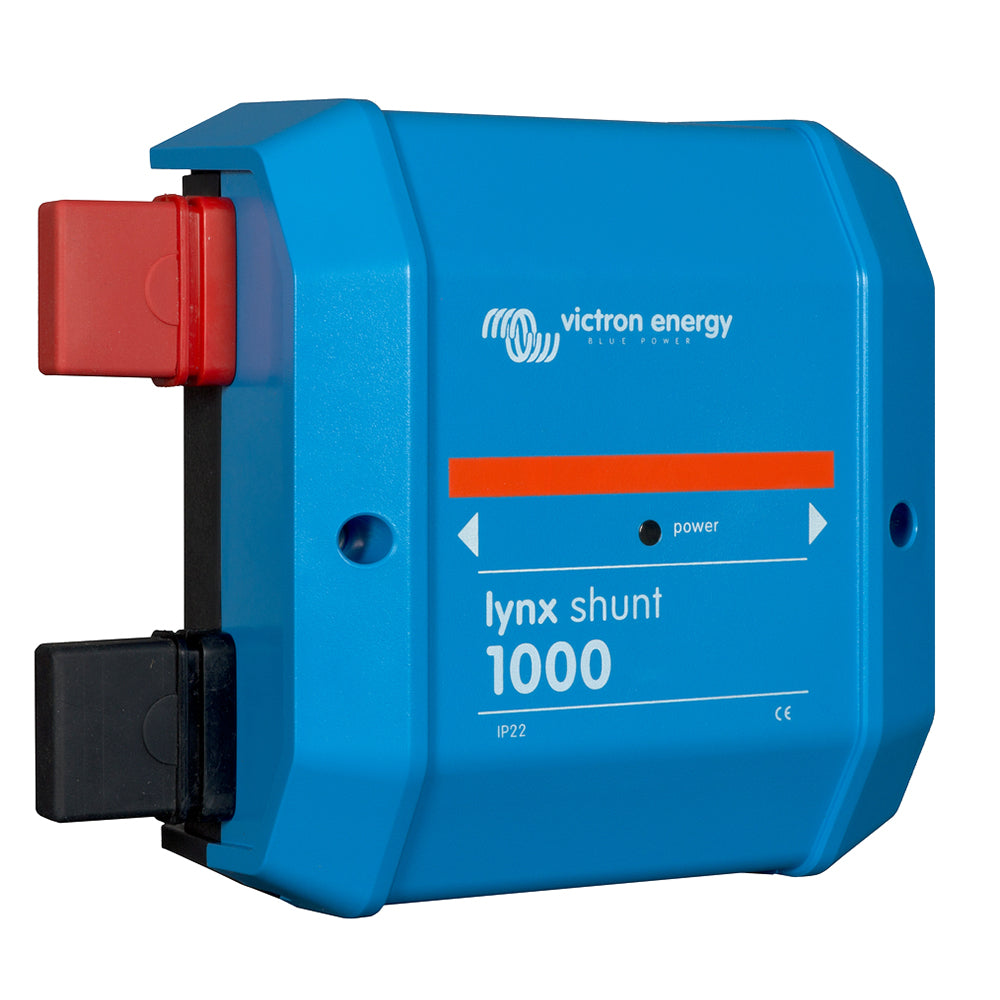

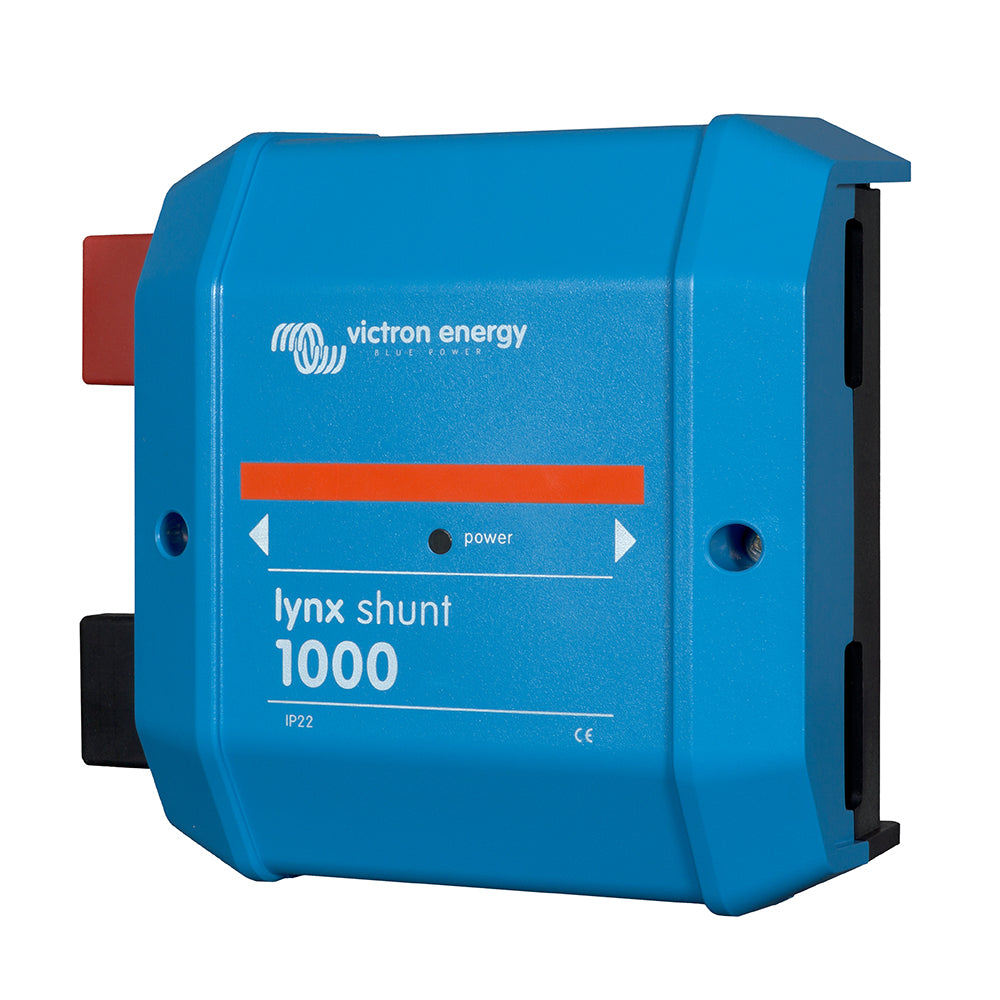

Lynx Shunt VE. Can

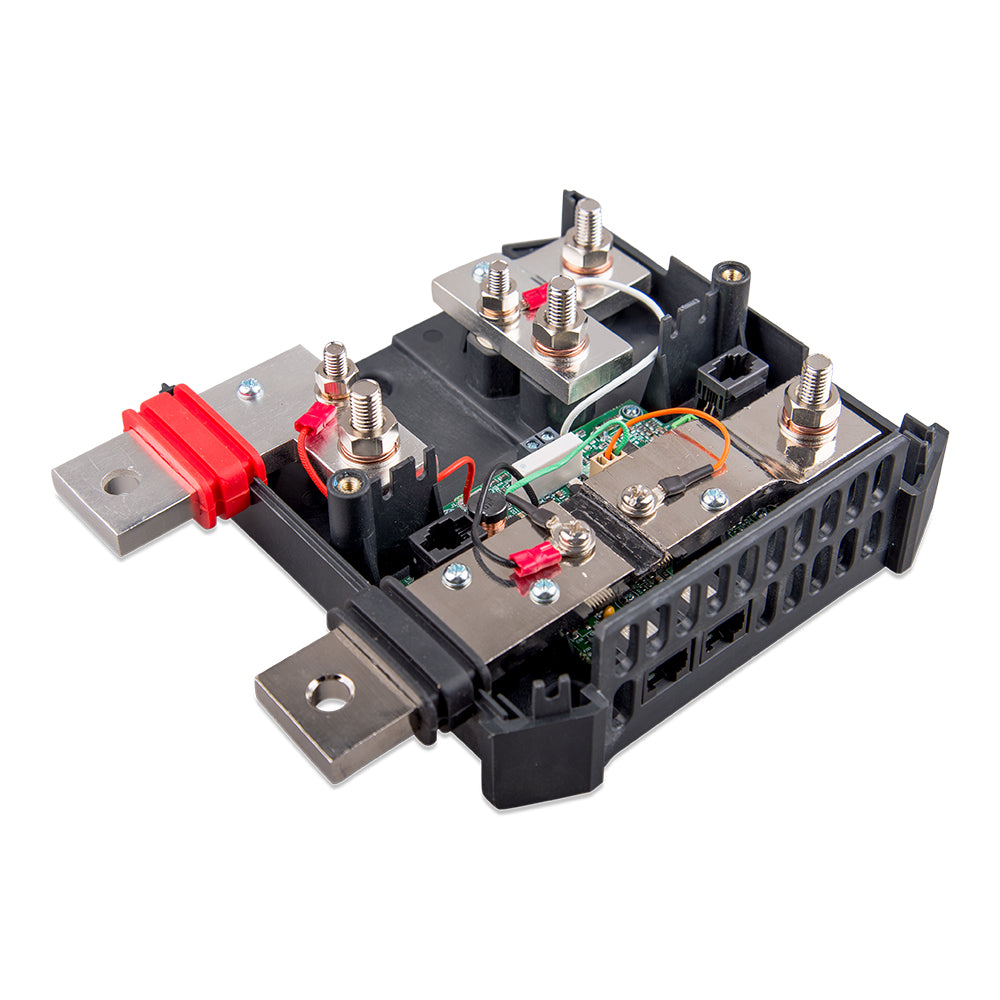

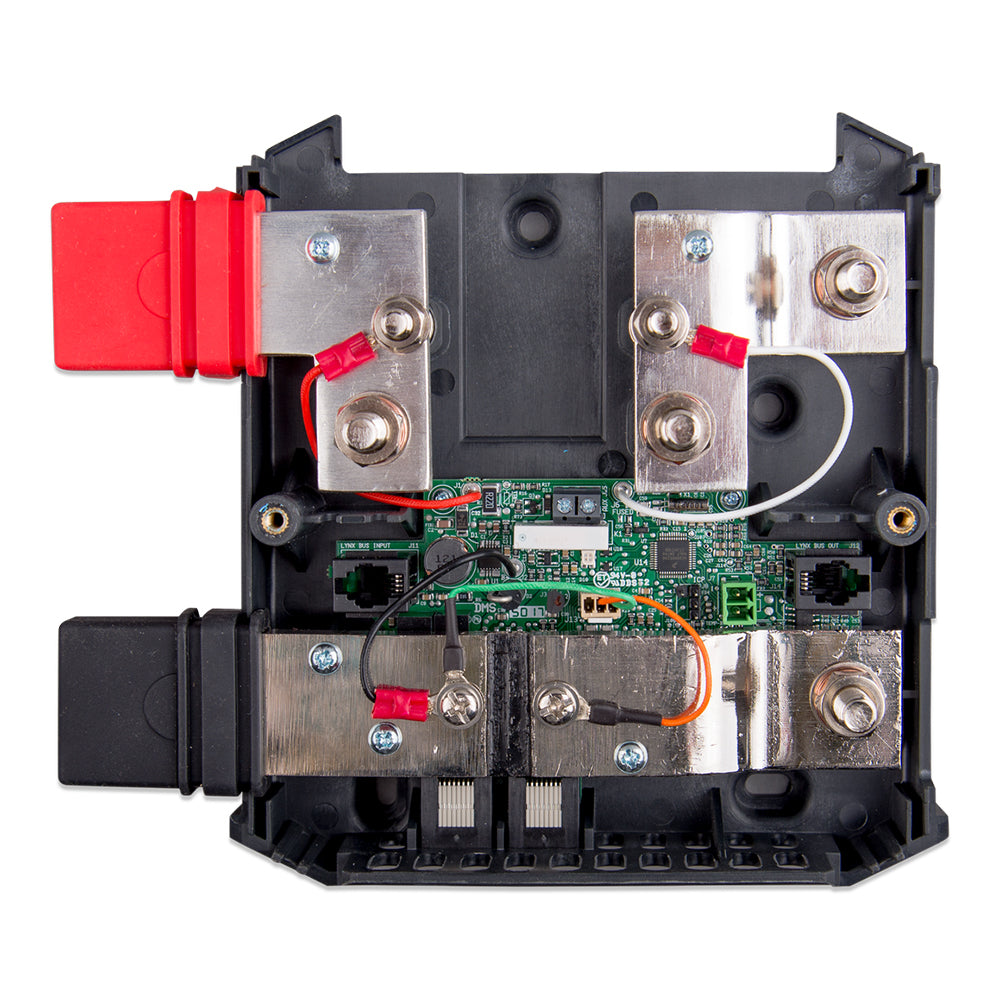

The Lynx Shunt VE.Can is an intelligent 1000A shunt with location for a fuse (not included), the built in battery monitor accurately monitors the state of charge of your battery. The Lynx shunt contains a positive bus-bar with space to mount a CNN fuse and a negative bus-bar with a shunt. It also contains battery monitoring electronics. The Lynx shunt can send via the VE.CAN bus battery monitoring information to a CCGX or VGX or to a third party CANbus monitoring system, such as a NMEA2000. The CCGX, VGX or third party display acts as battery monitor display and is also used to set up the built-in battery monitor.
The Lynx shunt is available with a VE.Can connection.
Fuse CIP140325000 - Fuse CNN 325A/80V for Lynx shunt, or alternatively a CNN fuses by Littlefuse can be used.
Please contact your dealer for any returns, repairs or support issues related to this product.
Specifications
Specifications
Identification
| MPN | LYN040102100 |
|---|---|
| Barcode | 8719076022602 |
Electrical
| Current Rating | 1000A DC continuous |
|---|---|
| Supply Voltage Range | 9 - 70 VDC |
| Supported System Voltages | 12V, 24V, or 48V |
| Power Consumption | 60mA @12V, 33mA @24V, 20mA @48V |
Physical
| Enclosure Dimensions | 190 x 180 x 80 mm |
|---|---|
| Busbar Dimensions (HxW) | 8 x 30 mm |
| Weight | 1.4 kg |
| Protection Rating | IP22 |
| Operating Temp Range | -40 to +60°C |
Connectivity
| Interface | VE.Can via RJ45 (2x terminators included), for GX device monitoring/setup |
|---|
