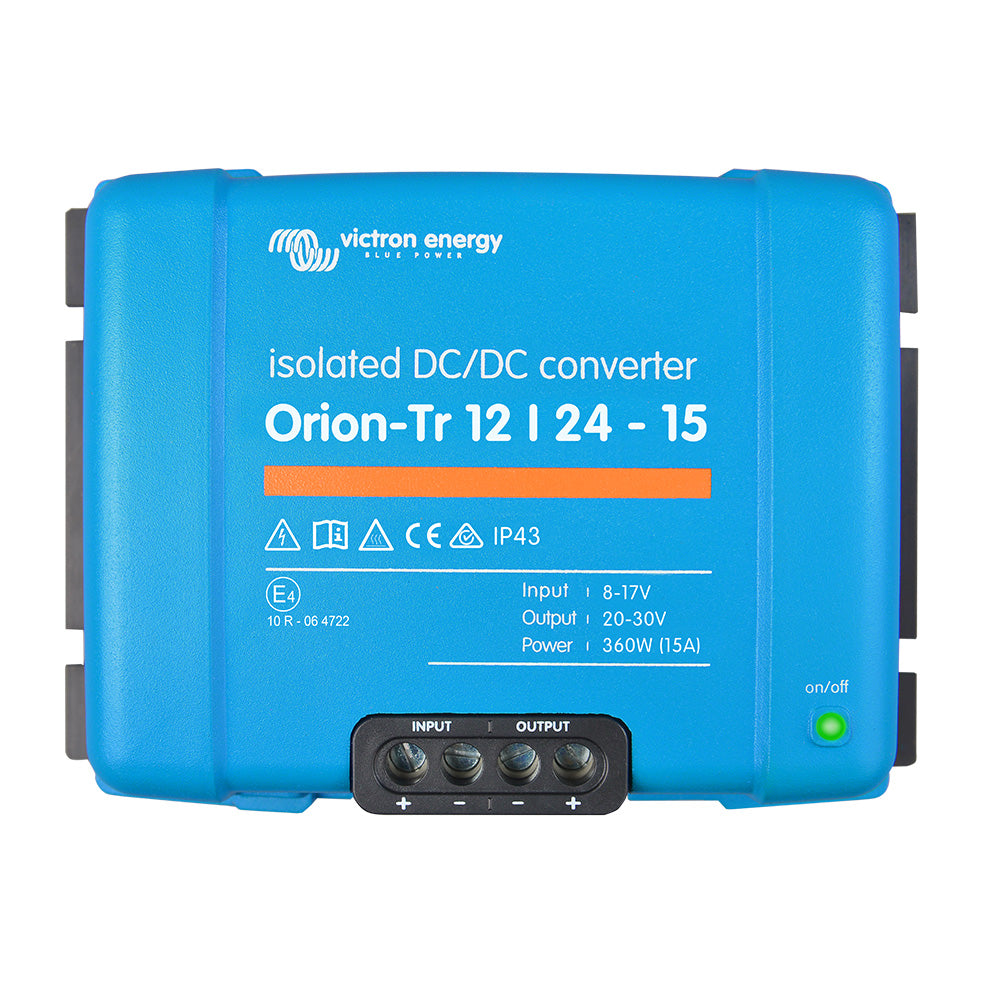

Victron Orion-Tr 12/24-15A (360W) Isolated DC-DC Converter
Precio de venta
$20145
Precio normal
$23700
Total:
Precio unitario
SKU:
VIC/ORI122441110
Precio de venta
$20145
Precio normal
$23700
Total:
Precio unitario
Descripción
Descripción
Orion-Tr 12/24-15A (360W) Isolated DC-DC Converter
Features:
- Remote on/off terminal - The remote on/off terminal eliminates the need for a high-current switch in the input wiring. The remote on/off can be operated with a low power switch or by, for example, the engine run/stop switch (see manual).
- All models are short-circuit proof and can be paralleled to increase output current. An unlimited number of units can be connected in parallel.
Specifications
Specifications
Identification
| MPN | ORI122441110 |
|---|---|
| Barcode | 8719076038832 |
General
| Brand | Victron Energy |
|---|---|
| Model | Orion-Tr 12/24-15A Isolated DC-DC Converter |
| SKU | VIC/ORI122441110 |
Electrical
| Input Voltage Range | 8 - 17V |
|---|---|
| Output Voltage (nominal) | 24.2V |
| Continuous Output Current @ 40°C | 15A |
| Continuous Power @ 25°C | 430W |
| Efficiency | 88% |
| Operating Temperature | -20 to +55°C |
Physical
| Dimensions (LxWxH) | 130 x 186 x 70mm |
|---|---|
| Weight | 1.6kg (3.5 lb) |
