Victron Orion-TR DC-DC Converter - 24 VDC to 12 VDC - 20AMP Isolated

Name: Victron Orion-TR DC-DC Converter - 24 VDC to 12 VDC - 20AMP Isolated
Brand: Victron Energy
SKU: VIC/ORI241224110
Price: 113.90 USD
Availability: InStock

SKU: VIC/ORI241224110

$113⁹⁰ $134⁰⁰

Same-Day Shipping Checking cutoff…

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Descripción

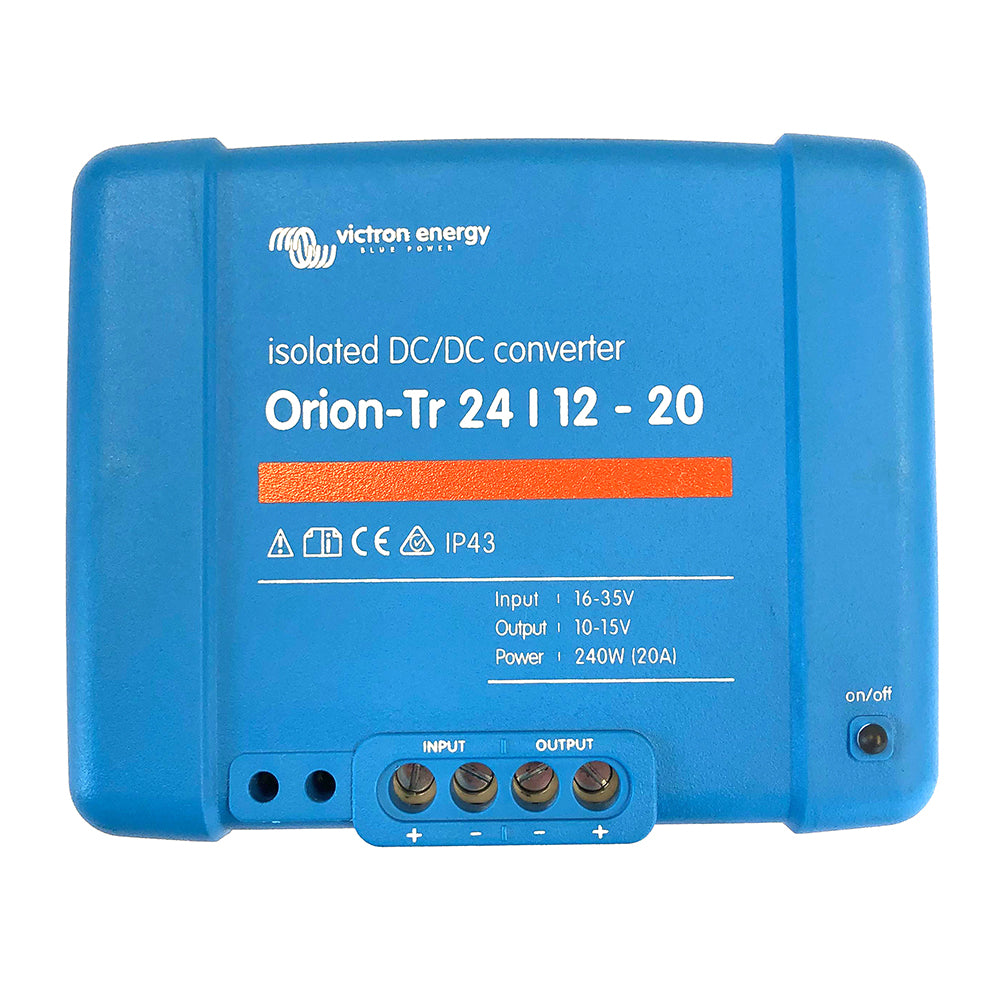

Orion-TR 24/12-20A (240W) Isolated DC-DC Converter

Isolated Model - separate in and out (-) leads

Remote On/Off Terminal

The remote on/off terminal eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or for example the engine run/stop switch.

All Models Are Short Circuit Proof and Can Be Paralleled to Increase Output Current

An unlimited number of units can be connected in parallel.

High Temperature Protected

The output current will reduce at high ambient temperatures.

IP43 Protection

When installed with the screw terminals oriented downward.

Screw Terminals

No special tools are needed for installation.

Input Fuse (not replaceable)

On 12 V and 24 V input models only.

Adjustable Output Voltage

Not intended for battery charging (consider using an Orion-Tr Smart for battery charging).

Specifications

Identification

MPN	ORI241224110
Barcode	8719076035251

General

Brand	Victron Energy
Model	Orion-Tr 24/12-20 DC-DC Converter Isolated (240W)
SKU	VIC/ORI241224110
MPN	ORI241224110
Barcode	8719076035251

Electrical

Input Voltage Range	16 - 35V DC
Output Voltage (Nominal)	12.2V (adjustable 10-15V)
Continuous Output Current @ 40°C	20A
Continuous Output Power @ 40°C	240W
Efficiency	88%
Galvanic Isolation	200V DC

Physical

Dimensions (HxWxD)	130 x 186 x 70mm
Weight	1.3kg
Enclosure	IP43 (screw terminals facing down)
Operating Temperature	-20 to +55°C (derates 3%/°C above 40°C)
