Victron Orion-TR DC-DC Converter - 24 VDC to 24 VDC - 280W - 12AMP ...
Descripción
Descripción

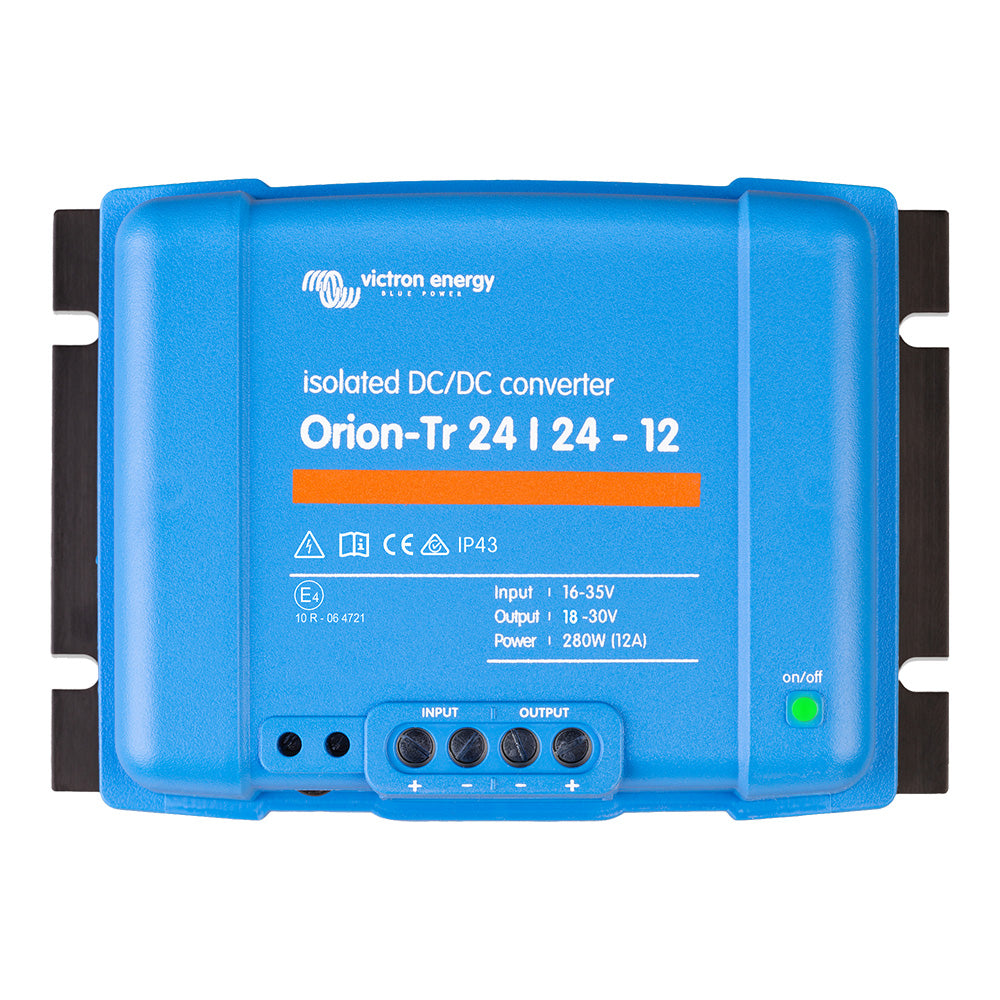

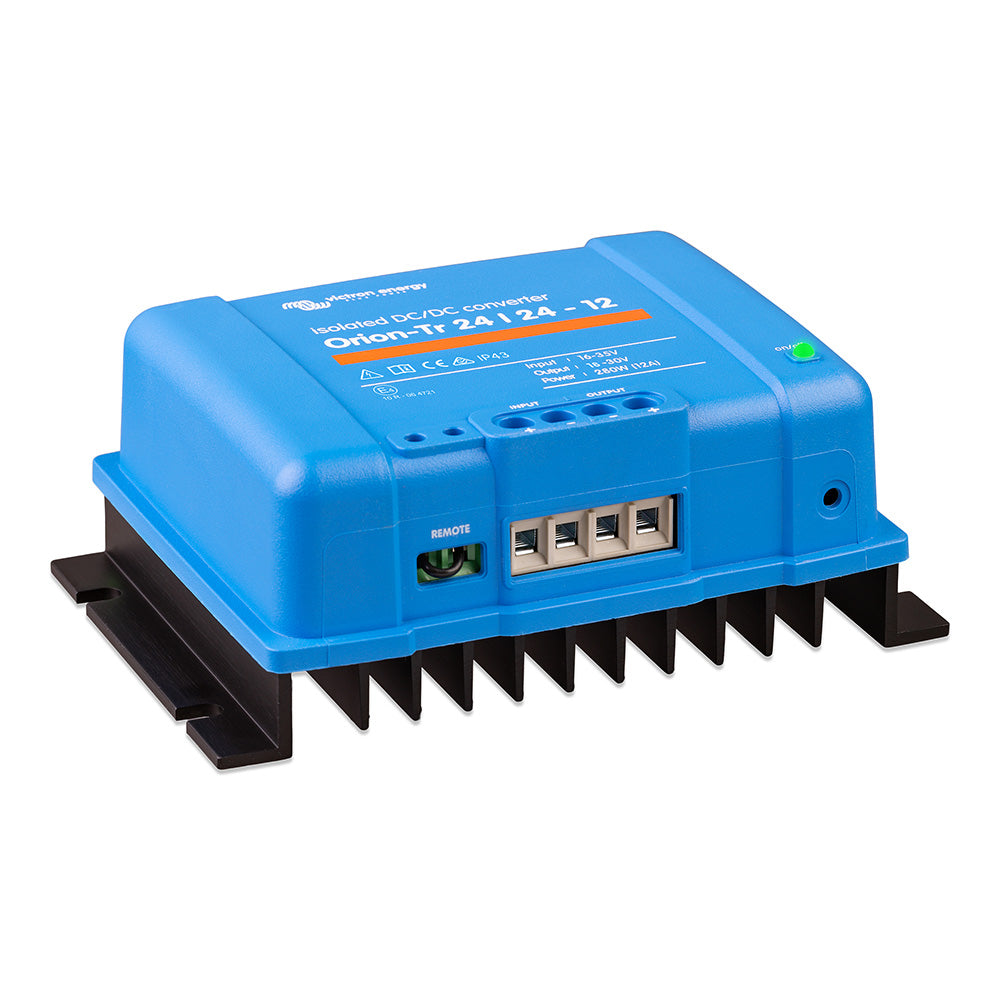

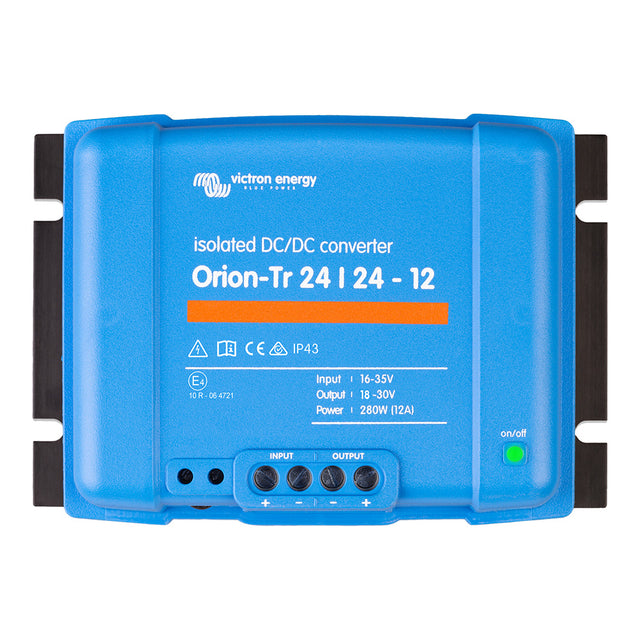

Orion-TR 24/24-12A (280W) Isolated DC-DC Converter
Isolated Model - separate in and out (-) leads
Remote On/Off Terminal
The remote on/off terminal eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or for example the engine run/stop switch.
All Models Are Short Circuit Proof and Can Be Paralleled to Increase Output Current
An unlimited number of units can be connected in parallel.
High Temperature Protected
The output current will reduce at high ambient temperatures.
IP43 Protection
When installed with the screw terminals oriented downward.
Screw Terminals
No special tools are needed for installation.
Input Fuse (not replaceable)
On 12 V and 24 V input models only.
Adjustable Output Voltage
Not intended for battery charging (consider using an Orion-Tr Smart for battery charging).
Specifications
Specifications
Identification
| MPN | ORI242428110 |
|---|---|
| Barcode | 8719076035268 |
General
| Brand | Victron Energy |
|---|---|
| Model | Orion-Tr 24/24-12 (280W) Isolated DC-DC Converter |
| SKU | VIC/ORI242428110 |
Electrical
| Input Voltage Range | 16 - 35V DC |
|---|---|
| Output Voltage | 24.2V nominal (adjustable 18-30V, ±0.2V) |
| Output Current | 12A continuous |
| Continuous Power | 280W |
| Efficiency | 89% |
| Galvanic Isolation | 200VDC input/output/case |
Physical
| Dimensions (HxWxD) | 130 x 186 x 70mm |
|---|---|
| Weight | 1.3kg |
| Operating Temperature | -20 to +55°C |
