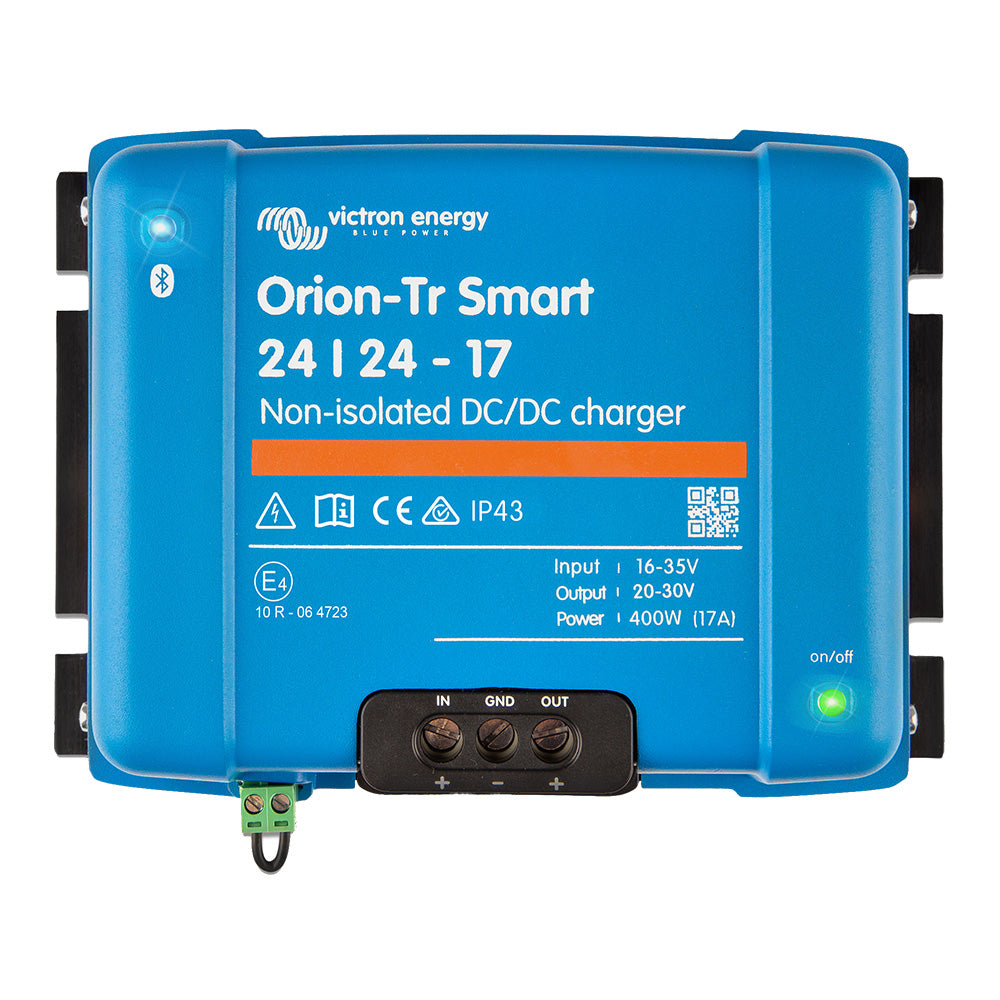

Orion-TR Smart Non-Isolated DC-DC Converter - 24 VDC to 24 VDC - 400W - 17AMP
The Orion-Tr Smart DC-DC charger is a professional DC-to-DC adaptive 3-stage charger with built-in Bluetooth.
Bluetooth Smart Enabled:
- Any Bluetooth-enabled smartphone, tablet, or other device can be used to monitor, change settings, and update the charger when new software features become available.
- Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the device list page without the need to connect to the product.
Fully Programmable:
- Battery charge algorithm (configurable) or fixed output.
- Smart alternator compatibility: engine running detection mechanism.
Adaptive 3-Stage Charge Algorithm: Bulk – Absorption – Float:
- For lead-acid batteries, it is important that during shallow discharges the absorption time is kept short to prevent overcharging of the battery. After a deep discharge, the absorption time is automatically increased to make sure that the battery is completely recharged.
- For lithium batteries, the absorption time is fixed (the default is 2 hours).
- Alternatively, a fixed output voltage can be chosen.
Remote On/Off:
A remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two-pole connector can be switched to battery minus (or the chassis of a vehicle, for example).
All Models Are Short Circuit Proof and Can Be Paralleled to Increase Output Current:
An unlimited number of units can be connected in parallel.
High Temperature Protected:
The output current will reduce at high ambient temperatures.
IP43 Protection:
When installed with the screw terminals oriented downward.
Screw Terminals:
No special tools are needed for installation.
Input fuse (not replaceable)
Specifications
Specifications
Identification
| MPN | ORI242440140 |
|---|---|
| Barcode | 8719076048985 |
Electrical
| Input Voltage Range | 20-35 V |
|---|---|
| Under Voltage Shut Down | 14 V |
| Under Voltage Restart | 15 V |
| Nominal Output Voltage | 24.2 V |
| Output Voltage Adjust Range | 20-30 V |
| Output Voltage Tolerance | +/- 0,2 V |
| Output Noise | 2 mV rms |
| Cont. Output Current at Nominal Output Voltage and 40 Degrees C | 17 A |
| Maximum Output Current (10 S) at Nominal Output Voltage | 25 A |
| Short Circuit Output Current | 40A |
| Cont. Output Power at 25 Degrees C | 480 W |
| Cont. Output Power at 40 Degrees C | 400 W |
| No Load Input Current (2) | < 80 mA |
| Standby Current | Less than 1 mA |
General
| Efficiency | 89% |
|---|---|
| Galvanic Isolation | 200 VDC between input, output, and case |
| Operating Temperature Range | -20 to +55 Degrees C (derate 3 % per °C above 40 °C) |
| Humidity | Max. 95 % non-condensing |
| DC Connection | Screw terminals |
| Maximum Cable Cross-Section | 16 mm² AWG6 |
| Protection Category | IP43 (electronic components), IP22 (connection area) |
| Safety Standards | EN 60950 |
| Immunity Standards | EN 61000-6-2, EN 61000-6-1, EN 55014-2 |
| Automotive Directive Standards | ECE R10-5 |
Physical
| Weight | 1,6 kg (3.5 lb) |
|---|---|
| Dimensions (H x W x D) | 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inch) |
