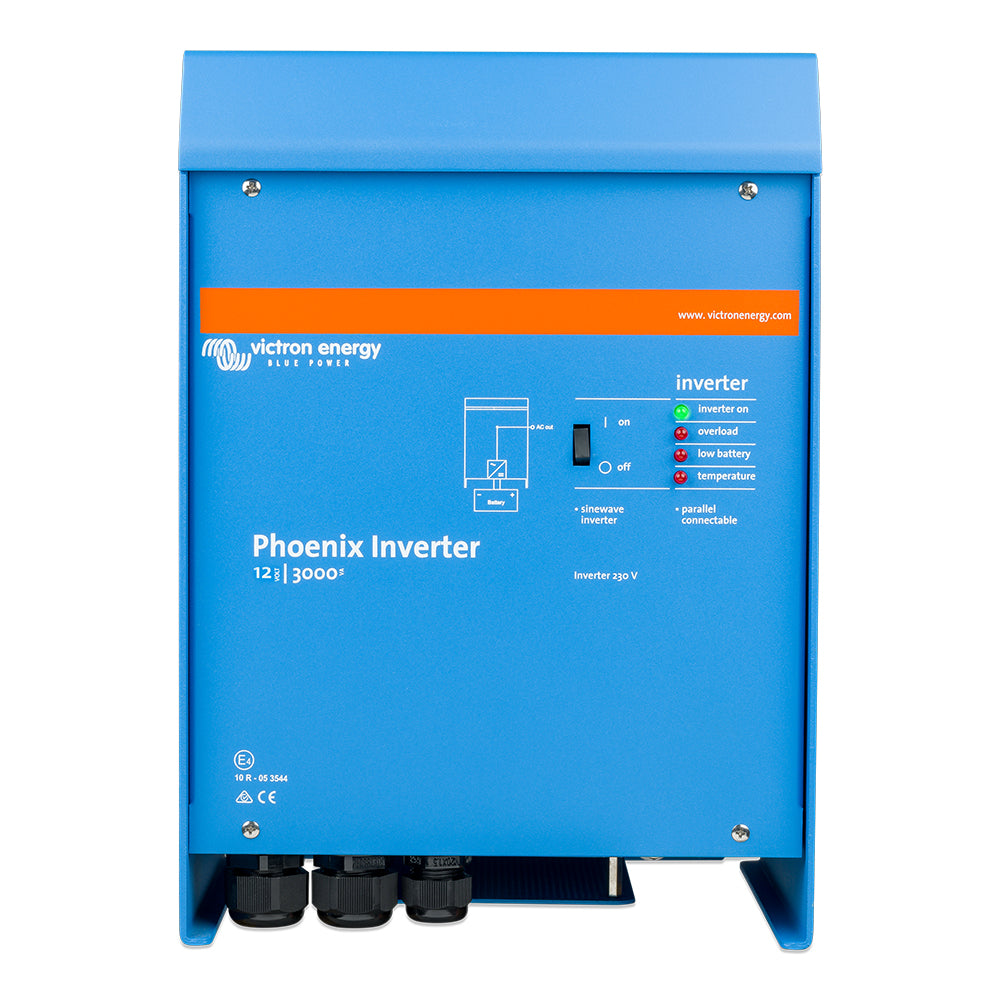

Phoenix Inverter 12/3000 - 230V - VE. BUS
Pure sine wave output, high peak power, and high efficiency. Combined high-frequency and line-frequency technologies ensure the best of both worlds.
SinusMax - Superior Engineering
Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimized efficiency but without compromising in performance. Employing hybrid HF technology, the result is a top-quality product with compact dimensions, light in weight, and capable of supplying power, problem-free, to any load.
Parallel & 3-Phase Operation Capability
Up to 6 Phoenix Inverters can operate in parallel to achieve higher power output. Six 24V 5000VA units, for example, will provide 24kW / 30kVA output power. Operation in a 3-phase configuration is also possible.
Please contact your dealer for any returns, repairs or support issues related to this product.
Specifications
Specifications
Identification
| MPN | PIN123020000 |
|---|---|
| Barcode | 8719076023579 |
General
| Brand | Victron Energy |
|---|---|
| Model | Phoenix Inverter 12/3000 230V VE.Bus |
| SKU | VIC/PIN123020000 |
Electrical
| Input Voltage Range | 9.5 - 17V DC |
|---|---|
| Output Voltage | 230VAC ±2% |
| Frequency | 50Hz ±0.1% |
| Continuous Power @ 25°C | 2500W (3000VA) |
| Peak Power | 6000W |
| Max Efficiency | 92% |
| No-load Power Consumption | 20W |
Physical
| Dimensions (HxWxD) | 362 x 258 x 218mm |
|---|---|
| Weight | 18kg |
| Enclosure | IP21, aluminium (blue RAL 5012) |
| Operating Temperature | -40 to +65°C (fan assisted cooling) |
