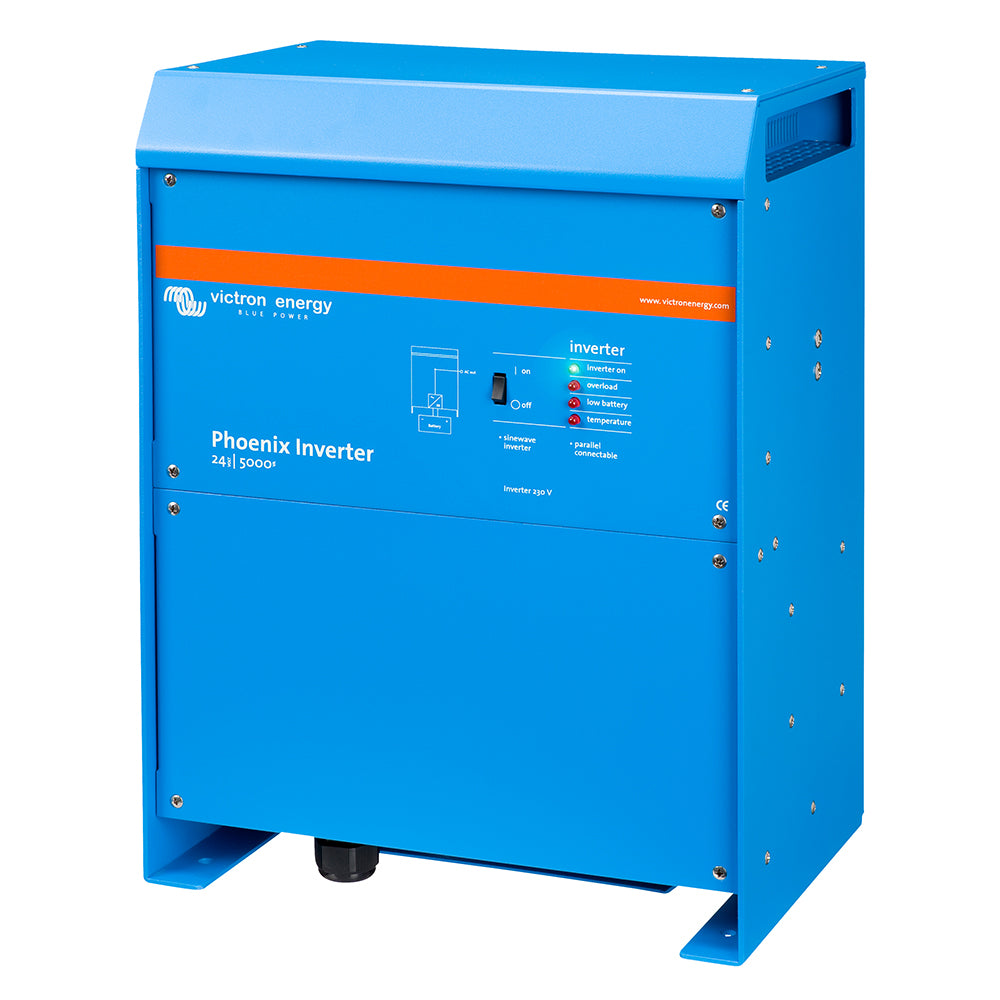

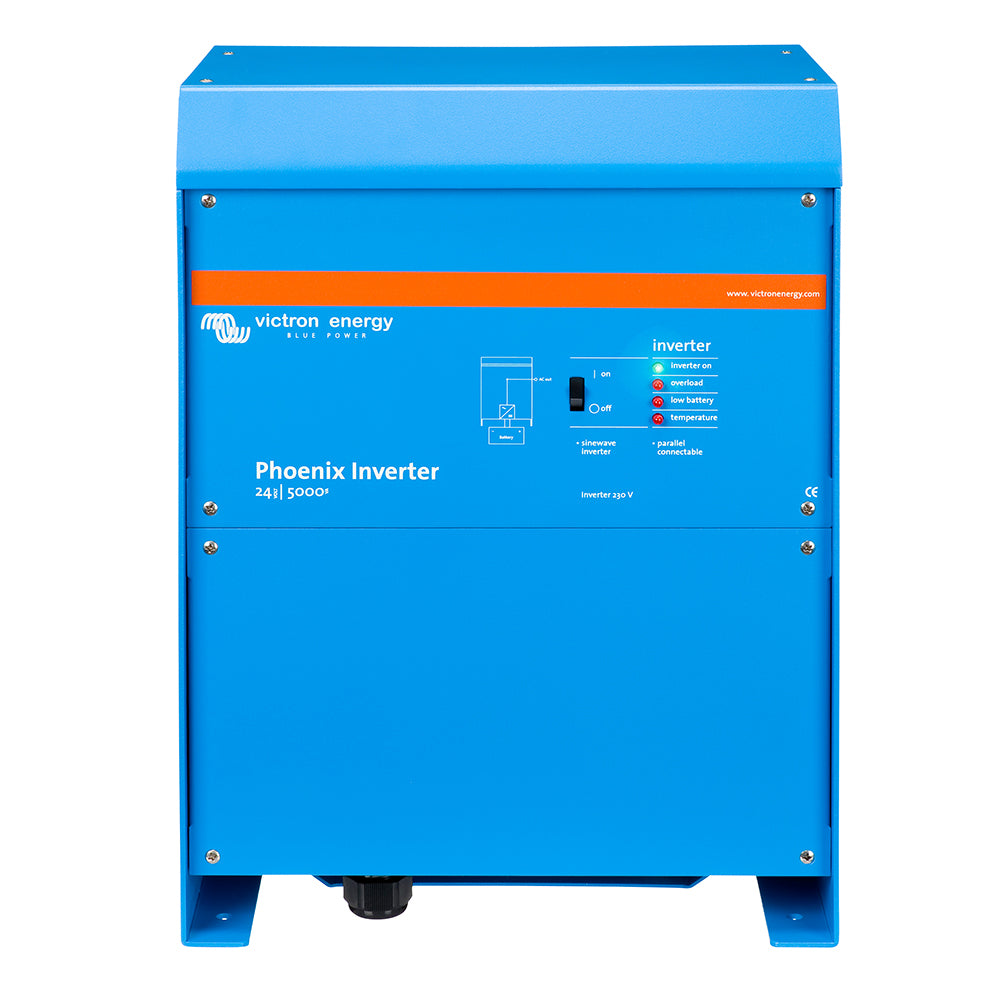

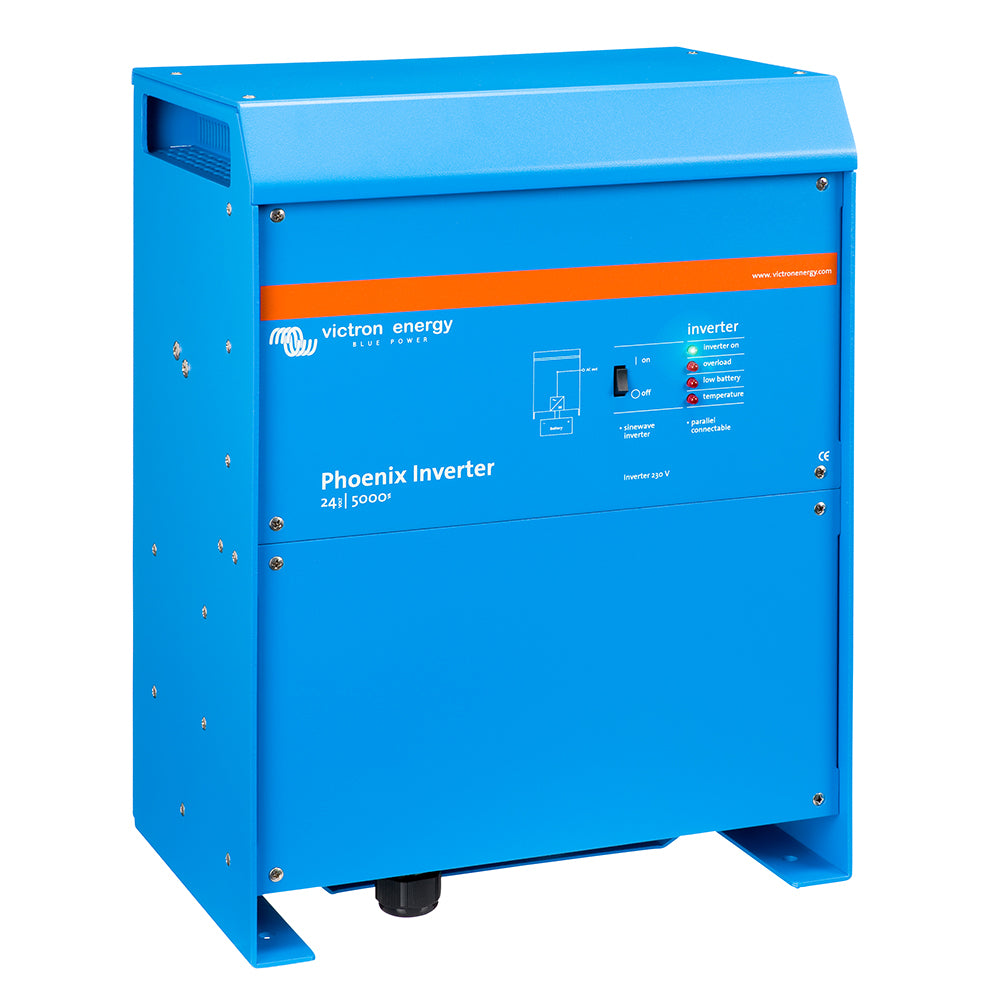

Victron Phoenix Inverter 24V DC - 5000W - 230 VAC - 50Hz

Name: Victron Phoenix Inverter 24V DC - 5000W - 230 VAC - 50Hz
Brand: Victron Energy
SKU: VIC/PIN245020000
Price: 1666.00 USD
Availability: InStock

SKU: VIC/PIN245020000

$1,666⁰⁰ $1,960⁰⁰

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Descripción

Phoenix Inverter 24 VDC - 5000W - 230 VAC - 50Hz

Pure sine wave output, high peak power and high efficiency. Combined high frequency and line frequency technologies ensure the best of both worlds.

SinusMax - Superior Engineering

Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimised efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem free, to any load.

Parallel and 3-phase operation capability

Up to 6 Phoenix Inverters can operate in parallel to achieve higher power output. Six 24V 5000VA units, for example, will provide 24kW / 30kVA output power. Operation in 3-phase configuration is also possible.

Warranty Info

Please contact your dealer for any returns, repairs or support issues related to this product.

Specifications

Identification

MPN	PIN245020000
Barcode	8719076023760

Electrical

Input Voltage Range	19 - 33V
Output Voltage	230 VAC ±2%
Output Frequency	50 Hz ±0.1%
Continuous Power @ 25°C	4000W (5000VA)
Peak Power	10000W
Efficiency	94-95%
No-Load Power Draw	30-35W (25-30W AES, 10-15W Search mode)
