Victron BlueSolar MPPT Charge Controller - 75V - 15AMP

Name: Victron BlueSolar MPPT Charge Controller - 75V - 15AMP
Brand: Victron Energy
SKU: VIC/SCC010015050R
Price: 52.70 USD
Availability: InStock

SKU: VIC/SCC010015050R

$52⁷⁰ $62⁰⁰

Same-Day Shipping Checking cutoff…

Descripción

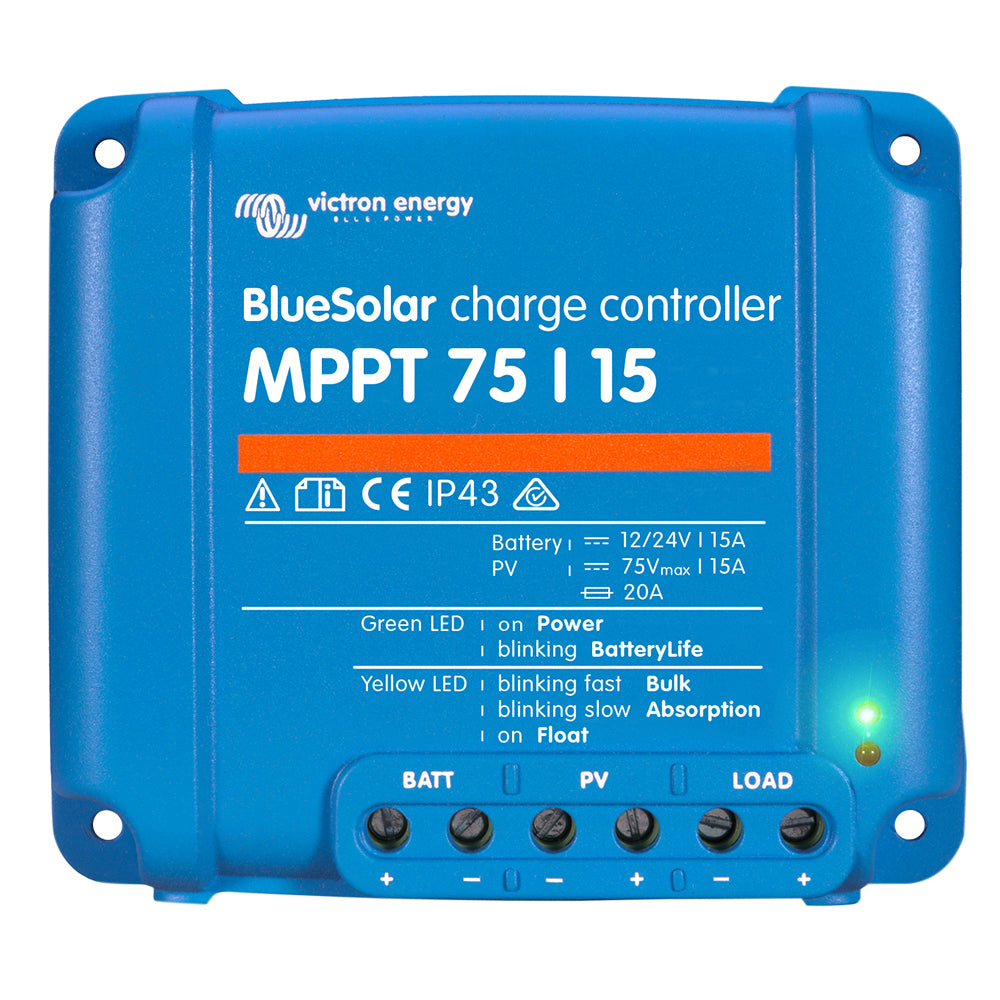

BlueSolar MPPT Charge Controller - 75V - 15AMP

Features:

Ultra-fast Maximum Power Point Tracking (MPPT) Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
Programmable battery charge algorithm See the software section on our website for details
Day/night timing and light dimming option See the software section on our website for details

Warranty Info

Please contact your dealer for any returns, repairs or support issues related to this product.

Specifications

Identification

MPN	SCC010015050R
Barcode	8719076025320

General

MPN	SCC010015050R
Barcode	8719076025320

Electrical

Max. PV Open Circuit Voltage	75V
Nominal PV Power (12V)	220W
Nominal PV Power (24V)	440W
Max. PV Short-Circuit Current	15A
Max. Battery Charge Current	15A
Battery Voltage	12/24/48V (auto select)
Absorption Voltage	14.4 / 28.8 / 57.6V (adjustable)
Self-Consumption	15mA @ 24V
Peak Efficiency	98%

Physical

Dimensions (HxWxD)	100 x 113 x 50mm
Weight	0.6kg
Operating Temperature	-30 to +60°C (full rated output to 40°C)
Protection Category	IP43 (electronics) / IP22 (connection area)
