Victron SmartShunt 2000A/50MV IP65 Bluetooth Battery Monitor
Descripción
Descripción

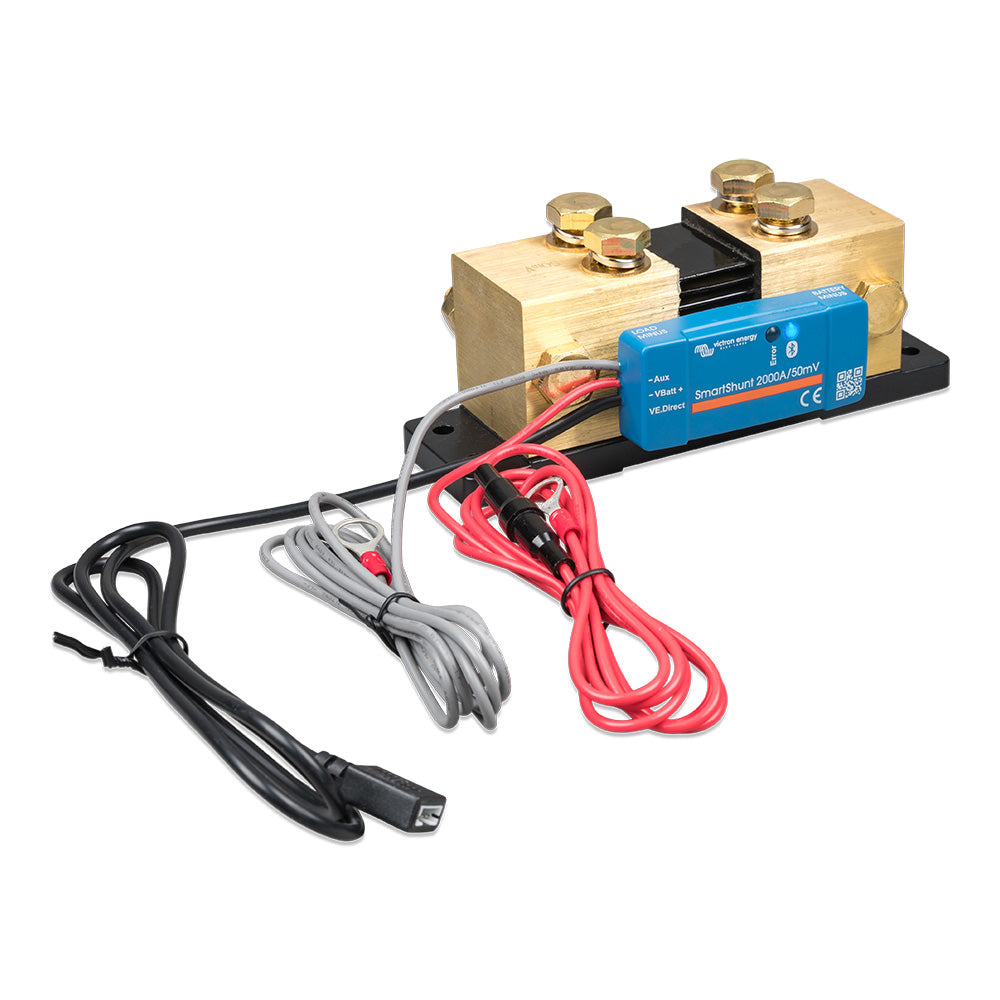

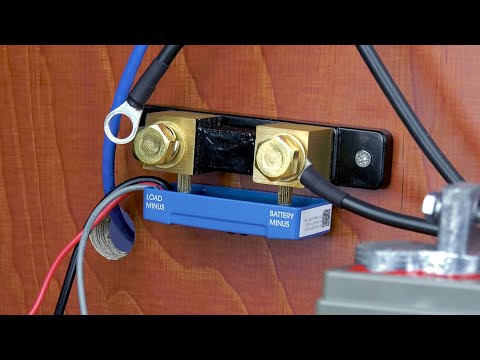

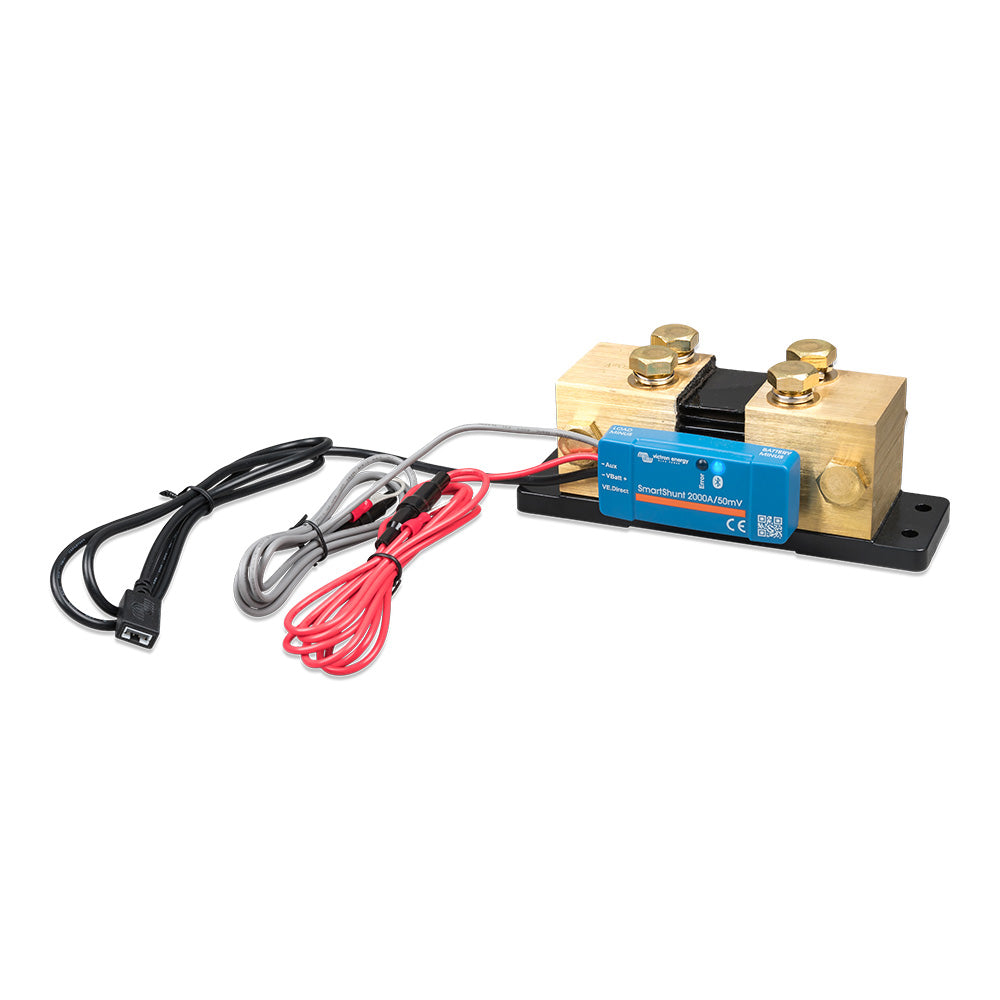

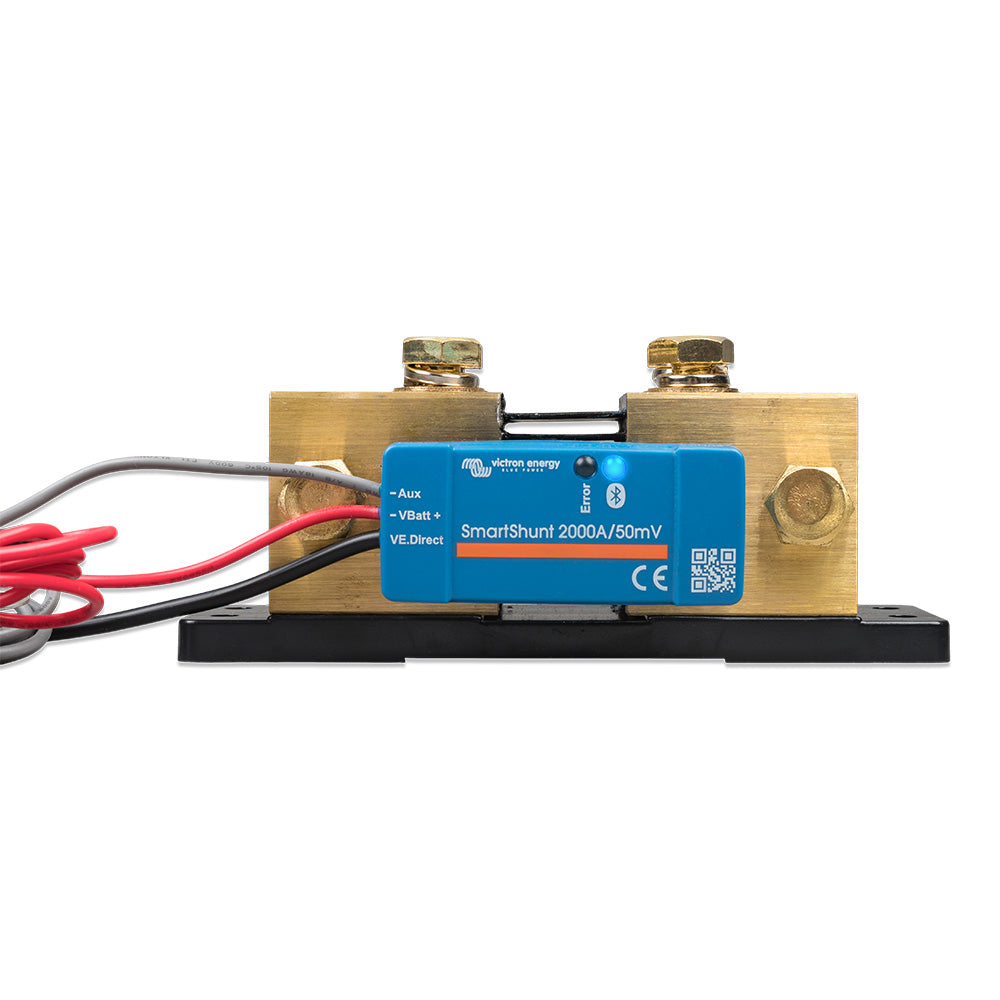

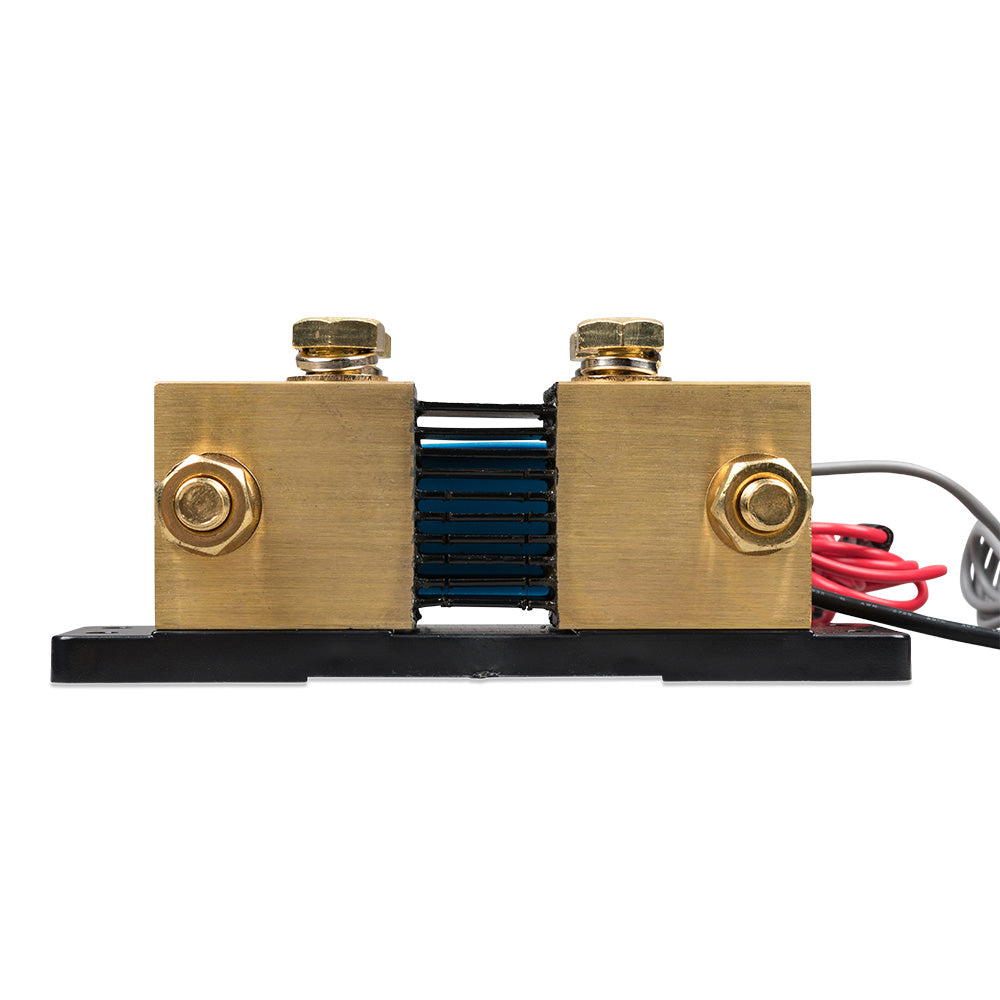

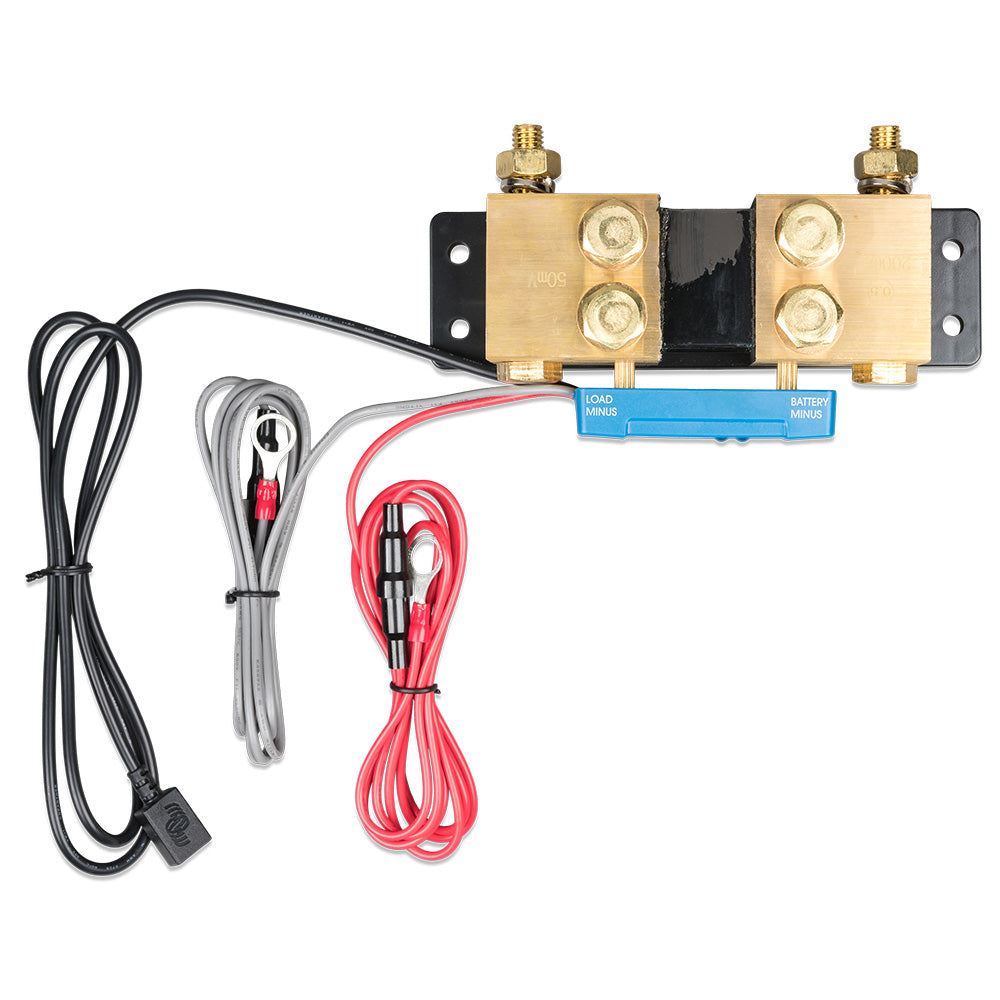

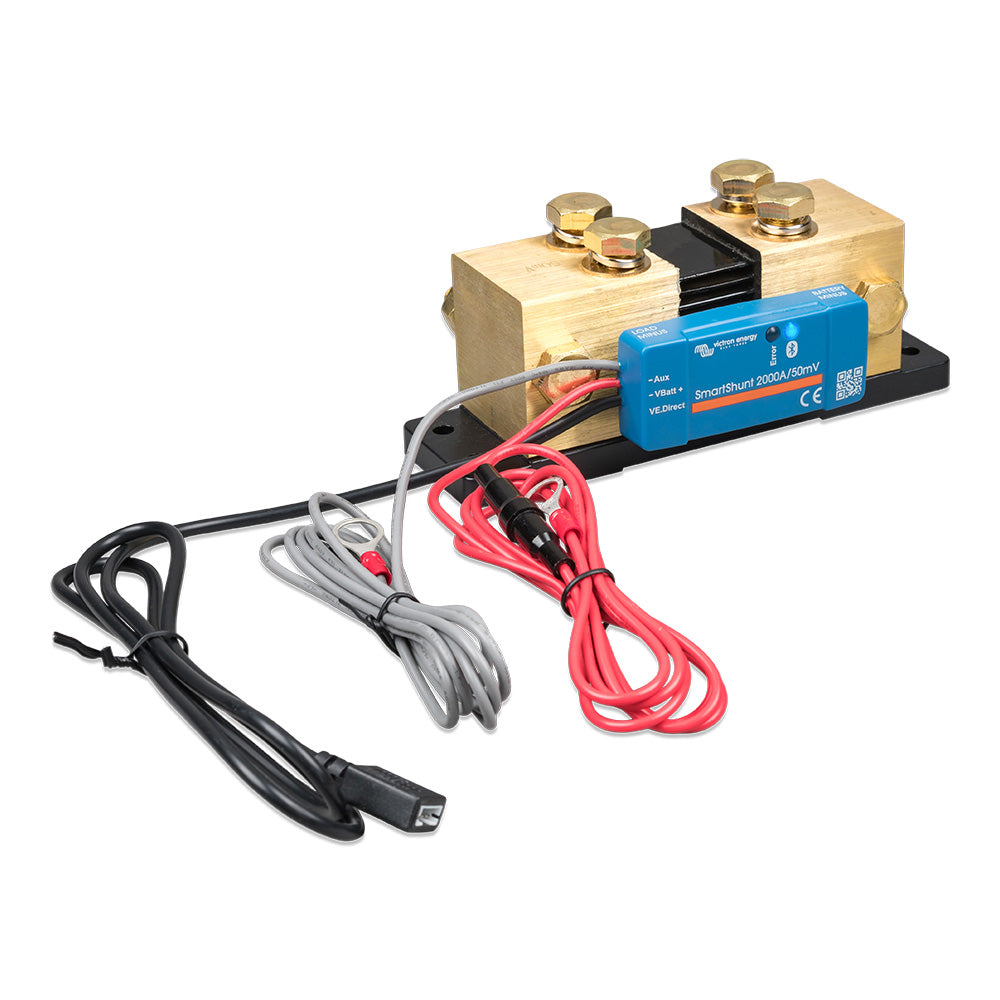

SmartShunt 2000A/50MV IP65 Bluetooth Battery Monitor
The Smart Battery Shunt
The SmartShunt is an all-in-one battery monitor, only without a display. Your phone acts as a display. The SmartShunt connects via Bluetooth to the VictronConnect app on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information, and much more.
Alternatively, the SmartShunt can be connected and read by a GX device. Connection to the SmartShunt is made via a VE.Direct cable.
The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter are wanted.
The SmartShunt is equipped with Bluetooth and a VE.Direct port and a connection that can be used for: monitoring a second battery, midpoint monitoring, or a temperature sensor.
Please contact your dealer for any returns, repairs or support issues related to this product.
Specifications
Specifications
Identification
| MPN | SHU065220050 |
|---|
Electrical
| Battery Voltage Range | 6.5 - 70 VDC |
|---|---|
| Max Continuous Current | 2000 A |
| Current Measurement Accuracy | ±0.4% |
| Voltage Measurement Accuracy | ±0.3% |
| State of Charge Accuracy | ±0.1% |
| Current Draw | < 1 mA |
| Battery Capacity Range | 1 - 9999 Ah |
Physical
| Dimensions (HxWxD) | 68 x 168 x 100 mm |
|---|---|
| IP Rating | IP65 |
| Operating Temperature | -40 to +50°C |
Connectivity
| Bluetooth Range | 10-15 m (line of sight) |
|---|
