Victron Skylla-i Battery Charger 24/100 (3) 230V Battery Charger
Precio de venta
$1,63285
Precio normal
$1,92100
Total:
Precio unitario
SKU:
VIC/SKI024100002
Precio de venta
$1,63285
Precio normal
$1,92100
Total:
Precio unitario
Descripción
Descripción

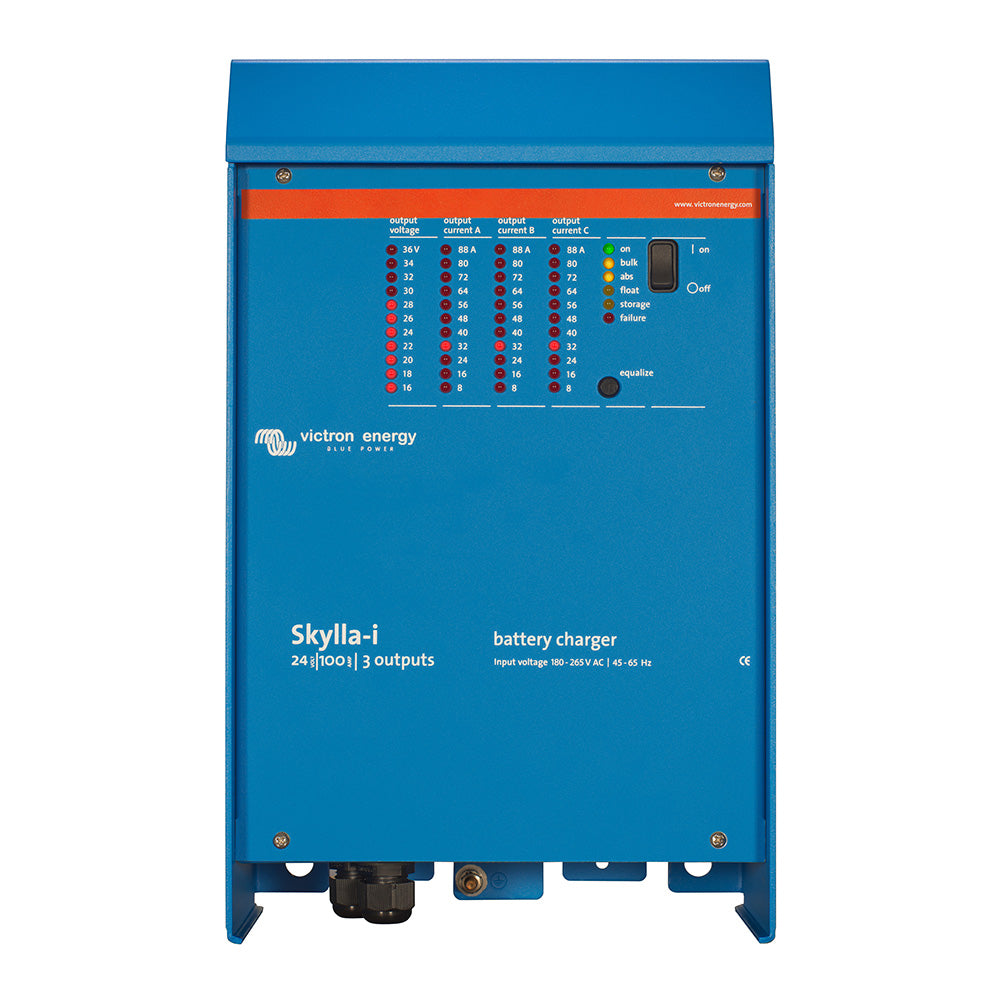

Skylla-i Battery Charger 24/100 (3) 230V Battery Charger
The Skylla-i (3) features 3 isolated outputs. All outputs can supply the full rated output current.
Features:
- Rugged - Aluminium epoxy powder-coated cases with drip shield and stainless steel fixings withstand the rigors of an adverse environment: heat, humidity, and salt air. Circuit boards are protected with an acrylic coating for maximum corrosion resistance. Temperature sensors ensure that power components will always operate within specified limits, if needed by automatic reduction of output current under extreme environmental conditions.
- Flexible - Next to a CAN bus (NMEA2000) interface, a rotary switch, DIP switches and potentiometers are available to adapt the charge algorithm to a particular battery and its conditions of use. Please refer to the manual for a complete overview of the possibilities.
- Synchronized parallel operation - Several chargers can be synchronized with the CAN bus interface. This is achieved by simply interconnecting the chargers with RJ45 UTP cables. Note: Two output and three output chargers cannot be paralleled with each other. Please see the manual for details.
- Preventing damage due to excessive gassing: BatterySafe mode - If to quickly charge a battery, a high charge current in combination with a high absorption voltage has been chosen, the Skylla-i will prevent damage due to excessive gassing by automatically limiting the rate of voltage increase once the gassing voltage has been reached.
- Suitable for AC and DC supply (AC-DC and DC-DC operation) - The chargers also accept a DC supply.
- Li-Ion (LiFePO4) ready - Simple charger on-off control can be implemented by connecting a relay or open collector optocoupler output from a Li-Ion BMS to the remote control port of the charger. Alternatively, complete control of voltage and current can be achieved by connecting to the galvanically isolated CAN bus port.
Specifications
Specifications
Identification
| MPN | SKI024100002 |
|---|---|
| Barcode | 8719076026259 |
General
| Brand | Victron Energy |
|---|---|
| Model | Skylla-i 24/100 (3) |
| SKU | VIC/SKI024100002 |
Electrical
| AC Input Voltage Range | 185-265V AC, 45-65Hz |
|---|---|
| Number of Outputs | 3 isolated outputs |
| Charge Current | 3 x 100A (max total output 100A) |
| Absorption Voltage | 28.8V |
| Float Voltage | 27.6V |
| Storage Voltage | 26.4V |
| Charge Algorithm | 7-stage adaptive |
| Battery Capacity Range | 500-1000Ah |
Physical
| Dimensions (LxWxH) | 405 x 250 x 150mm |
|---|---|
| Weight | 7kg |
| Enclosure | IP21 |
| Operating Temperature | -20 to 60°C (full output up to 40°C) |
