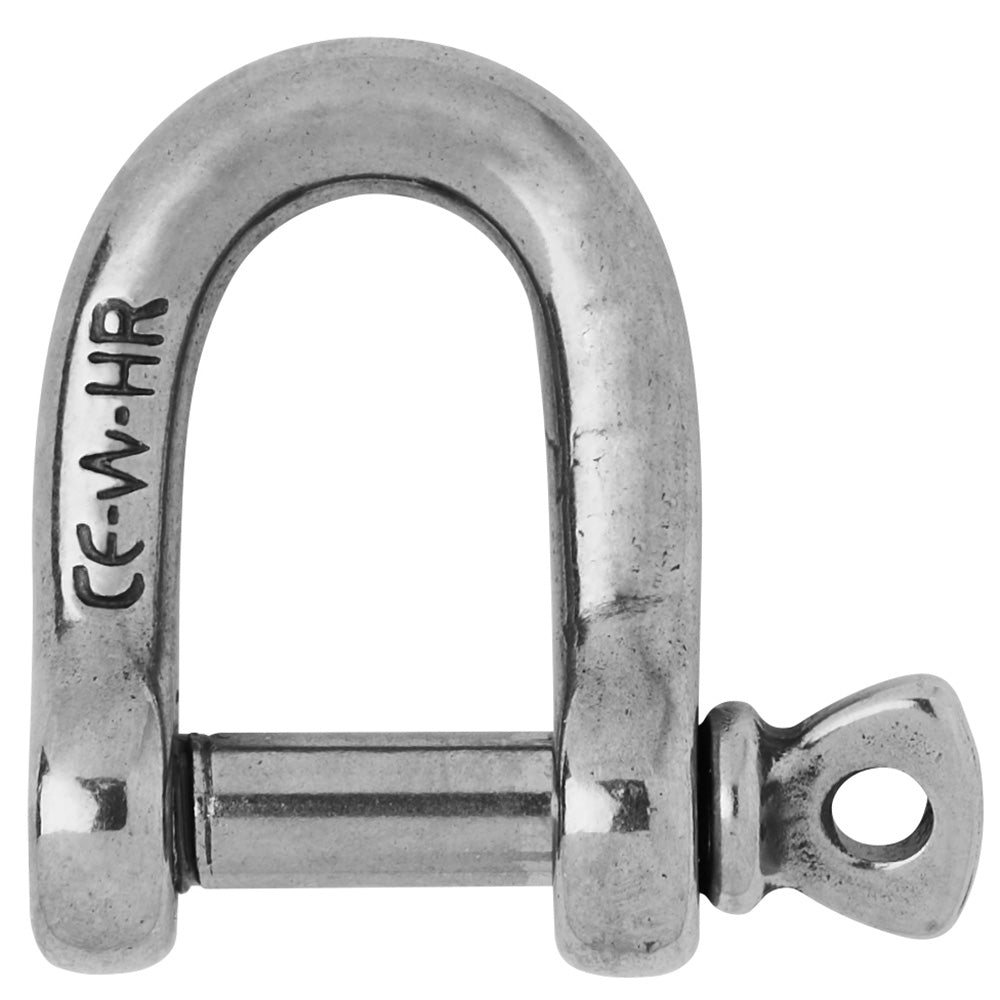

HR D Shackle - Diameter 15/64"
Features:
- Forged D shackle in HR stainless steel grade (17,4 PH)
- Outstanding working and breaking load
- An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
- WLL: only for industrial applications (lifting i.e…)
- CE marking and batch number
Applications
- Applications requesting high loads
- Standard applications of the shackle
- Attachment applications: blocks, head
- Do not use it for mooring applications
Specifications
Specifications
Identification
| MPN | 11203W |
|---|---|
| Barcode | 768536112030 |
General
| Note 1 | Materials HR 17.4 PH stainless steel grade |
|---|---|
| Note 2 | Working load (lb) 2290 |
| Note 3 | WLL (lb) 1010 |
| Note 4 | Breaking load (lb) 5070 |
| Note 5 | Weight (lb) 0.053 |

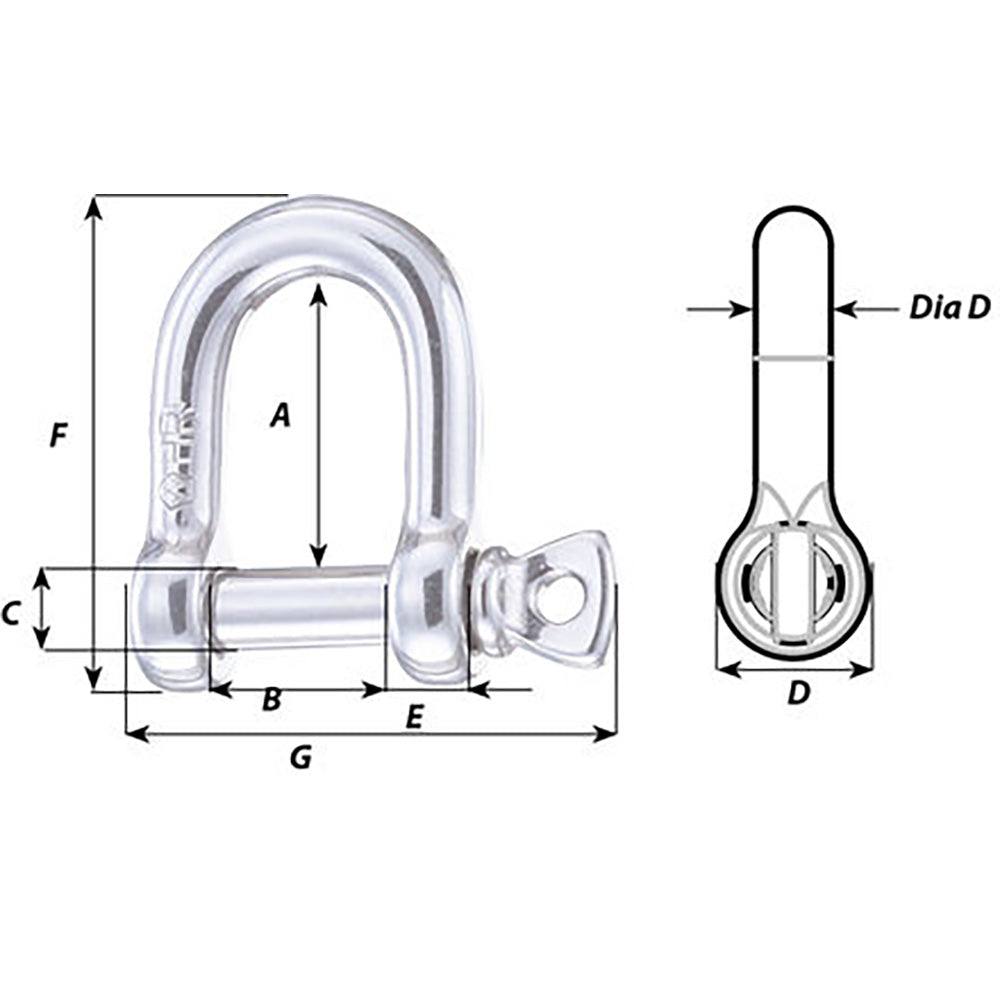

| Note 6 | A (inch) 25/32" |
| Note 7 | B (inch) 15/32" |
| Note 8 | C (inch) 15/64" |
| Note 9 | D (inch) 5/8" |
| Note 10 | D diameter (inch) 15/64" |
| Note 11 | E (inch) 9/32" |
| Note 12 | F (inch) 1 13/16" |
| Note 13 | G (inch) 1 13/16" |
