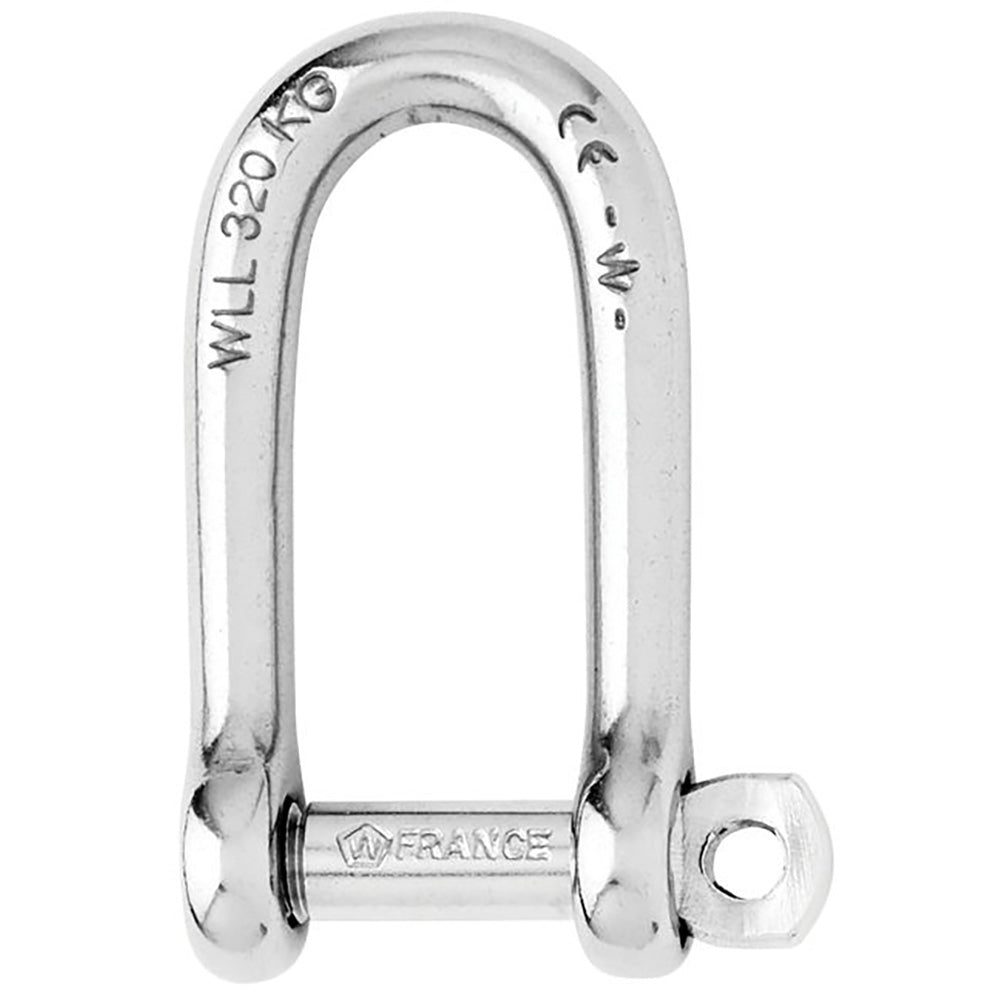

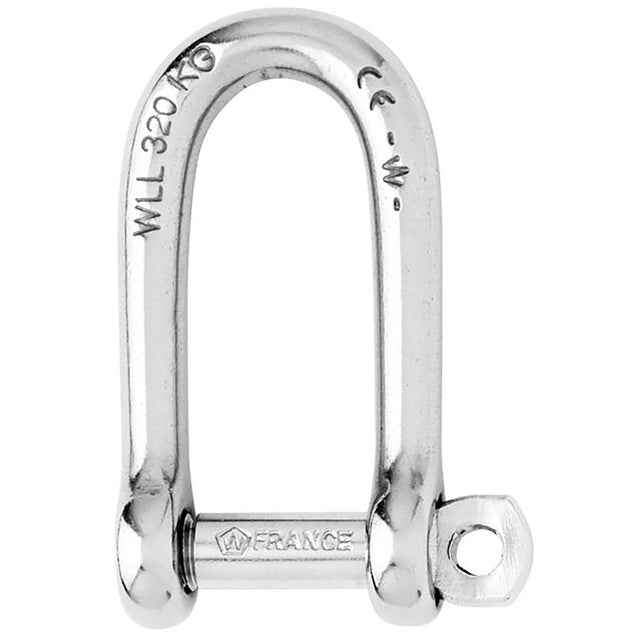

Self-Locking Long D Shackle - 10mm Diameter - 13/32"
Features:
- Self-locking D shackle forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- WLL: only for industrial applications (lifting i.e…)
- CE marking
Applications
- Standard applications of shackle requiring more length
- Attachment applications: blocks, head
Specifications
Specifications
Identification
| MPN | 1215W |
|---|---|
| Barcode | 768536012156 |

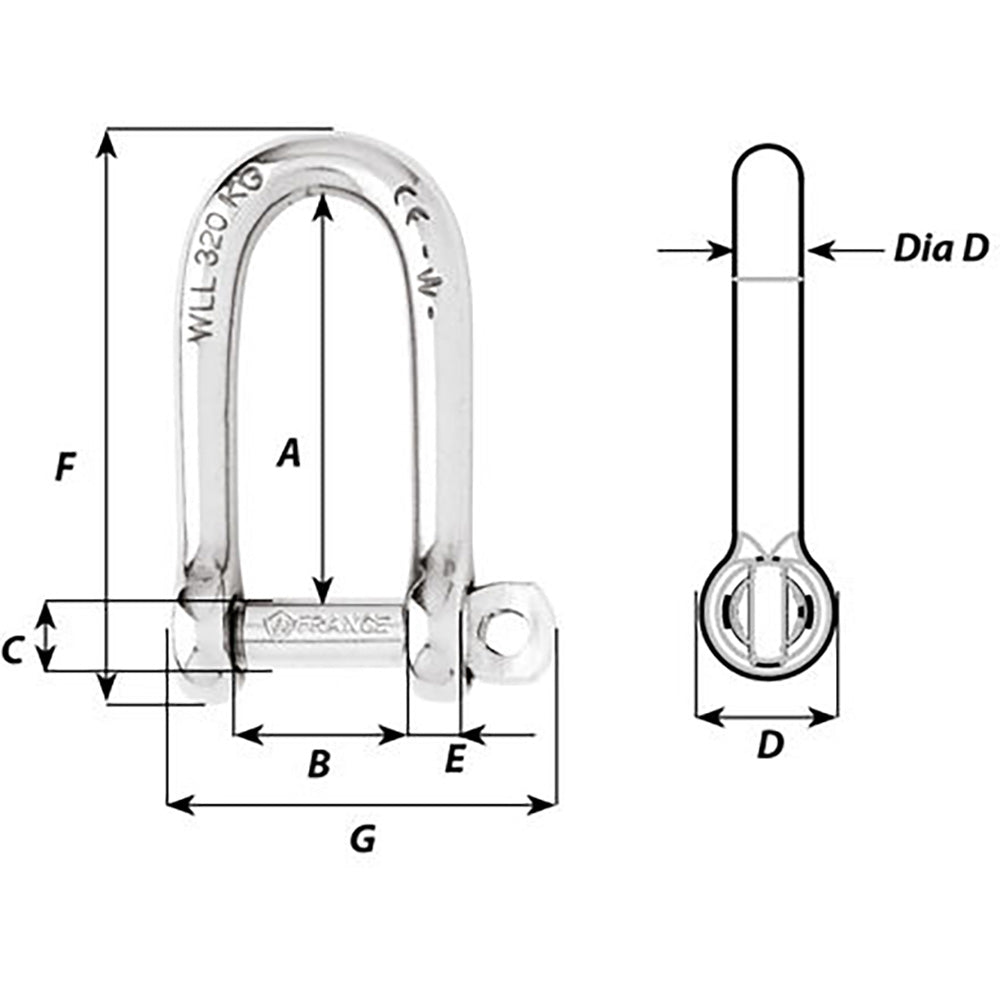

Dimensions:
| A | (inch) 2 11/64" / (mm) 55 |
|---|---|
| B | (inch) 25/32" / (mm) 20 |
| C | (inch) 25/64" / (mm) 10 |
| D | (inch) 3/4" / (mm) 19 |
| D diameter | (inch) 25/64" / (mm) 10 |
| E | (inch) 23/64" / (mm) 9 |
| G | (inch) 3 7/64" / (mm) 79 |
| H | (inch) 2 3/64" / (mm) 52 |
Caption:
| Working Load (WL) | For nautical applications |
|---|---|
| Working Load Limit (WLL) | For industrial applications only. The safety factor is 5 times the breaking load.WLL = Breaking load / 5 |
