Wichard Self-Locking Twisted Shackle - Diameter 6mm - 1/4"
Precio de venta
$2791
Precio normal
$3284
Precio unitario
SKU:
WIC/1223W
Precio de venta
$2791
Precio normal
$3284
Precio unitario
Descripción
Descripción

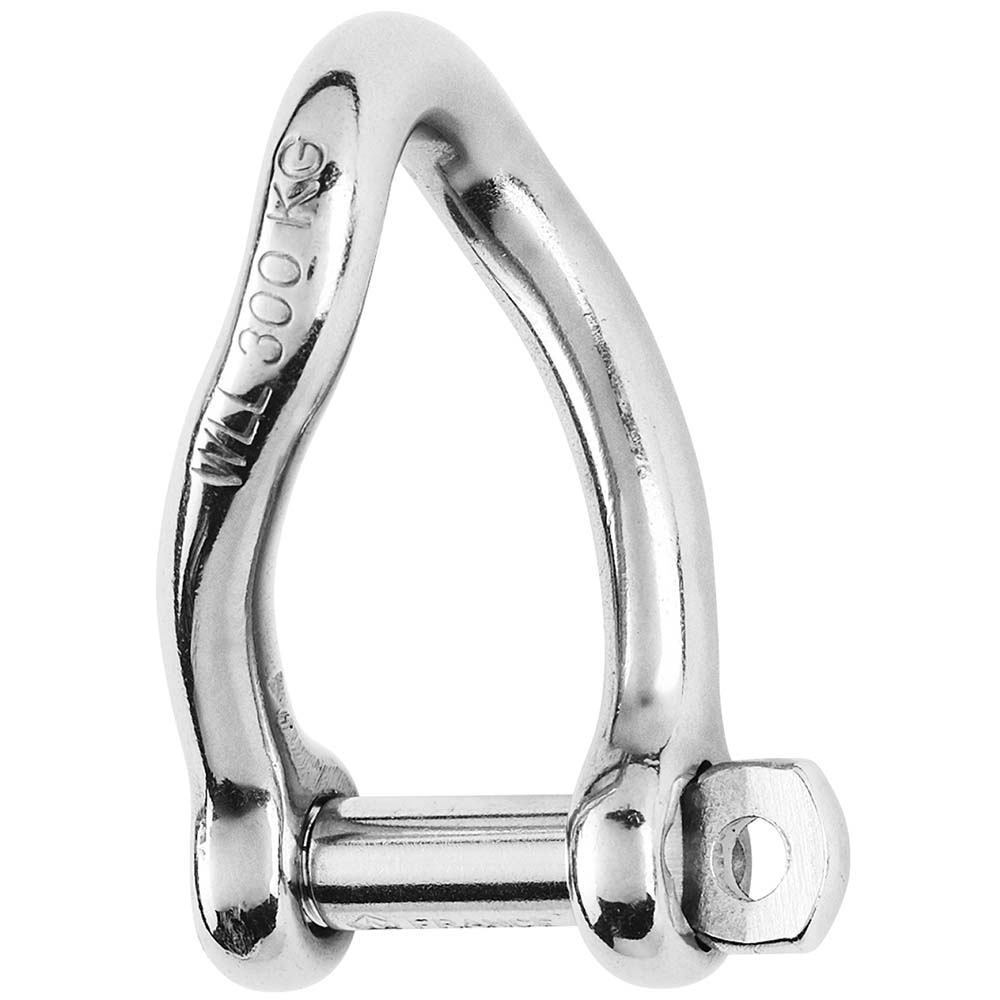

Self-Locking Twisted Shackle - Diameter 6mm - 1/4"
Features:
- Self-locking twisted shackle forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
Applications:
- Perfect for application where a 90° angle twist setup is required
- Often used to attach an unarticulated part (block on a rail) or on purchases
Specifications
Specifications
Identification
| MPN | 1223W |
|---|---|
| Barcode | 768536012231 |

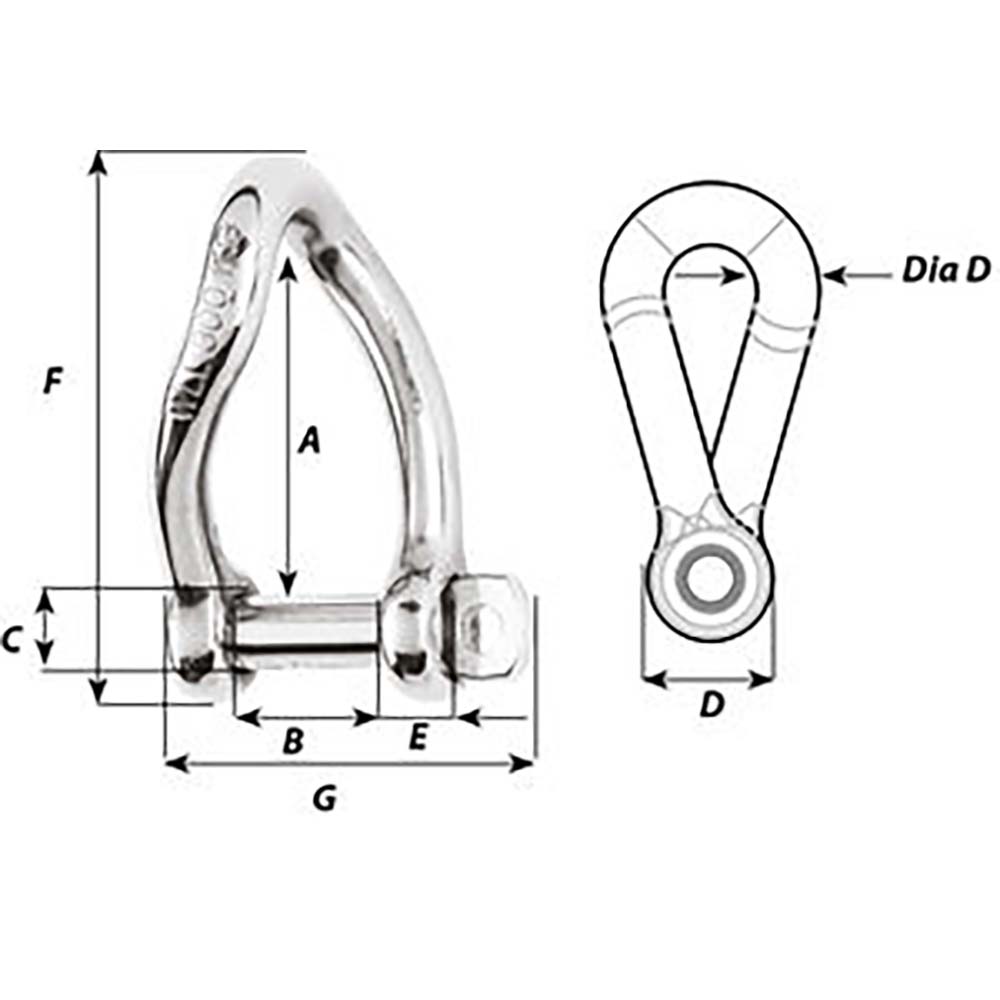

Dimensions (see 2nd page):
| Note 1 | A (inch) 1-3/16" |
|---|---|
| Note 2 | B (inch) 15/32" |
| Note 3 | C (inch) 15/64" |
| Note 4 | D (inch) 15/32" |
| Note 5 | D diameter (inch) 15/64" |
| Note 6 | E (inch) 13/64" |
| Note 7 | F (inch) 1-49/64" |
Reseñas (0)
Reseñas (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Available Method: Ground
