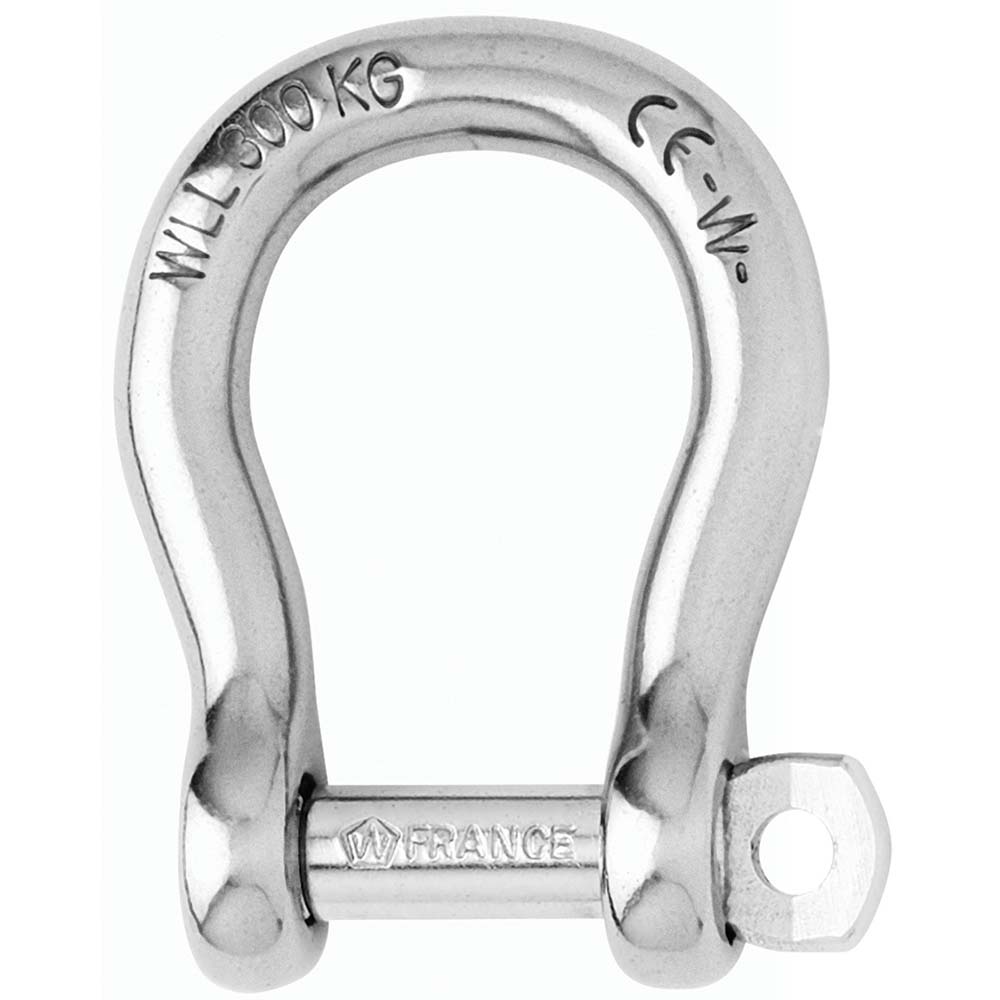

Wichard Self-Locking Bow Shackle - Diameter 6mm - 1/4"
Precio de venta
$2478
Precio normal
$2915
Precio unitario
SKU:
WIC/1243W
Precio de venta
$2478
Precio normal
$2915
Precio unitario
Descripción
Descripción
Self-Locking Bow Shackle - Diameter 6mm - 1/4"
Features:
- Self-locking bow shackle forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- WLL: only for industrial applications (lifting i.e…)
- CE marking and batch number
Applications:
- To be used when ample room is required
- Possibility to attach several lines or cables
Specifications
Specifications
Identification
| MPN | 1243W |
|---|---|
| Barcode | 768536012439 |

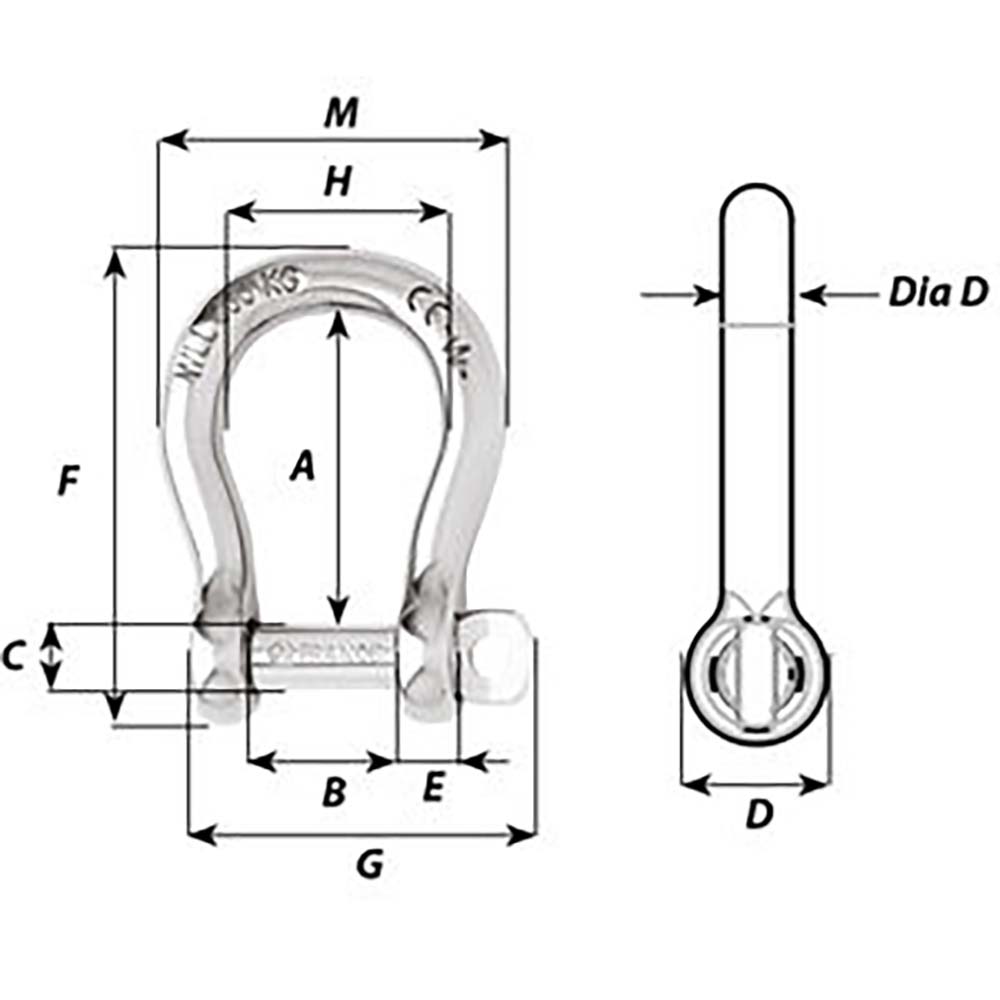

Dimensions (see 2nd image):
| Note 1 | A (inch) 1-7/64" |
|---|---|
| Note 2 | B (inch) 15/32" |
| Note 3 | C (inch) 15/64" |
| Note 4 | D (inch) 15/32" |
| Note 5 | D diameter (inch) 15/64" |
| Note 6 | E (inch) 13/64" |
| Note 7 | M (inch) 1-17/64" |
