Wichard Captive Pin Long D Shackle - Diameter 8mm - 5/16"
Precio de venta
$6685
Precio normal
$7865
Precio unitario
SKU:
WIC/1414W
Precio de venta
$6685
Precio normal
$7865
Precio unitario
Descripción
Descripción

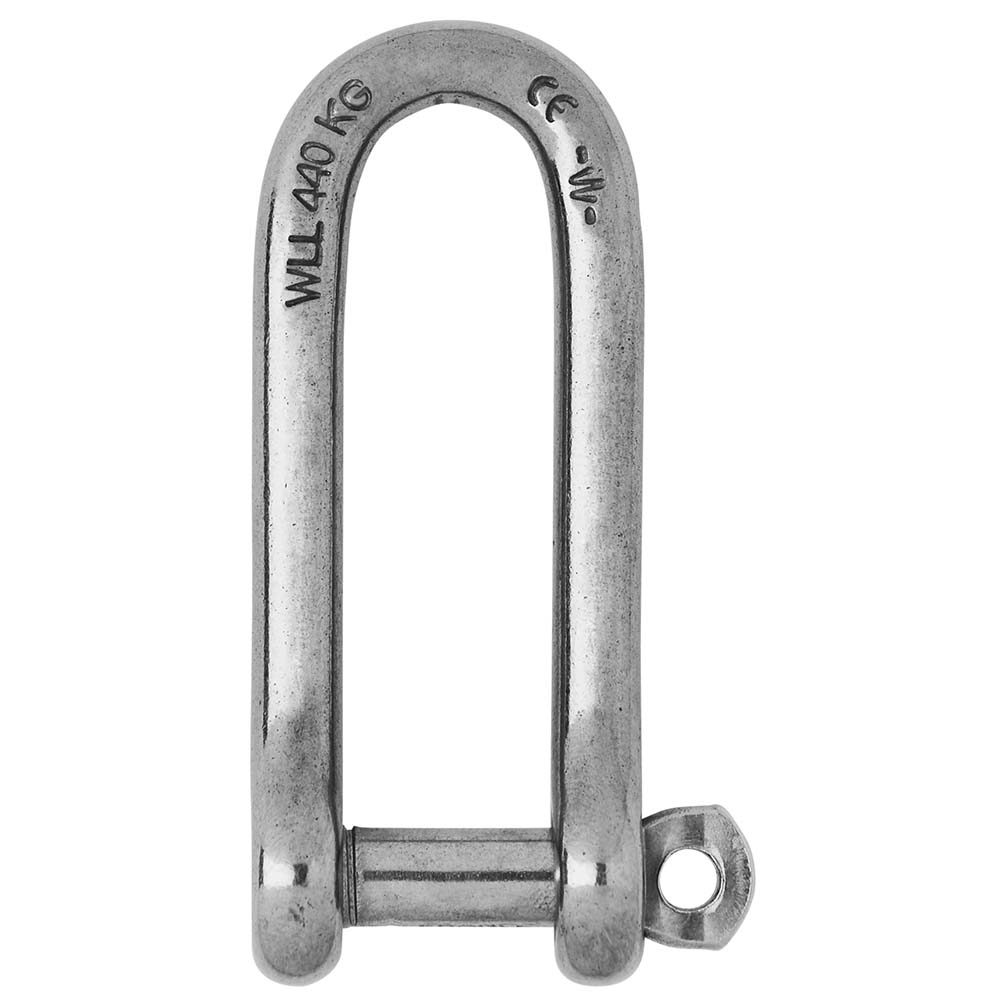

Captive Pin Long D Shackle - Diameter 8mm - 5/16"
Features:
- Captive pin long "D" shackle forged in grade 316L stainless steel
- The pin is connected to the body at all times even when opened
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
Applications:
- Standard applications of shackle requiring more length
- Attachment applications: blocks, head...
Specifications
Specifications
Identification
| MPN | 1414W |
|---|---|
| Barcode | 3587790014143 |

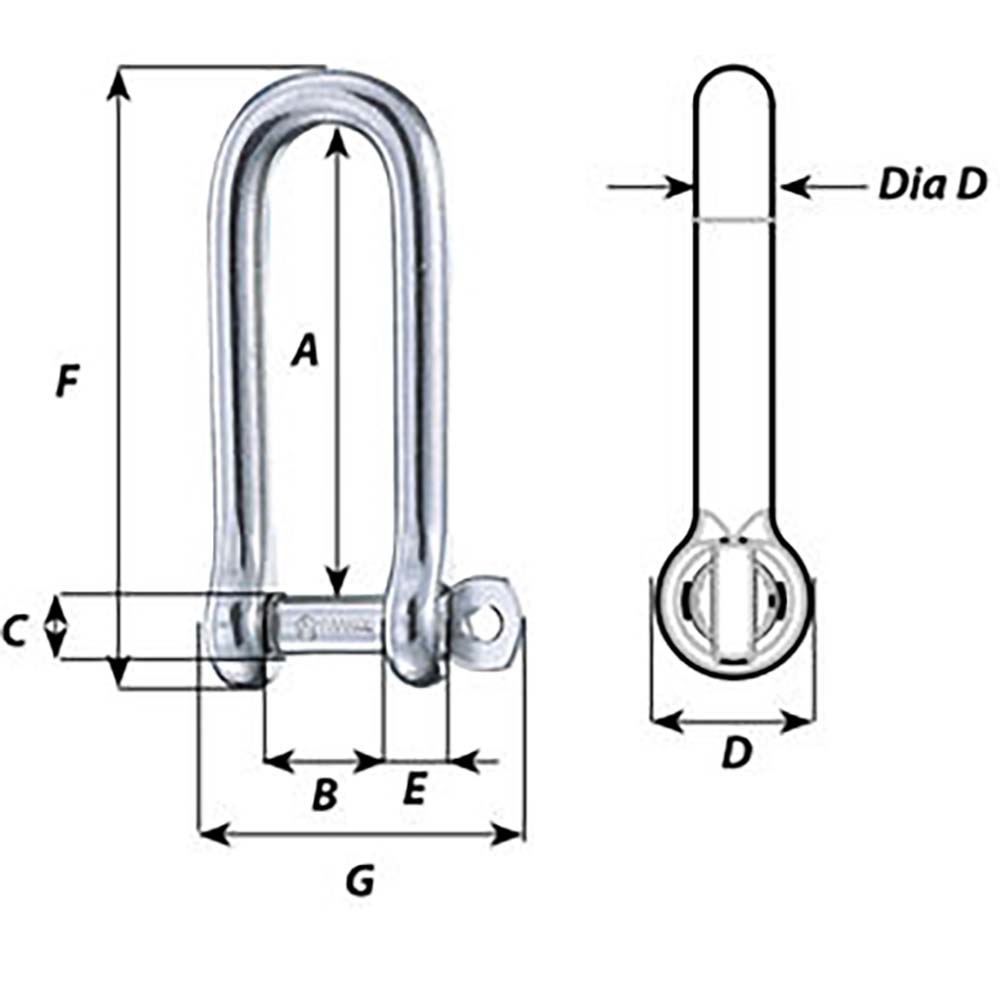

Dimensions (see 2nd image):
| Note 1 | A (inch) 2-7/16" |
|---|---|
| Note 2 | B (inch) 5/8" |
| Note 3 | C (inch) 23/64" |
| Note 4 | D (inch) 43/64" |
| Note 5 | D diameter (inch) 5/16" |
| Note 6 | E (inch) 5/16" |
| Note 7 | F (inch) 3-15/64" |
| Note 8 | G (inch) 1-11/16" |
Reseñas (0)
Reseñas (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Available Method: Ground
