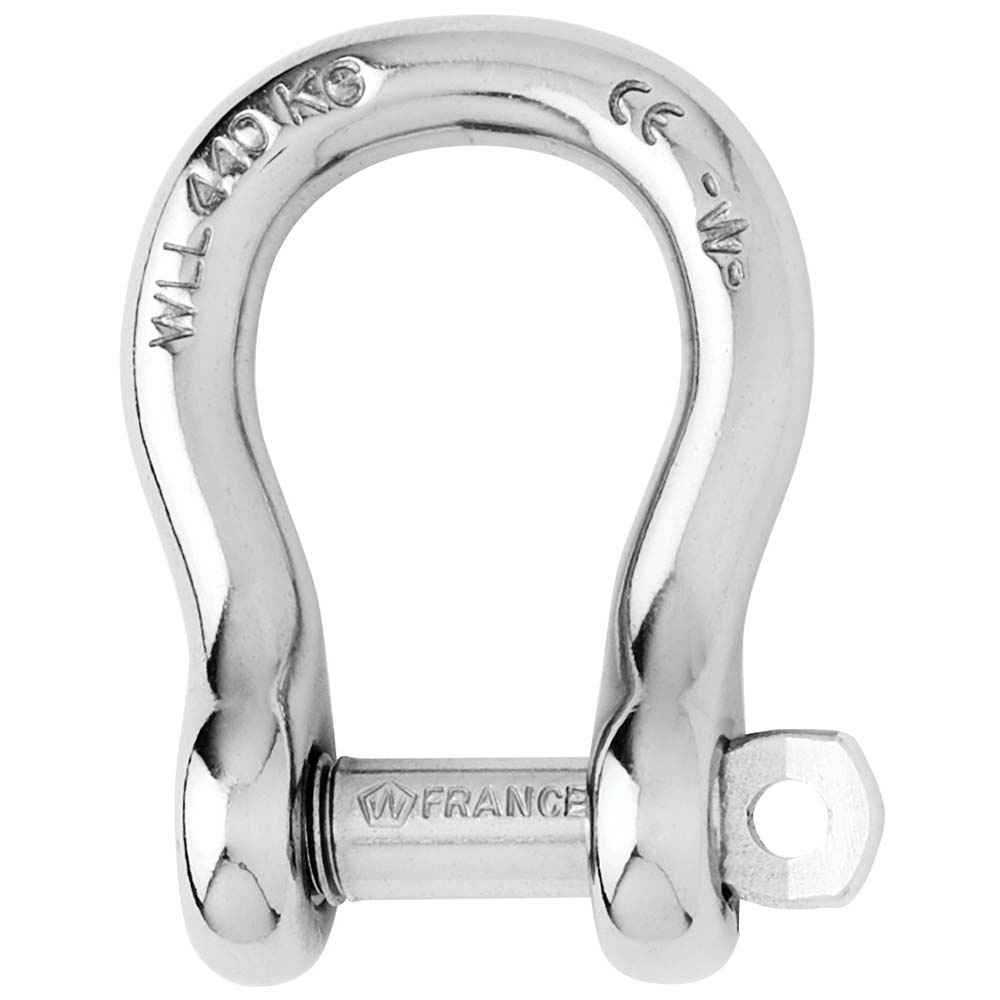

Captive Pin Bow Shackle - Diameter 6mm - 1/4"
Features:
- Captive pin bow shackle forged in grade 316L stainless steel
- The pin is connected to the body at all times even when opened
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- Single handed operation for more safety
- WLL: only for industrial applications (lifting i.e…)
- CE marking and batch number
Applications:
- To be used when ample room is required
- Possibility to attach several lines or cables
Specifications
Specifications
Identification
| MPN | 1443W |
|---|---|
| Barcode | 3587790014433 |

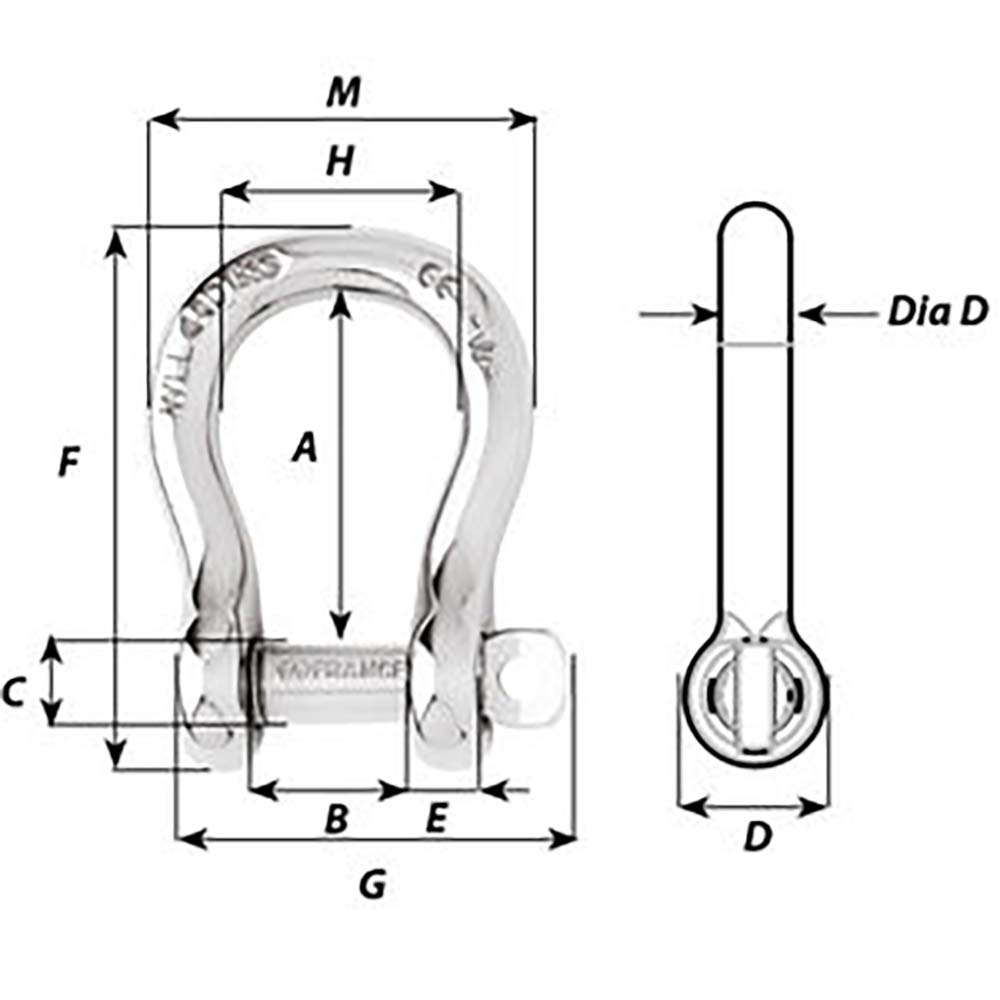

Dimensions (see 2nd image):
| Note 1 | A (inch) 1-1/16" |
|---|---|
| Note 2 | B (inch) 15/32" |
| Note 3 | C (inch) 9/32" |
| Note 4 | D (inch) 35/64" |
| Note 5 | D diameter (inch) 15/64" |
| Note 6 | E (inch) 15/64" |
| Note 7 | M (inch) 1-7/32" |
