SKU:
WIC/1495W
Precio de venta
$13914
Precio normal
$16369
Precio unitario
Descripción
Descripción

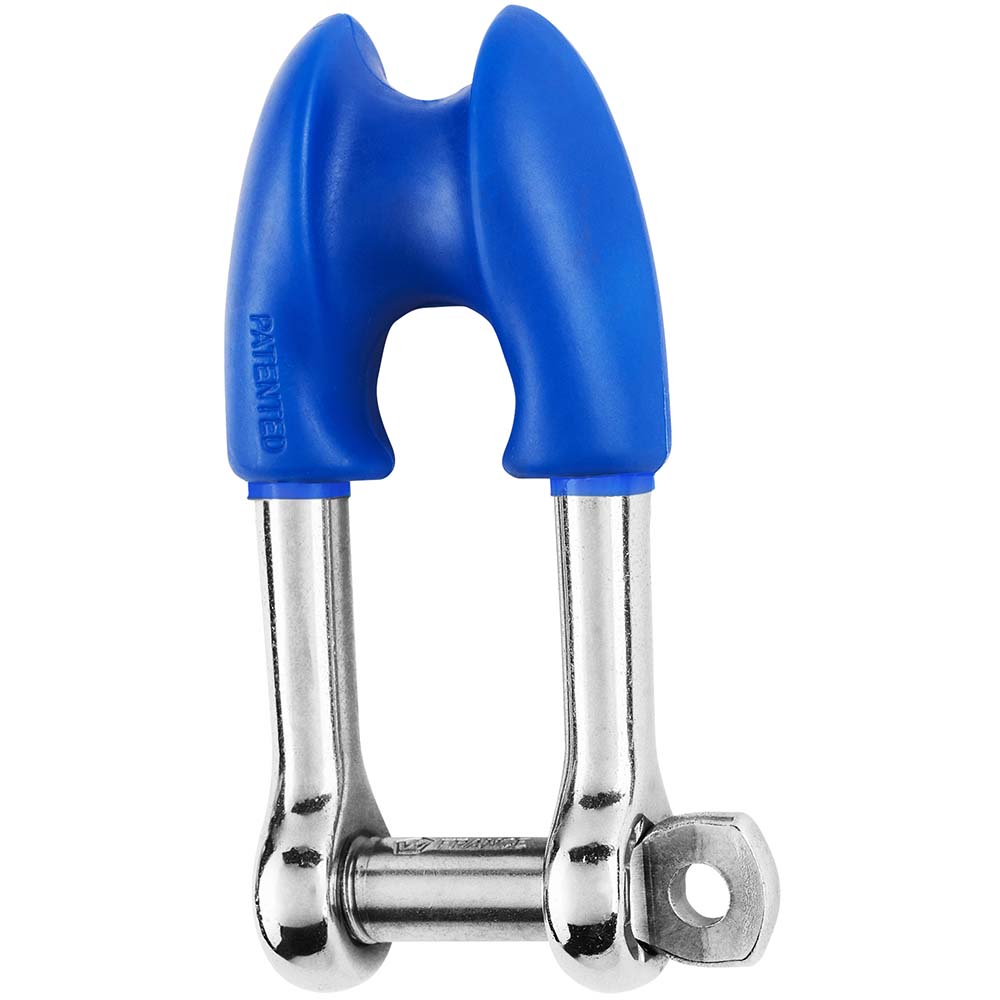

Thimble Shackle - Captive Pin - Diameter 10mm - 13/32"
Features:
- Thimble shackle with captive pin forged in grade 316L stainless steel
- Allows to spliced a rope without adding an additional thimble
- With the captive pin, no risk to lose the pin
- Outstanding working and breaking loads
Applications:
- Mainsheet halyards
- Max rope size: 16 mm
Specifications
Specifications
Identification
| MPN | 1495W |
|---|---|
| Barcode | 768536014952 |

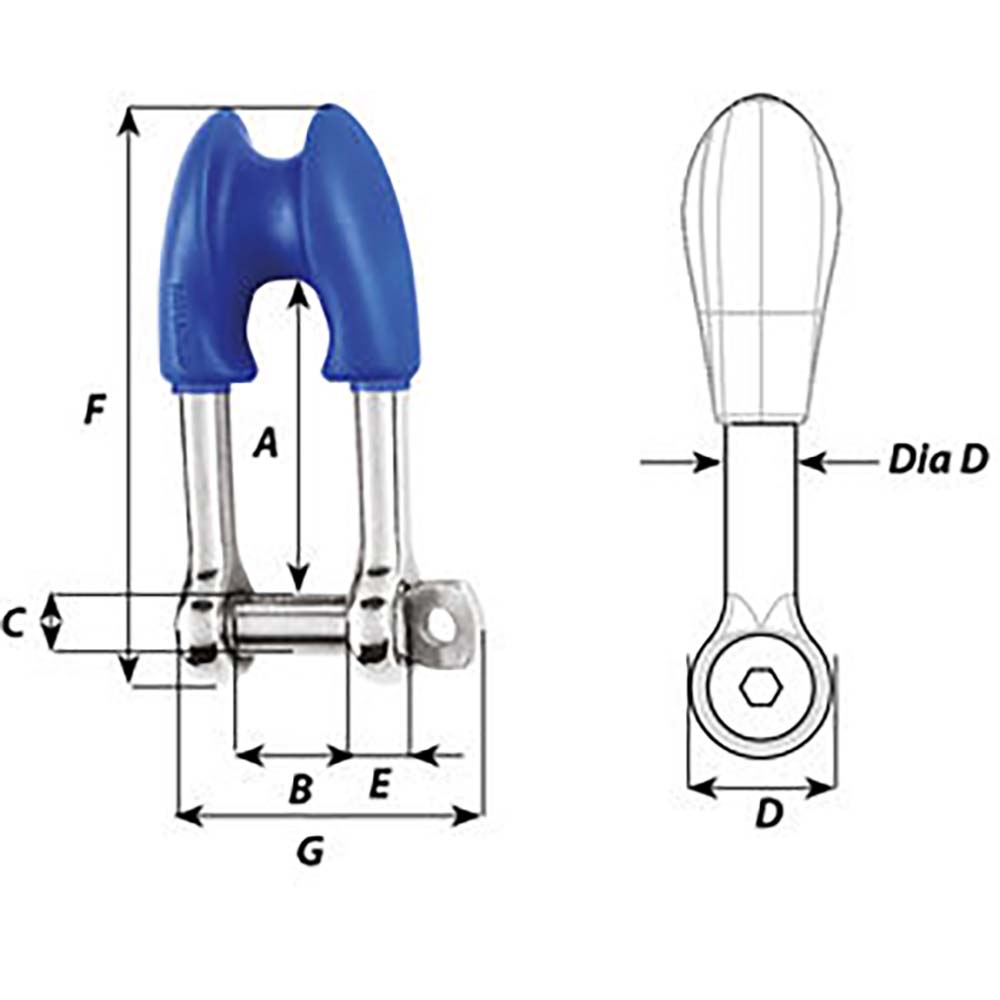

Dimensions (see 2nd image):
| Note 1 | A (inch) 2-1/64" |
|---|---|
| Note 2 | B (inch) 25/32" |
| Note 3 | C (inch) 25/64" |
| Note 4 | D (inch) 25/32" |
| Note 5 | D diameter (inch) 25/64" |
| Note 6 | E (inch) 23/64" |
| Note 7 | F (inch) 3-47/64" |
| Note 8 | G (inch) 2-1/8" |
Reseñas (0)
Reseñas (0)
In The Box
In The Box
In The Box:
Package Dimensions:
Available Method: Ground
Support
Support
* ALL WARRANTY IS THROUGH MANUFACTURE *
