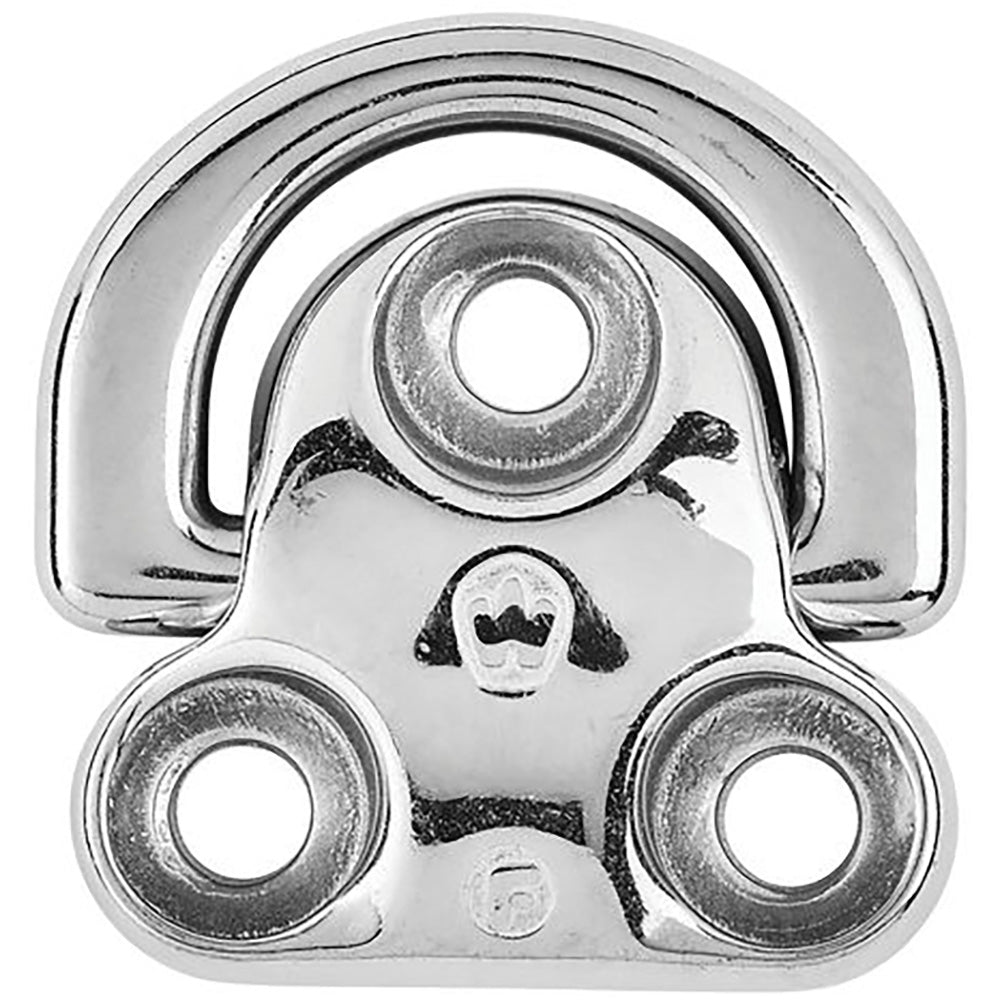

Folding Pad Eye - Diameter 25/64"
Features:
- Perfect solution for fastening applications (stay, blocks, jib tack point, lifeline, tether, etc...)
- Fully drop-forged product with outstanding working and breaking loads regardless of the angle of the load
- Modern and optimized design to suit the aesthetics of modern boats
- They can be folded down to minimize the risk of injuries
- The silicon pad eliminates noise and unpleasant vibrations
- Modern design
Applications:
- For any fastening/attachment application: shroud, stay, blocks, lifeline, jib tack point, etc…)
Specifications
Specifications
Identification
| MPN | 6606W |
|---|---|
| Barcode | 3587790066067 |
General
| Note 1 | Materials 17.4 pH stainless steel/316L stainless steel grade |
|---|---|
| Note 2 | Working load (lb) 8990 |
| Note 3 | Breaking load (lb) 19840 |
| Note 4 | Weight (lb) 0.783 |

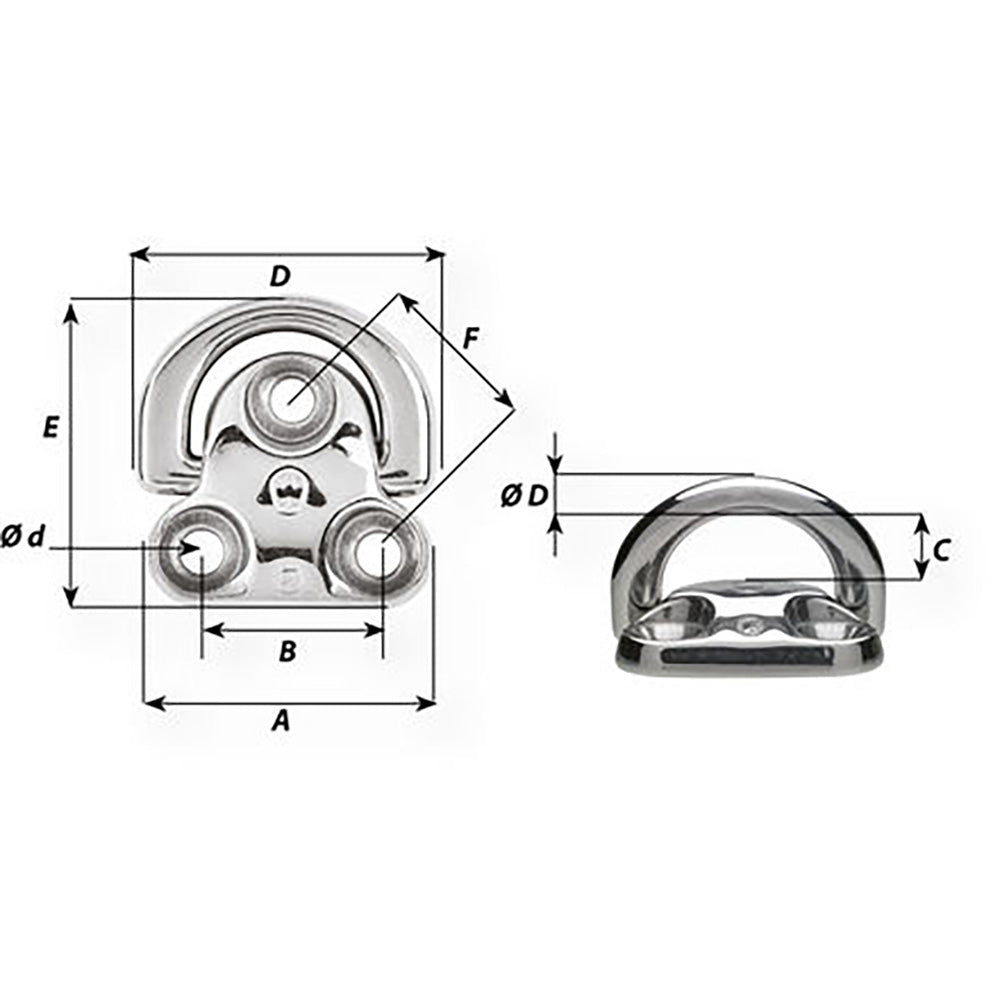

| Note 5 | A (inch) 2 61/64" |
| Note 6 | B (inch) 1 49/64" |
| Note 7 | C (inch) 63/64" |
| Note 8 | D (inch) 3 5/32" |
| Note 9 | d diameter (inch) 25/64" |
| Note 10 | D diameter (inch) 25/64" |
| Note 11 | E (inch) 2 43/64" |
| Note 12 | F (inch) 1 49/64" |
