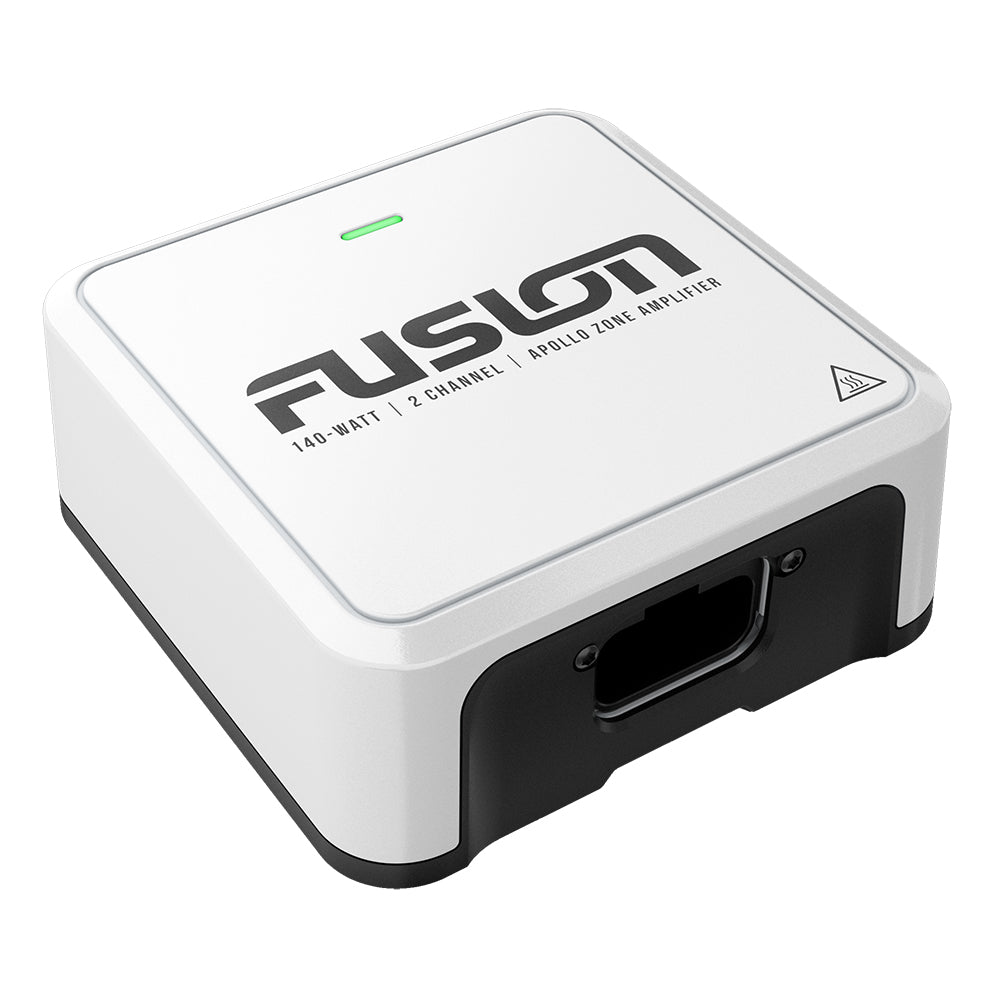

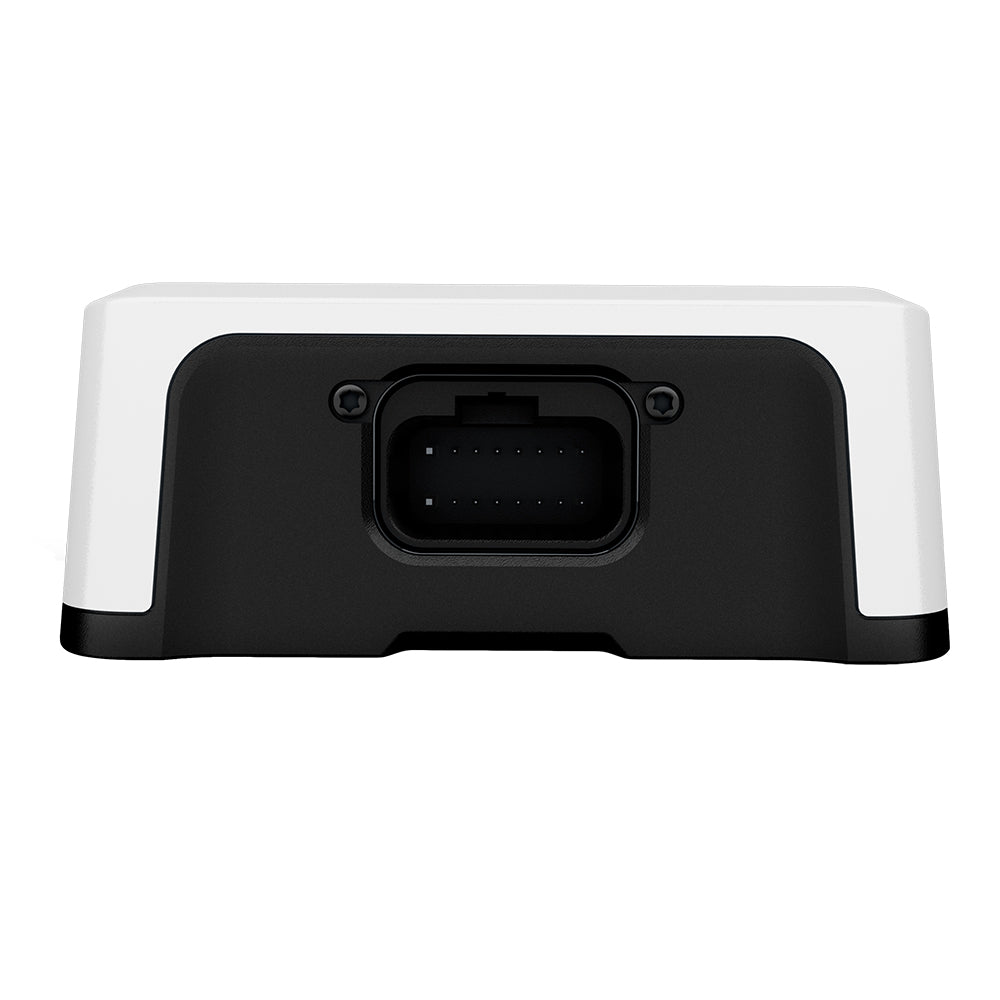

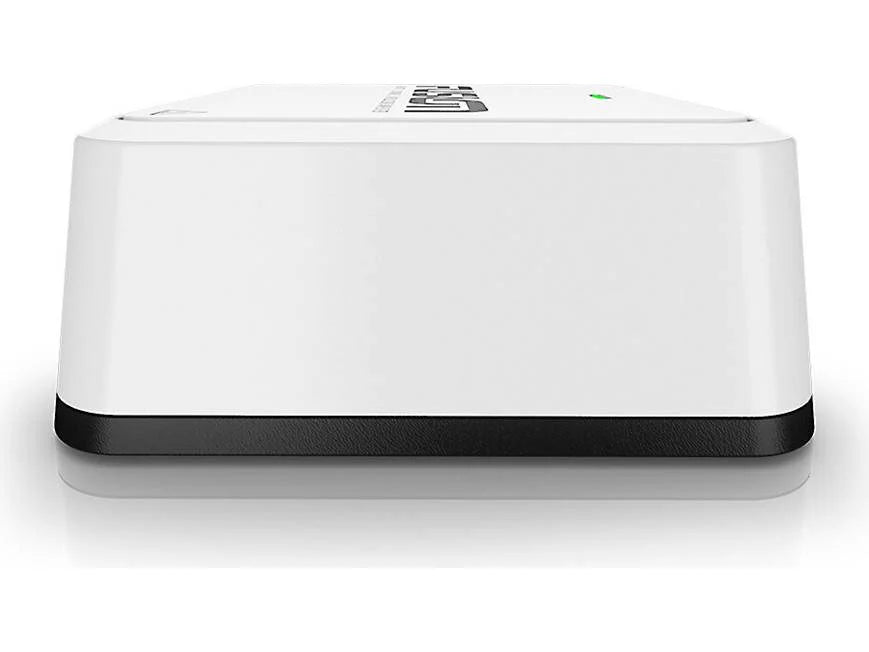

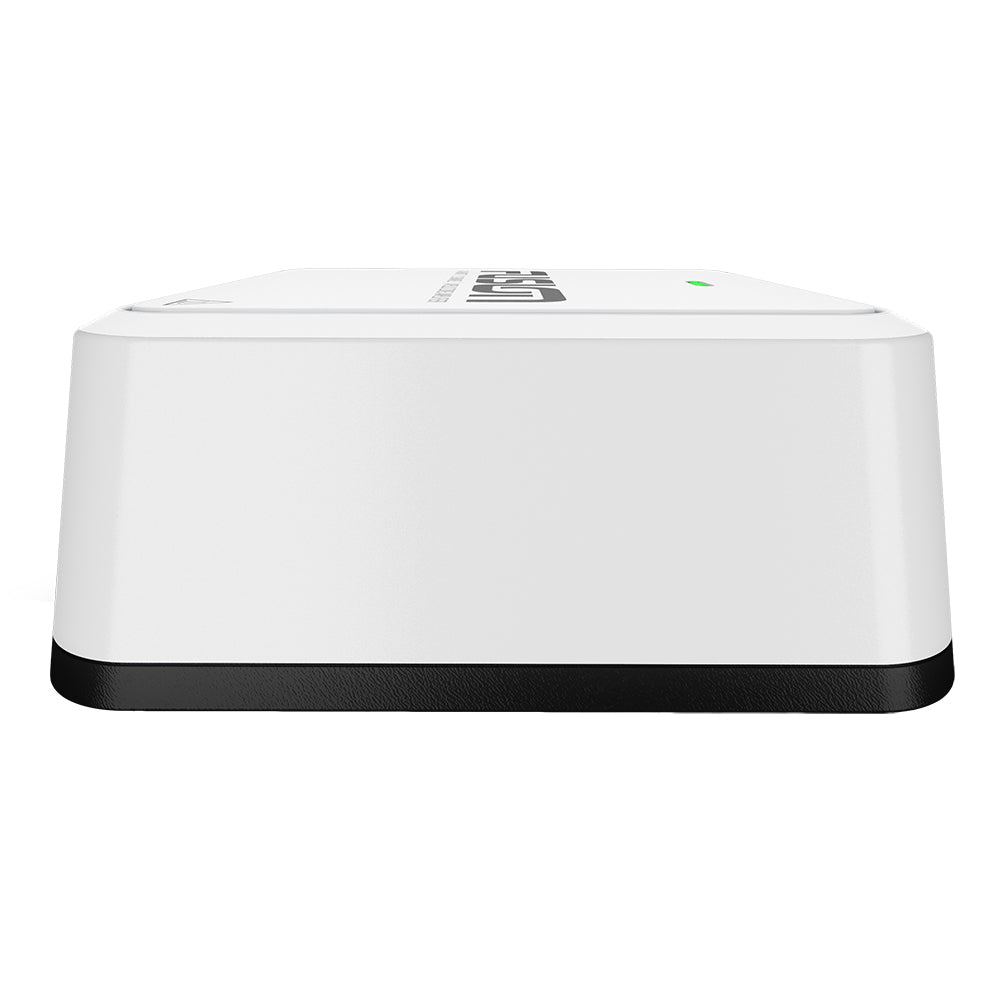

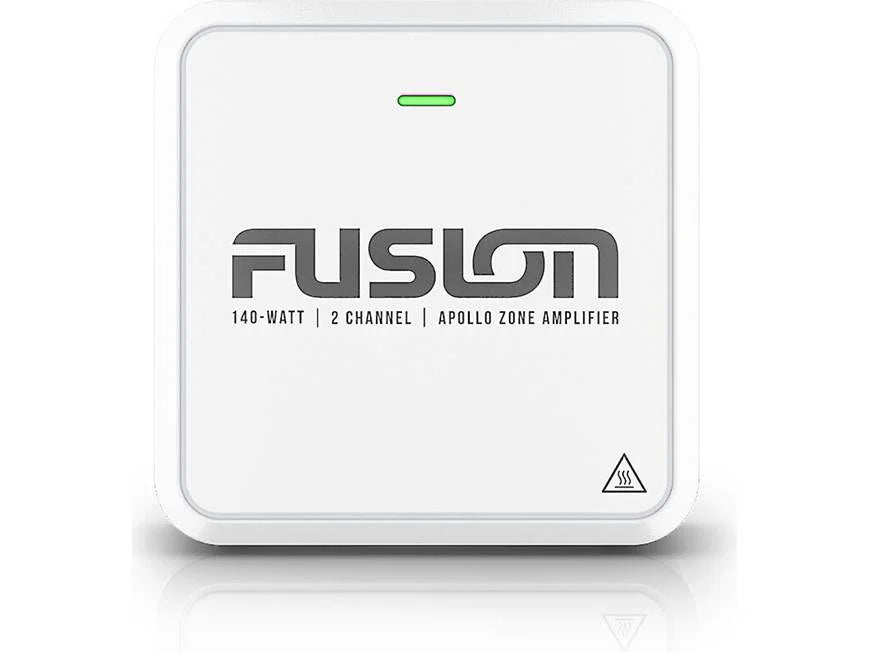

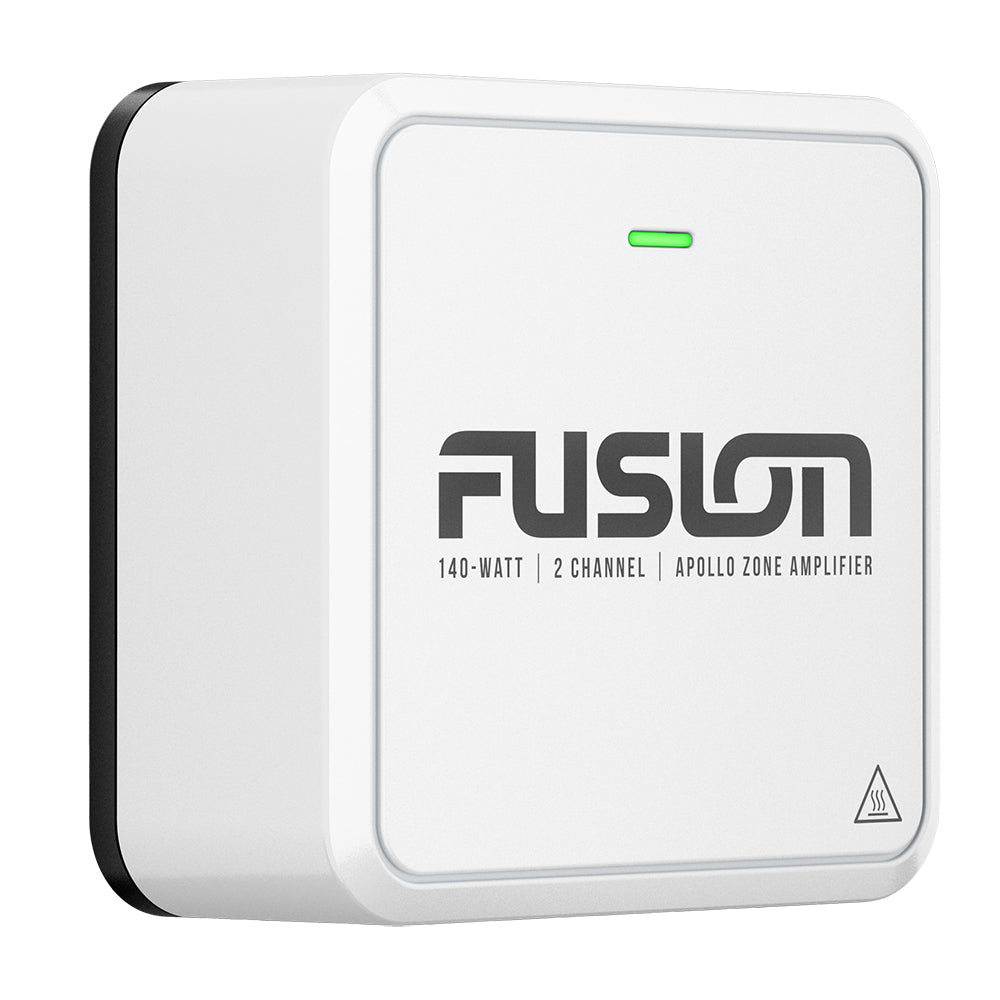

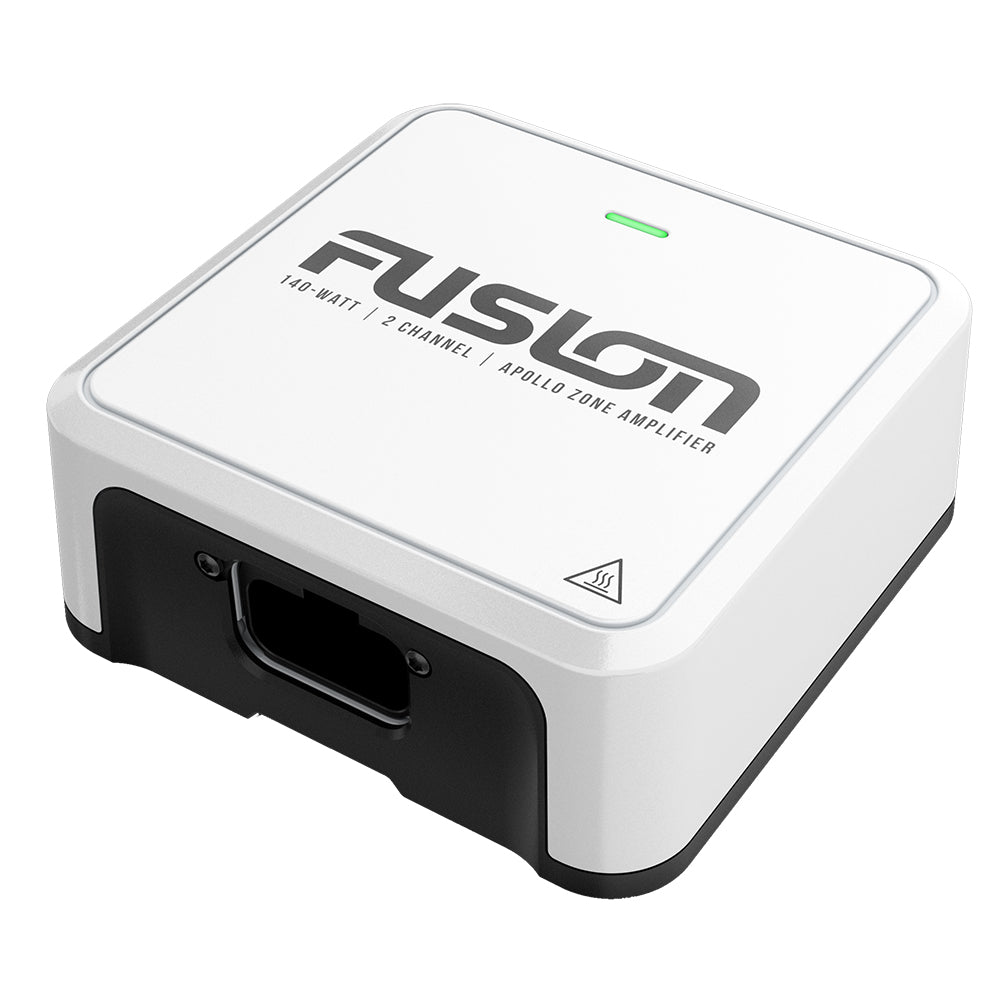

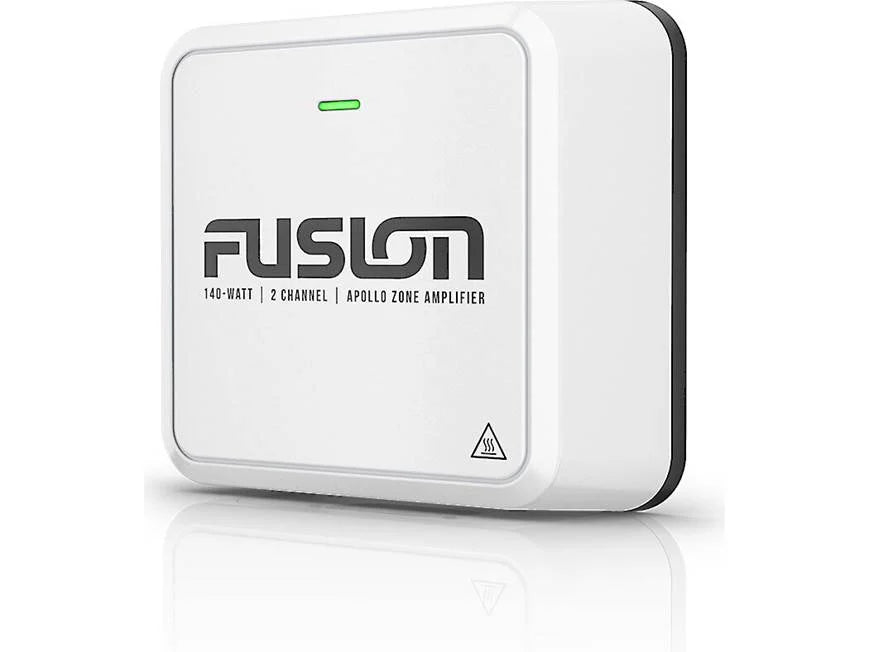

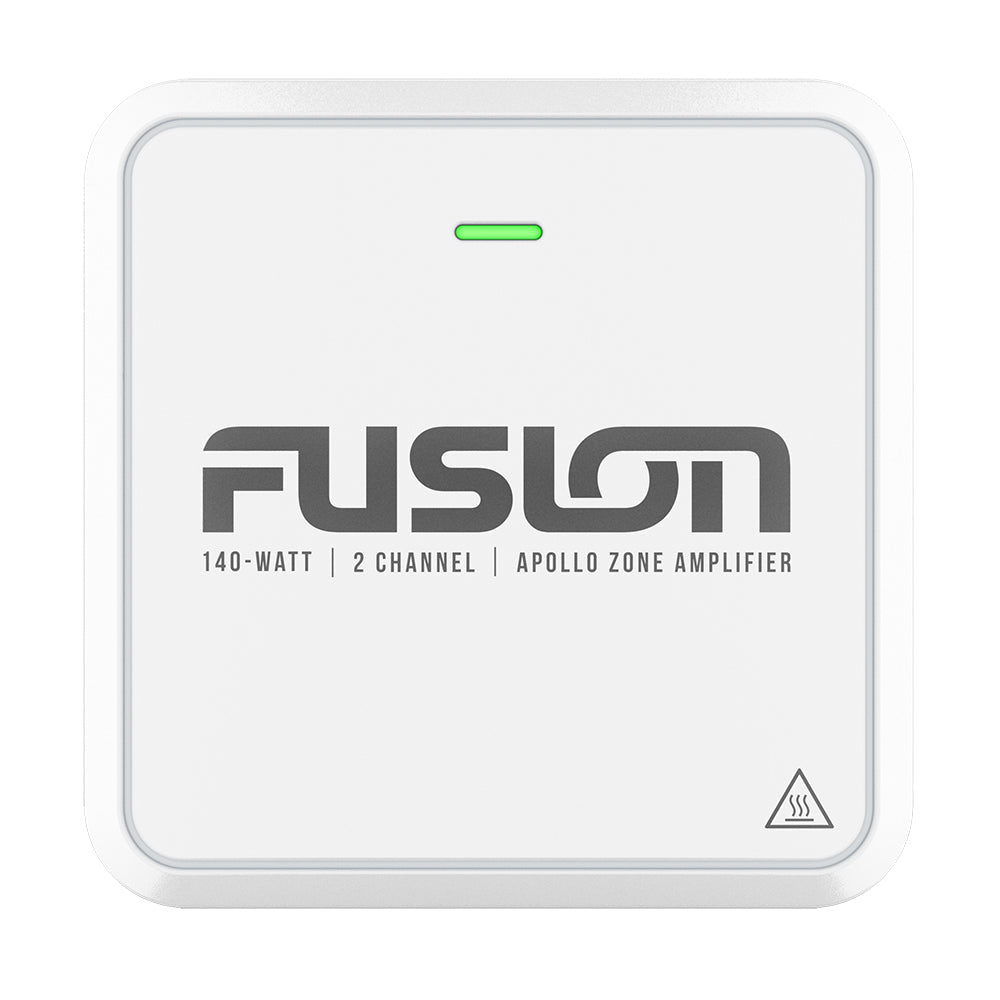

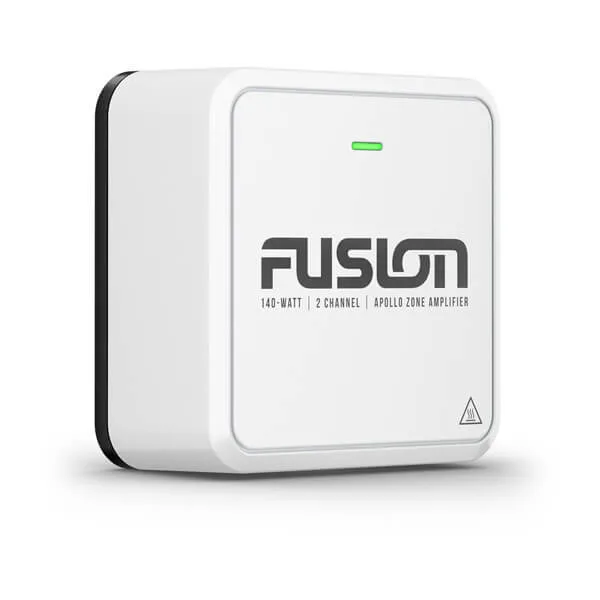

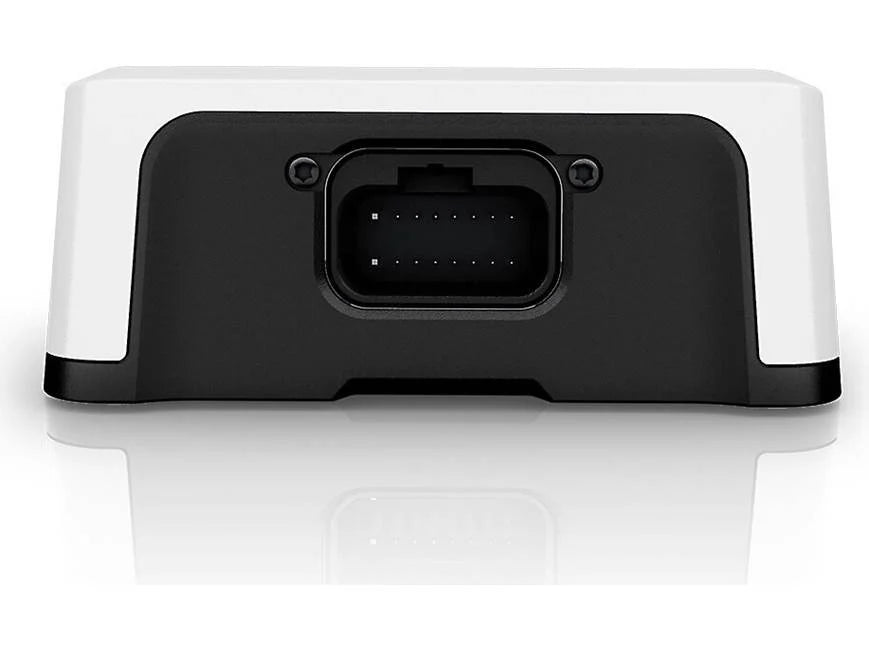

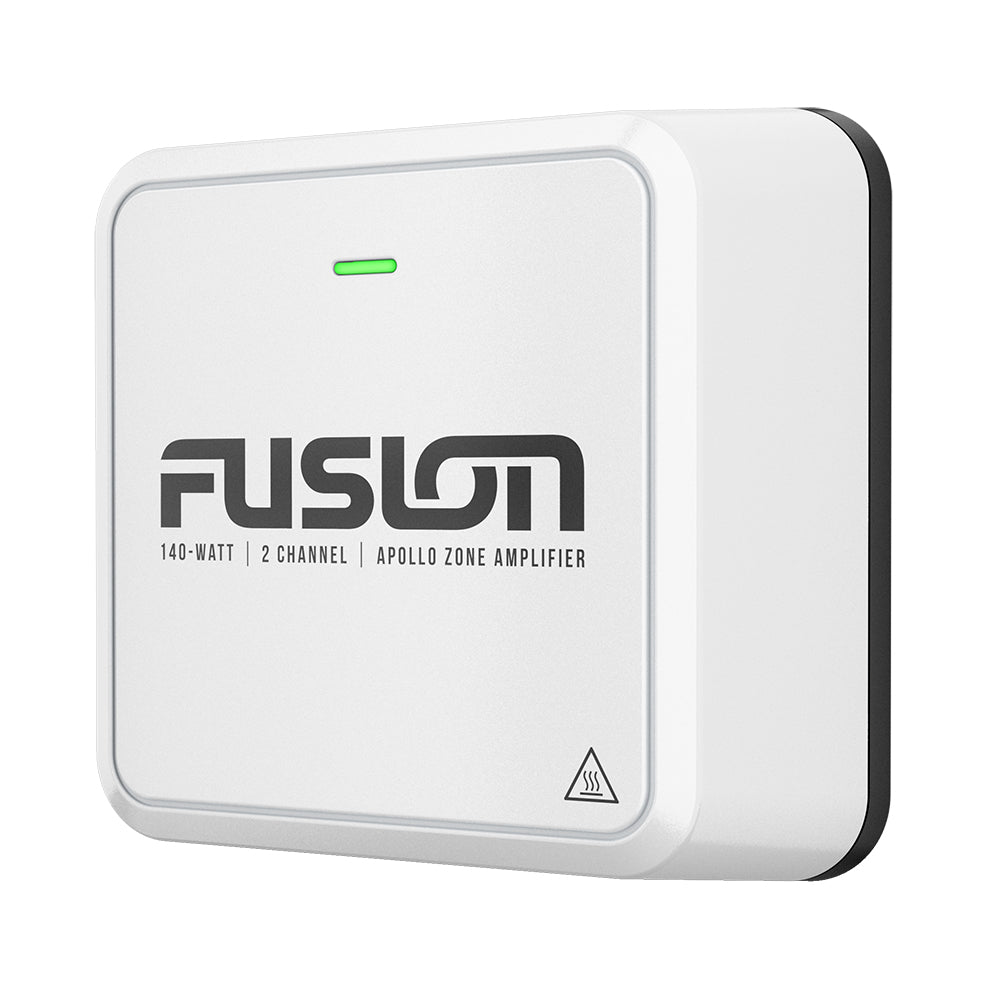

Amplificador Apollo de 2 canales (zona)

SKU: FUS/010-02569-00

$199⁹⁹

Same-Day Shipping Checking cutoff…

Garmin Authorized Dealer

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Descripción

ES LA DIFERENCIA ENTRE ESCUCHAR LA MÚSICA Y SENTIRLA

* Requiere radio con DSP Fusion habilitado *

Specifications

Identification

MPN	010-02569-00
Barcode	753759269753

Dimensions

Height	3.94" (100 mm)
Width	3.94" (100 mm)
Depth	1.57" (40 mm)
Weight	1.01 lbs (460 g)

Audio

Amplifier Class	Class D
Rated Continuous (RMS) Power (14.4 V input @ 4 Ohm < 1% THD)	20 W x 2
Rated Continuous (RMS) Power (14.4 V input @ 2 Ohm < 1% THD)	30 W x 2
Frequency Response (+0, -1dB)	20 Hz-20 kHz
Input Sensitivity @ RCA Inputs	0.45 V RMS
Input Voltage Range @ RCA Inputs	0.45 V RMS
Input Impedance	9 kΩ
Current Consumption (standby)	< 1 mA @ 14.4 V input
Current Consumption (idle)	< 0.04 A @ 14.4 V input
Current Consumption (max)	10 A
Fuse Rating	16 A electronic fuse (no replacement necessary)

General

Water and Dust Rating	IPX7
Operating Temperature Range	32° to 122° F (0° to 50° C)

Warranty/Certifications

Warranty	3 Years

Reseñas (1)

In The Box

In The Box:

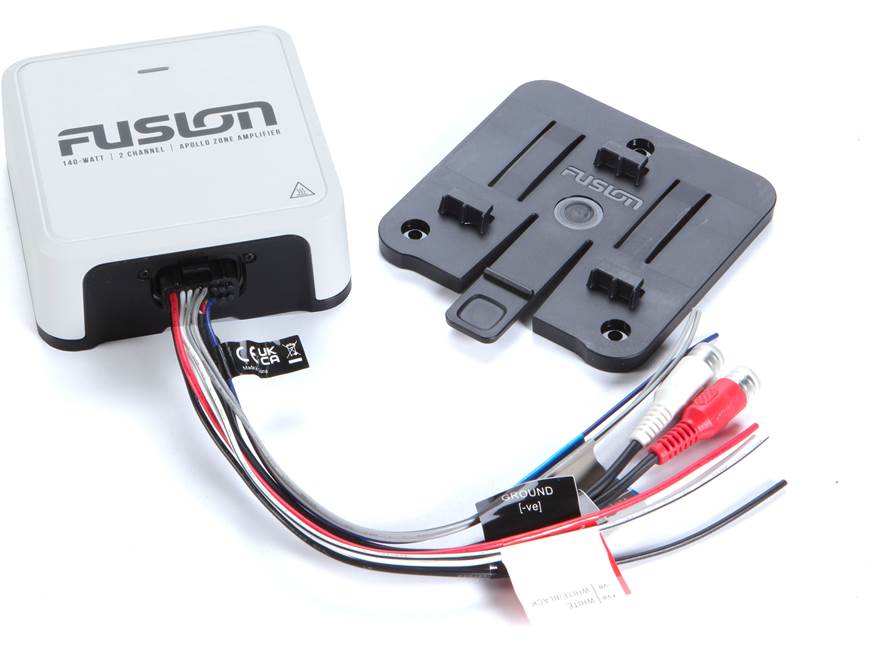

- Un amplificador de zona Apollo
- Un soporte de montaje
- Tres tornillos autorroscantes calibre 6
- Telar de cableado
- Instrucciones de instalación

Package Dimensions:

6" x 6" x 3"

Available Shipping Methods:

Ground
2 Day

Support

Installation Guide

* ALL WARRANTY IS THROUGH MANUFACTURE *
