Garmin | SKU: GAR/010-02092-50 | Código de barras: 753759285395

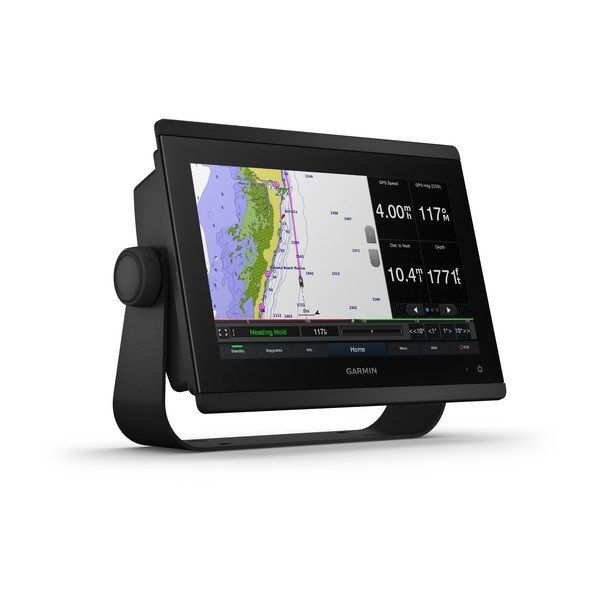

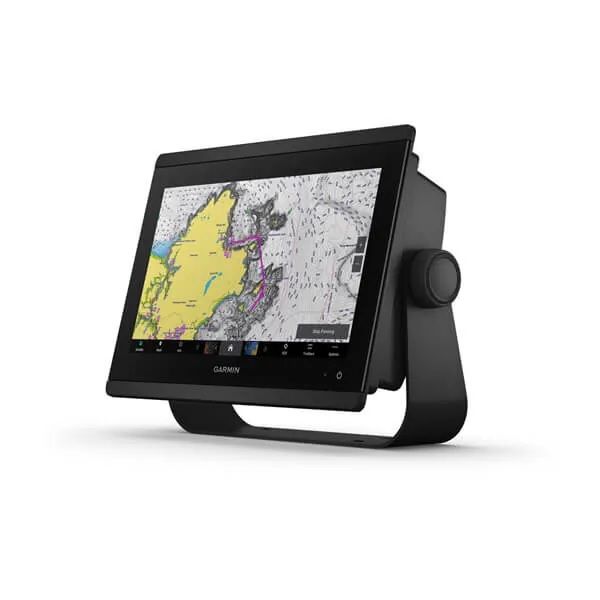

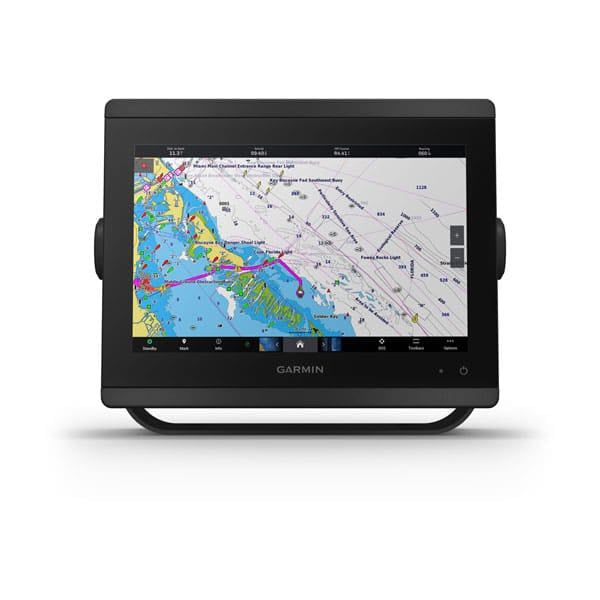

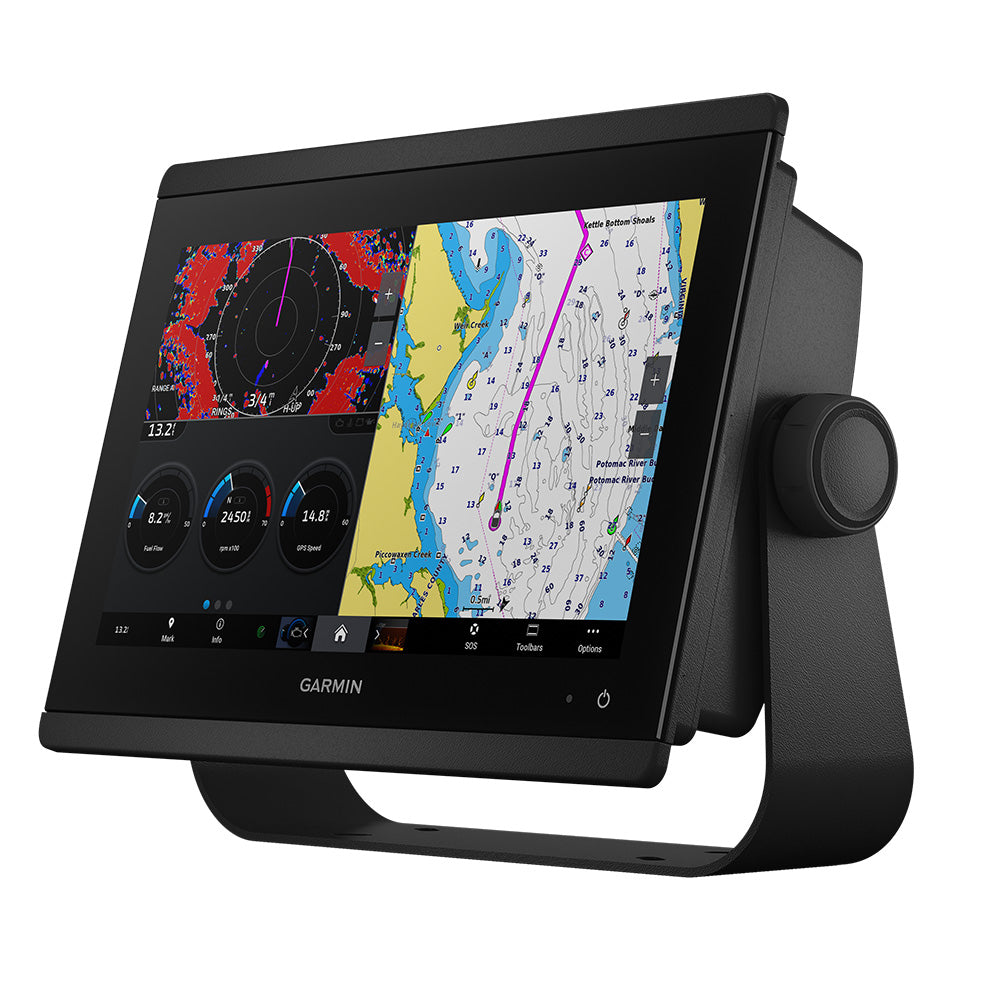

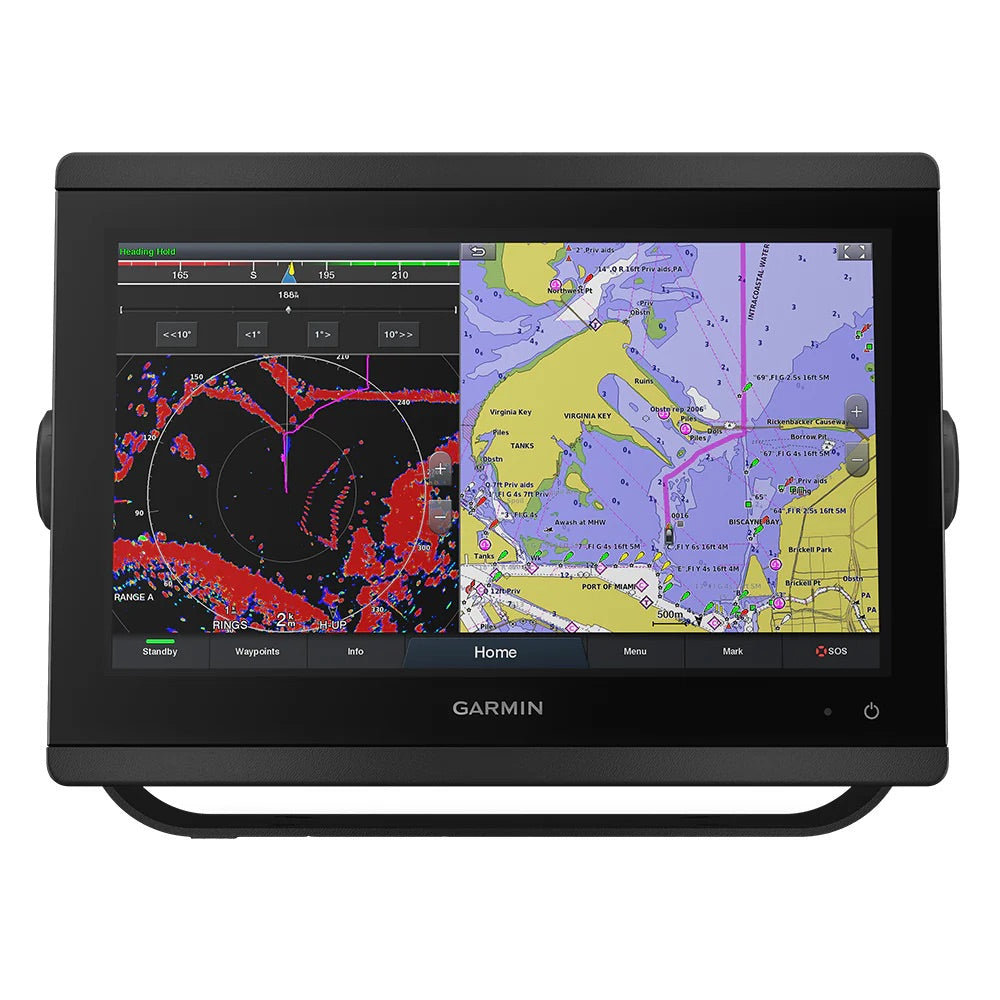

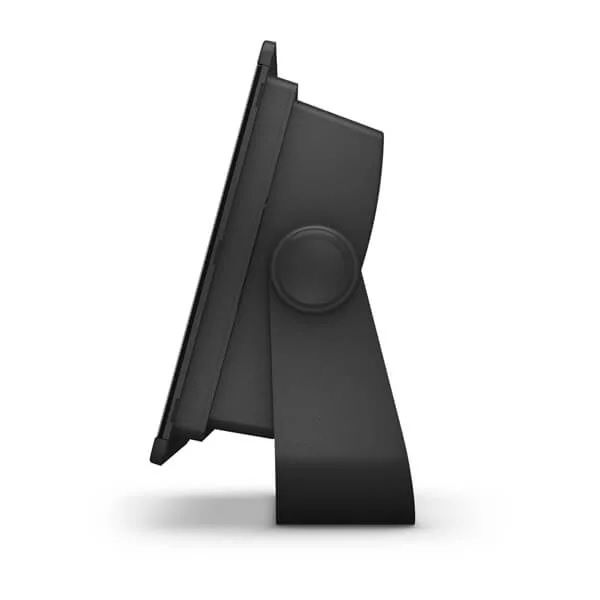

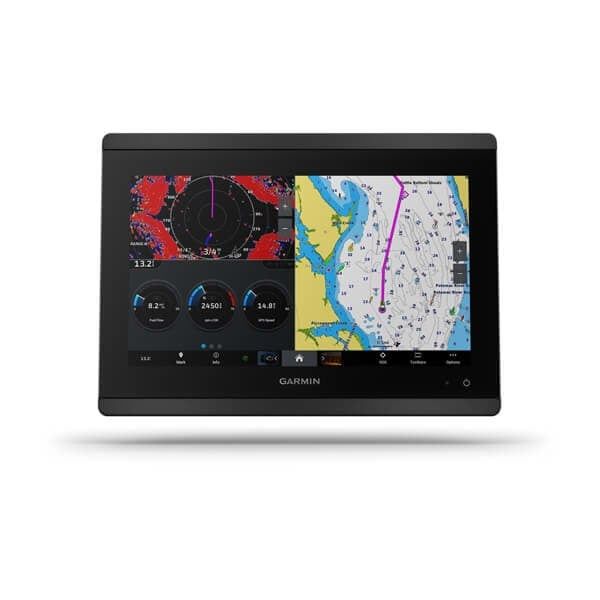

GPSmap 8612 Multi-Function Display

Name: GPSmap 8612 Multi-Function Display
Brand: Garmin
SKU: GAR/010-02092-50
Price: 3799.99 USD
Availability: InStock

12" MFD w/ Navionics+

$3,799⁹⁹

Options

GPSmap 8412 Multi-Function Display

12" MFD

GPSmap 8412xsv Multi-Function Display

12" MFD w/ Built-In Sonar

GPSmap 8612 Multi-Function Display

12" MFD w/ Navionics+

Pantalla multifunción GPSmap 8612 (cartografía Navionics+)

12" MFD w/ Built-In Sonar & Navionics+

Need This Product Installed?

We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL

Click Here To Set Up Your Installation

Descripción

SERIOUS ANGLERS, CRUISERS, SAILORS AND SAIL RACERS DEMAND SERIOUS EQUIPMENT

PRELOADED MAPPING

Experience unparalleled coverage and detail with built-in Garmin Navionics+^™integrated coastal and inland mapping that includes Auto Guidance+^™technology and a 1-year subscription for downloadable daily updates and more on select chartplotters.

HD IPS TOUCHSCREEN

this display offers wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses.

SMARTMODE STATION CONTROLS

Get quick, one-touch access to the information you need to ease high-stress situations such as docking. You can incorporate networked sonar, radar, cameras, media and more.

SAILING POLARS

Use the polar table to see key data, including how fast you should go at a certain wind angle and speed — so you know whether you need to adjust sail trim.

Especificaciones

Product Series

GPSmap 8000
MPN

010-02092-50
Physical

Dimensions: 11.9" x 8.5" x 3" (30.3 cm x 21.6 cm x 7.6 cm)
Weight: 6.0 lbs (2.7 kg)
Mounting

Type: Bracket, Flush or Flat
Cutout: 11 9/16" x 7 3/8" (292.9 mm x 187.9 mm)
Power

Input: 10-32v DC
Typical Draw: 1.3 A @ 12v
Max Draw: 6.0 A @ 12v
Screen

Touchscreen: Yes
Type: FHD, IPS
Size: 11.6"
Resolution: 1920 x 1080
Sonar

No (Requires Sonar Module or Networked XSV Unit)

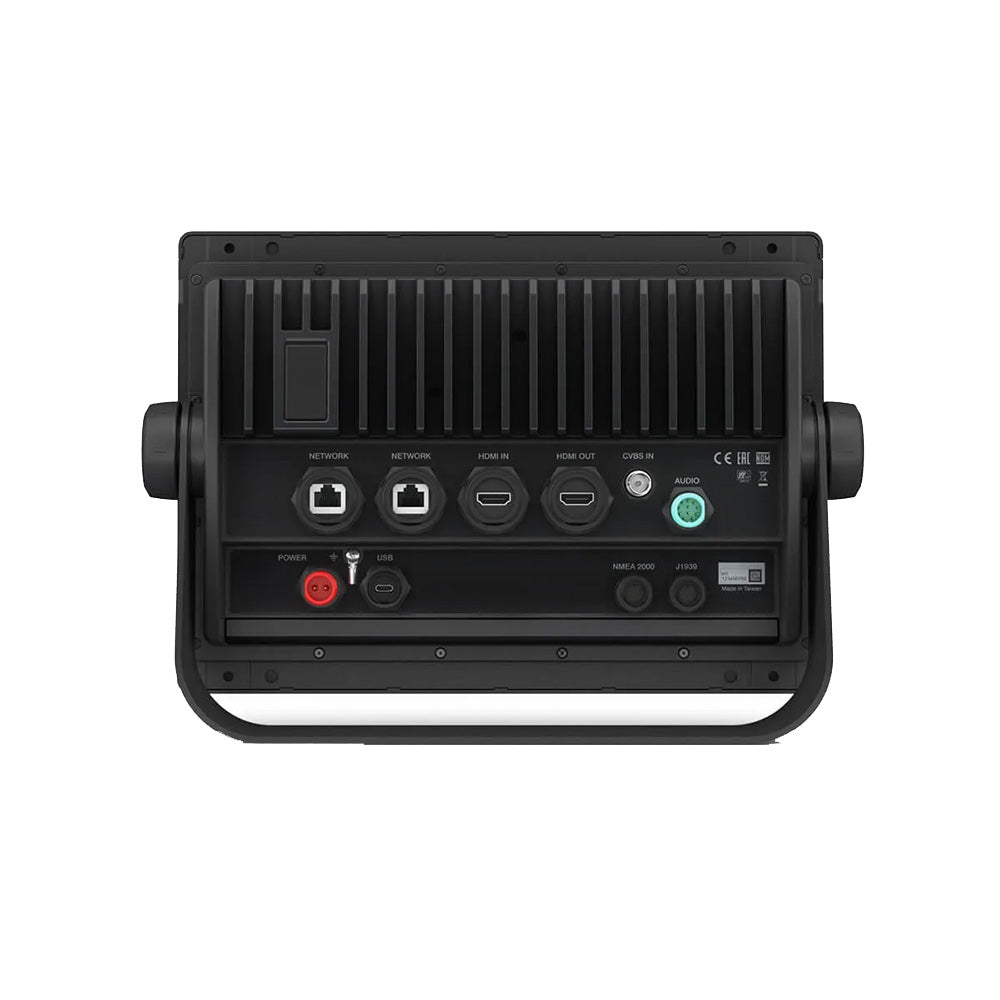

Connectivity

Built-In GPS: Yes - 10 Hz
SD Cards: Yes - microSD (2)
Wireless: WiFi, Bluetooth, ANT+
Network: Marine Network Large (2)
NMEA 0183: Yes (Requires Accessory)
NMEA 2000: Yes
J1939: Yes
Analog Video In: Yes
HDMI In: Yes
HDMI Out: Yes
USB: Yes
Sonar: Yes - 8pin / 12pin
Built-In Chart

Garmin Navionics+
IP Rating

IPx7

Reseñas (0)

In The Box

In The Box:

GPSmap 8612xsv
Power Cable
NMEA 2000 Drop Cable
NMEA 2000 T-Connector
Bail mount with knobs
Flush Mount Kit
Sun Cover
Trim Piece Snap Covers
Documentation

Package Dimensions:
