NMEA 2000 Bulk Cable (328')

Confirmed with full spec detail. Key distinction from the NavStore listing: CG1-100C is a single continuous piece on a 100-meter spool (vs. CG1-100 which is two pieces on a 100-meter spool). Cable construction confirmed from ProPride Marine's spec table: 2x16 AWG (1.29mm) power wires, 2x20 AWG (0.81mm) data wires, 20 AWG (0.81mm) drain wire, PVC gray outer jacket. Max 4A. Field-attachable connectors sold separately — FA-CM-ST, FA-CF-ST, FA-CM-90, FA-CF-90.

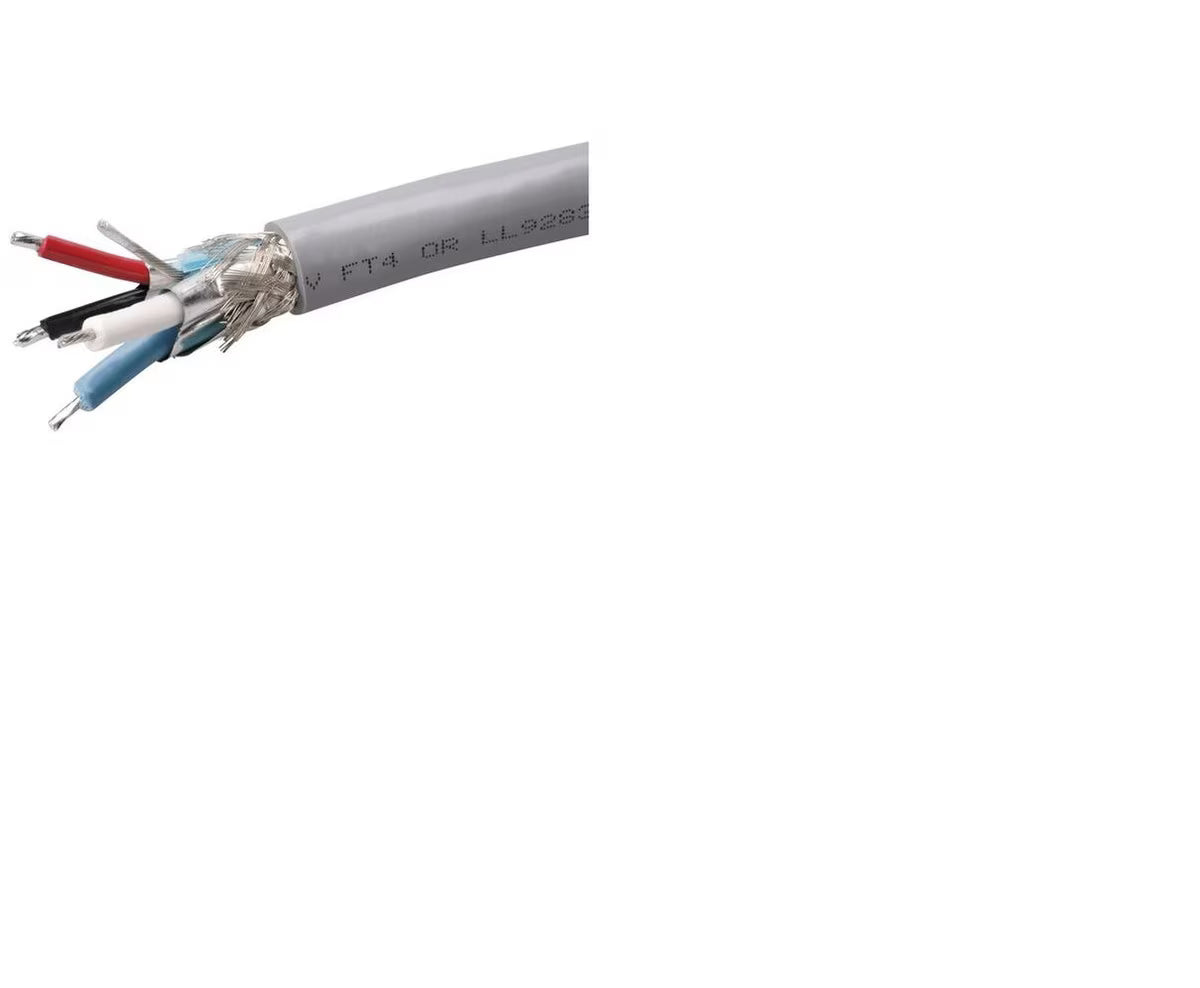

Maretron CG1-100C Micro Bulk Cable — Gray, 100 Meter Single-Piece Spool

A 100-meter spool of Micro-format NMEA 2000 bulk cable — cut to exact lengths on the job and terminate with field-attachable connectors for a clean, custom-length installation without pre-made cable waste.

Why It's Worth It
Pre-made drop cables come in fixed lengths that either leave excess cable coiled up or come up short. Bulk cable solves that: buy the spool, cut each run to the precise length the installation needs, terminate with field-attachable connectors (FA-CM-ST, FA-CF-ST, FA-CM-90, FA-CF-90 — sold separately), and every cable fits perfectly. Meets and exceeds NMEA 2000 specifications for both trunk and drop cable use, though the 4A maximum current limits its trunk use to smaller networks — for larger networks, use Mid-format cable (DG1-100C) instead.

Important Note on Spool Configuration
The CG1-100C is a single continuous 100-meter piece on a spool — not two 50-meter pieces. If you need two shorter pieces on one spool, that's the CG1-100 (different part number). Spools of cable are non-returnable once opened — confirm quantity needed before ordering.

Use

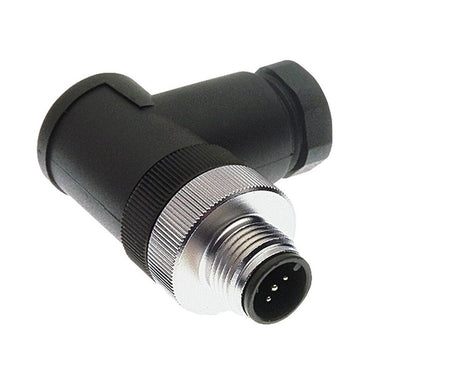

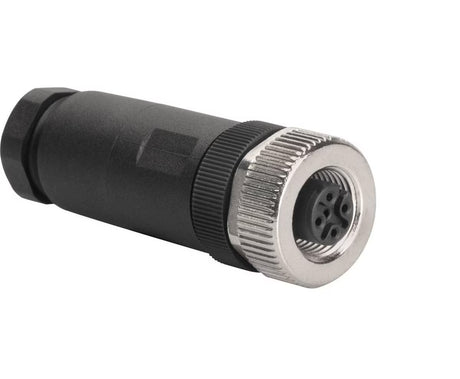

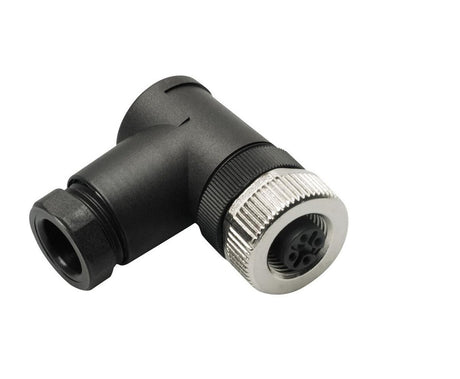

Used with Maretron Micro field-attachable connectors (FA-CM-ST, FA-CF-ST, FA-CM-90, FA-CF-90) for custom-length trunk or drop cables. Primarily used as drop cable; suitable as trunk cable for networks not exceeding 4A total current draw. Compatible with all Maretron Micro and Mid connectors and tees.

In The Box:

328' (100m) Gray Micro Bulk Cable on Spool

Package Dimensions/Shipping:

Qualifies for Ground Program

Product Support:

Subscription Information:

Release Date:

Warranty:

* ALL WARRANTY IS THROUGH MANUFACTURE *
