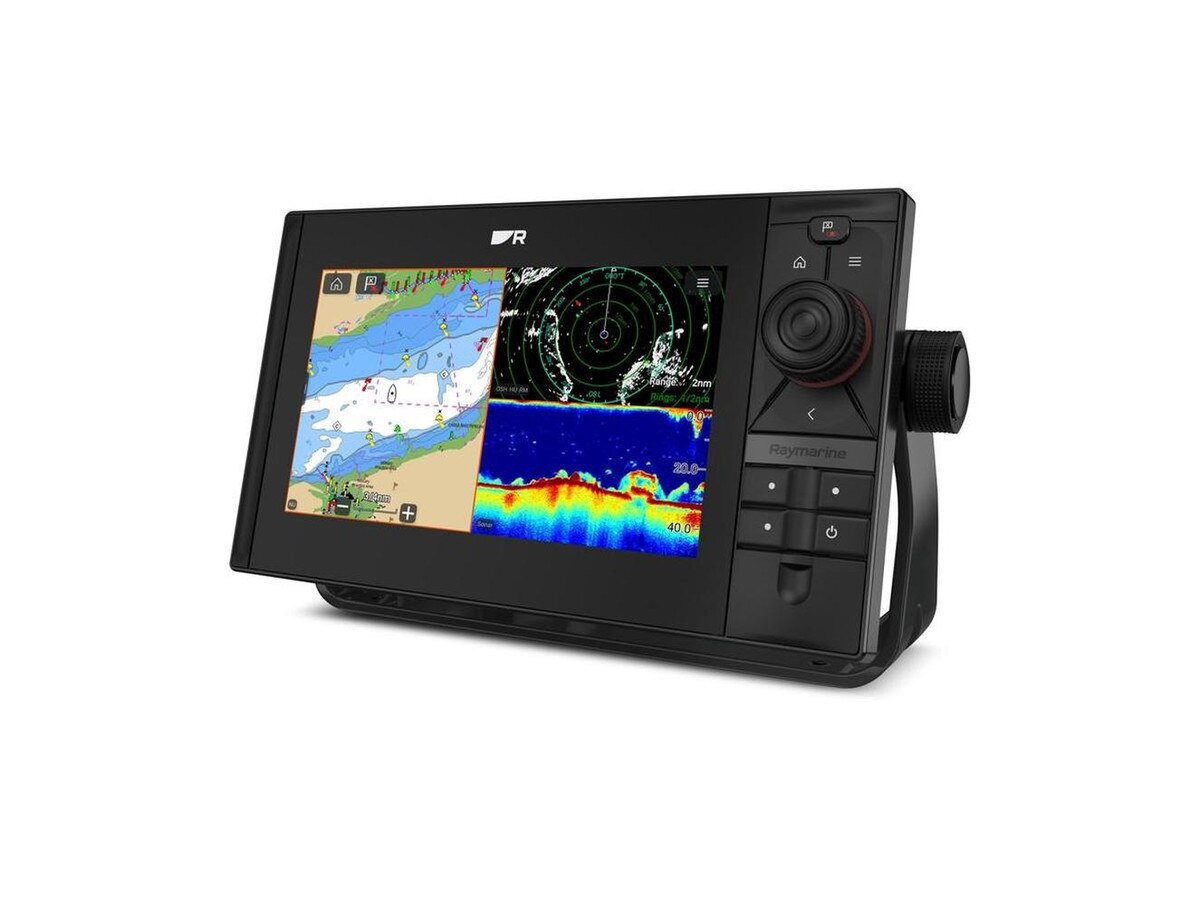

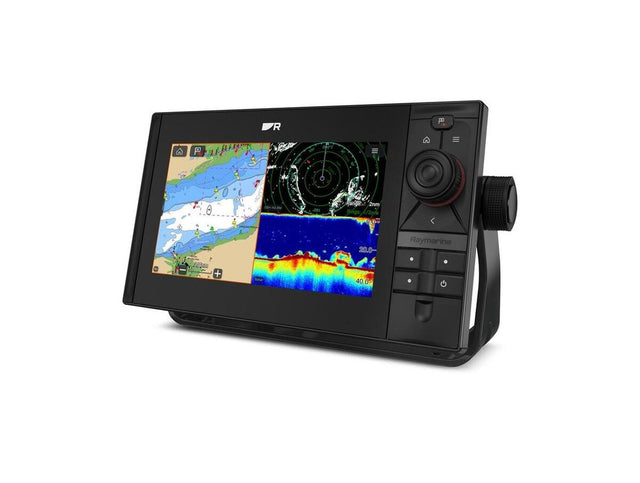

Axiom 2 Pro 9 S 9" Chartplotter/Fishfinder with Lighthouse North America Chart - No Transducer
Axiom 2 Pro combines chartplotter, sonar, radar, autopilot, and video into a powerful all-in-one navigation system. With Axiom 2 Pro, you can navigate smarter and expand your system, thanks to the super intuitive LightHouse operating system. Plan your next trip and get underway confidently with Axiom 2 Pro’s HybridTouch™ — a simple touchscreen and keypad experience. Axiom 2 Pro S chartplotters feature built-in single channel High CHIRP sonar- the ideal sonar solution for reliable depth sounding and underwater exploration. Available in 9, 12, or 16-inch display sizes, Axiom Pro 2 is the perfect cruising companion.
Features:
- Get underway faster with a fast 6-core processor
- HydroTough™ nano-coating repels water for reliable touchscreen control and superior sunlight visibility
- Confident HybridTouch™ control plus an interchangeable autopilot keypad or user-programable soft keys
- Integrated High CHIRP sonar with transom, in-hull, and low-profile through-hull CPT-S series transducer options
- Smart backlighting and an ambient light sensor automatically adjust display brightness for day and evening
- Create your own Axiom 2 Pro system with multiple networked Axiom displays
- Stay entertained with streaming Apps and Axiom 2 Pro’s HDMI and audio output for remote displays and marine entertainment systems
Specifications
Specifications
Identification
| MPN | E70653-00-102 |
|---|---|
| Barcode | 723193843857 |

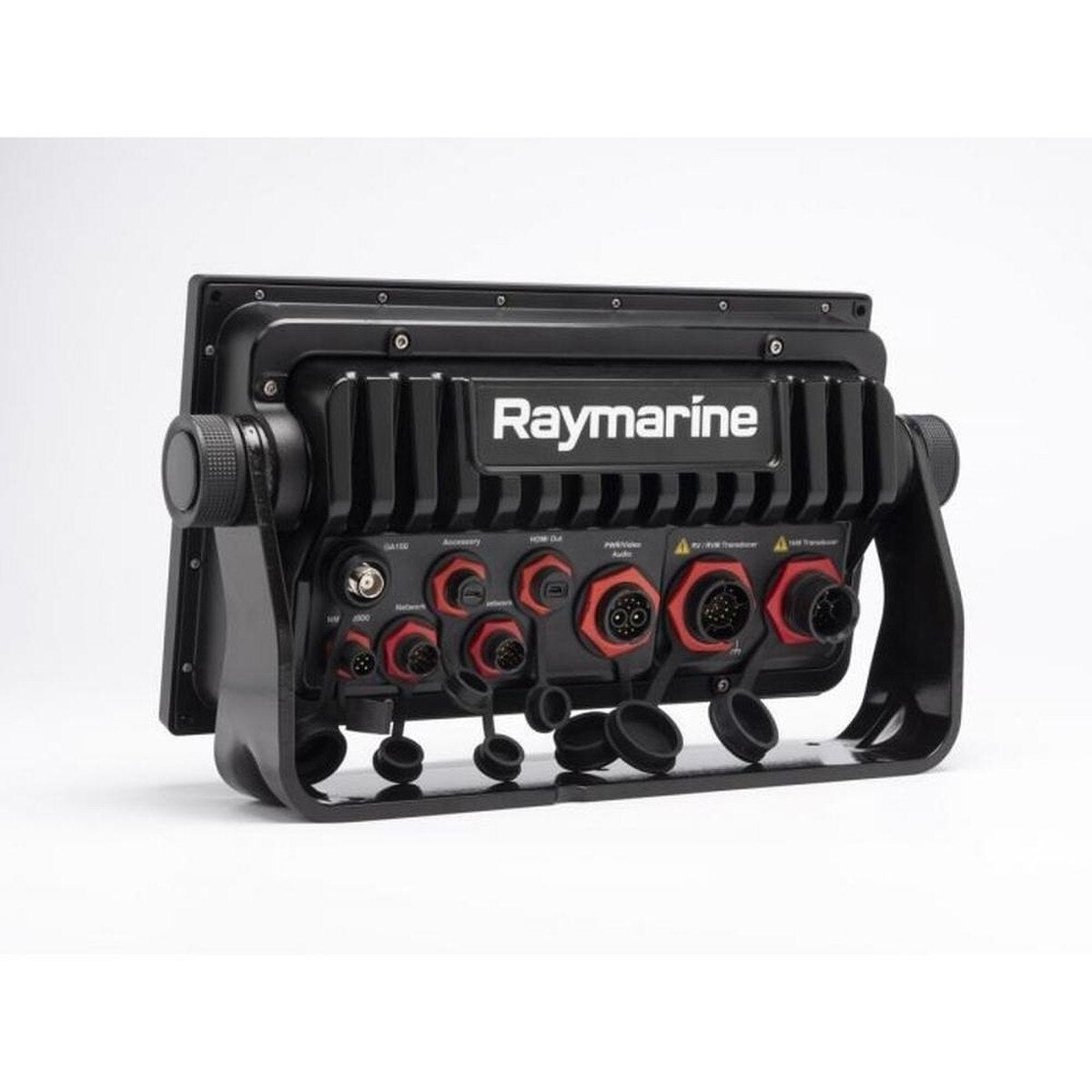

Connections:
| Digital Video & Audio Out Connection | HDMI Out Micro connector type D’ |
|---|---|
| External GPS Antenna Connection | TNC connector |
| Accessory connection | USB Micro B (rear – charging, external storage device or RCR-SD/USB Accessory (A80440) |
| Ethernet connection | RayNet (10/100/1,000 Mbits/s) x2 |
| External storage | MicroSD card slot x2 (front) |
| Chart options | Navionics+ or Navionics Platinum or C-map 4D Software |
| Note 1 | Lighthouse North America Chart included |
| NMEA 2000 connection | DeviceNet connector |
| Analog video connections | BNC Analog video input (on power cable) |
| Wireless connections | Bluetooth: V4.0, Wi-Fi: 802.11/b/g/n |
| Transducer connection | 25-pin RealVision type connector (requires adaptor cable) |
| Audio connections | Left and Right RCA connectors via Power/Video/Audio cable |
GPS:
| GNSS compatibility | GPS, Galileo, GLONASS, Beidou |
|---|
Sonar:
| Channels | CHIRP conical sonar ( USES CPT-S TRANSDUCERS with adapter cable A80490) |
|---|---|
| Depth range | 0.6 m (2 ft) to 274 m (900 ft) Depending on water conditions |
Lighting:Illumination: Axiom 2 Pro 9 1300 nits / 1300 cd/m2, Axiom 2 Pro 12 & 16 1200 nits / 1200 cd/m2Storage:
| Internal storage | 64 GB Solid State |
|---|
