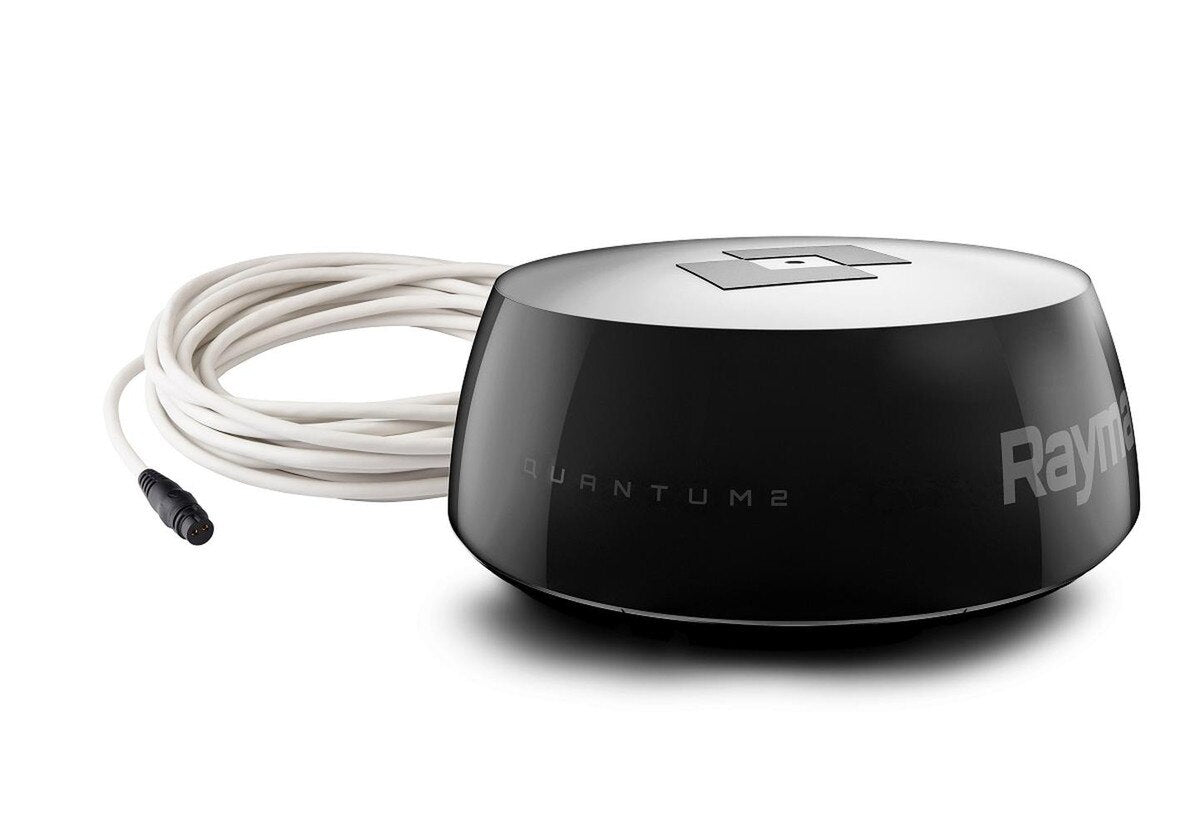

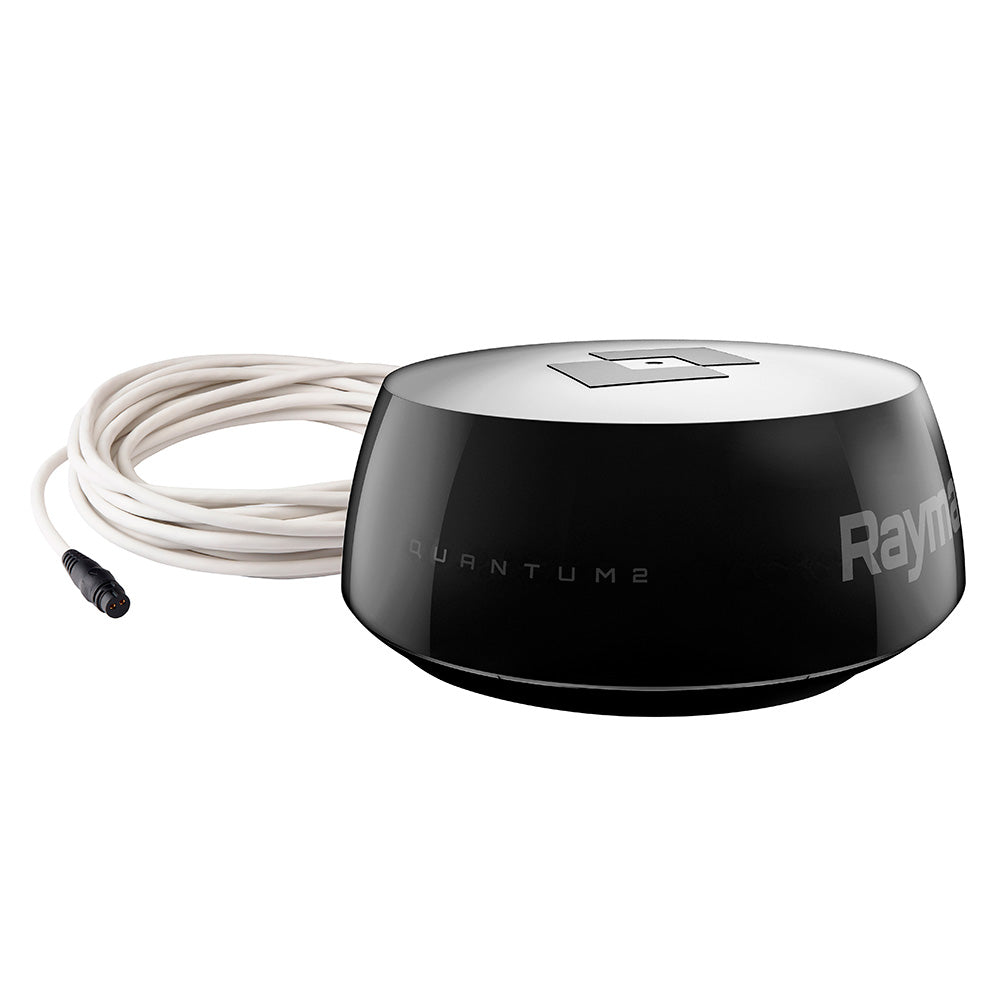

Raymarine Black Q24D Quantum 2 Doppler Radar w/10M Power & Data Cables

Black Q24D Quantum 2 Doppler Radar with 10M Power & Data Cables

Keep inexperienced boaters and hidden dangers at bay, even in the most congested waterways.

Quantum™ 2 with Doppler collision avoidance technology makes it easy to discern potentially dangerous targets when navigating in high-traffic areas. Using advanced Doppler processing, Quantum 2 instantly highlights moving radar contacts and color codes to indicate whether they are inbound or outbound.

Features:

• Black radome enclosure
• WiFi and Ethernet
• 10M power and data cables are included
• Quantum 2 Doppler Radar, perfect for sailboats, RIBs, and smaller powerboats
• Available as a standalone scanner with power and data cable
• Provides excellent short-range detection and enhanced target detail with an 18’ (6m) minimum range
• Simplified, fast installation, and the ability to utilize existing Raymarine scanner fixing points
• Once installed, Quantum 2 starts right up and immediately provides awareness

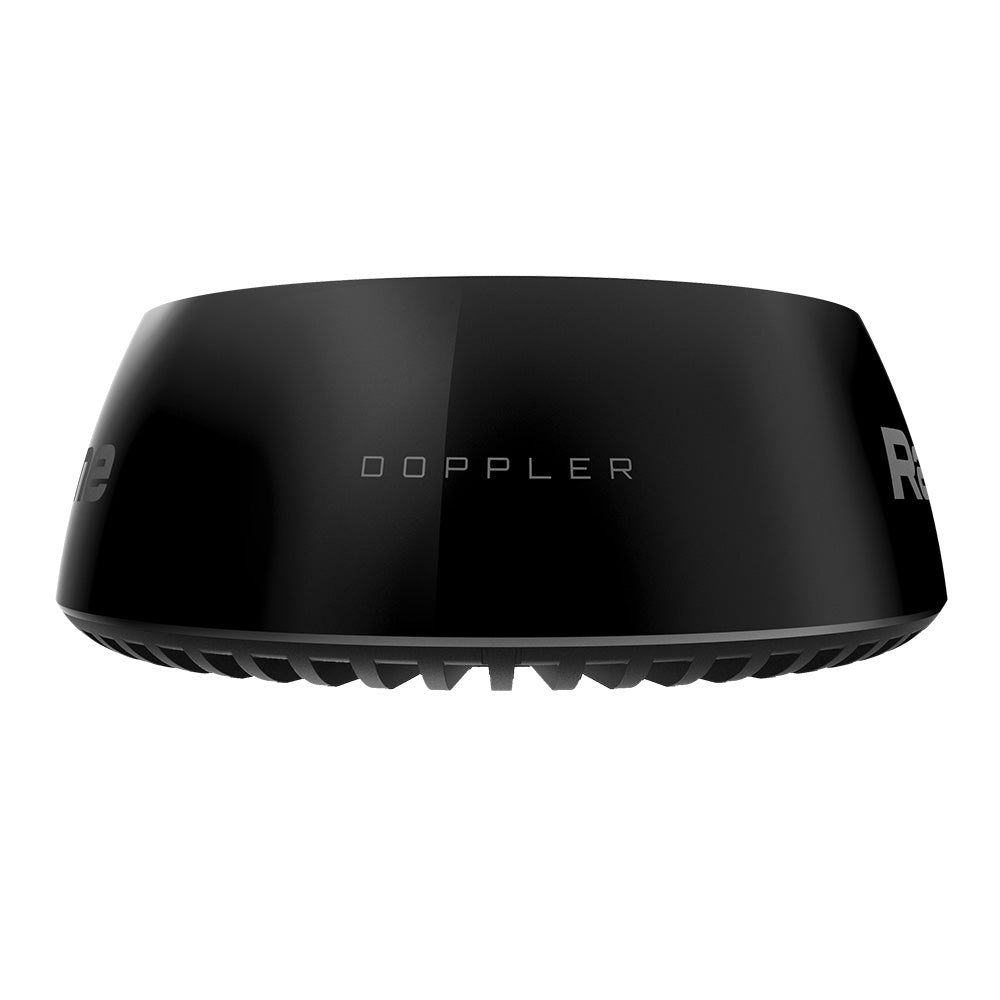

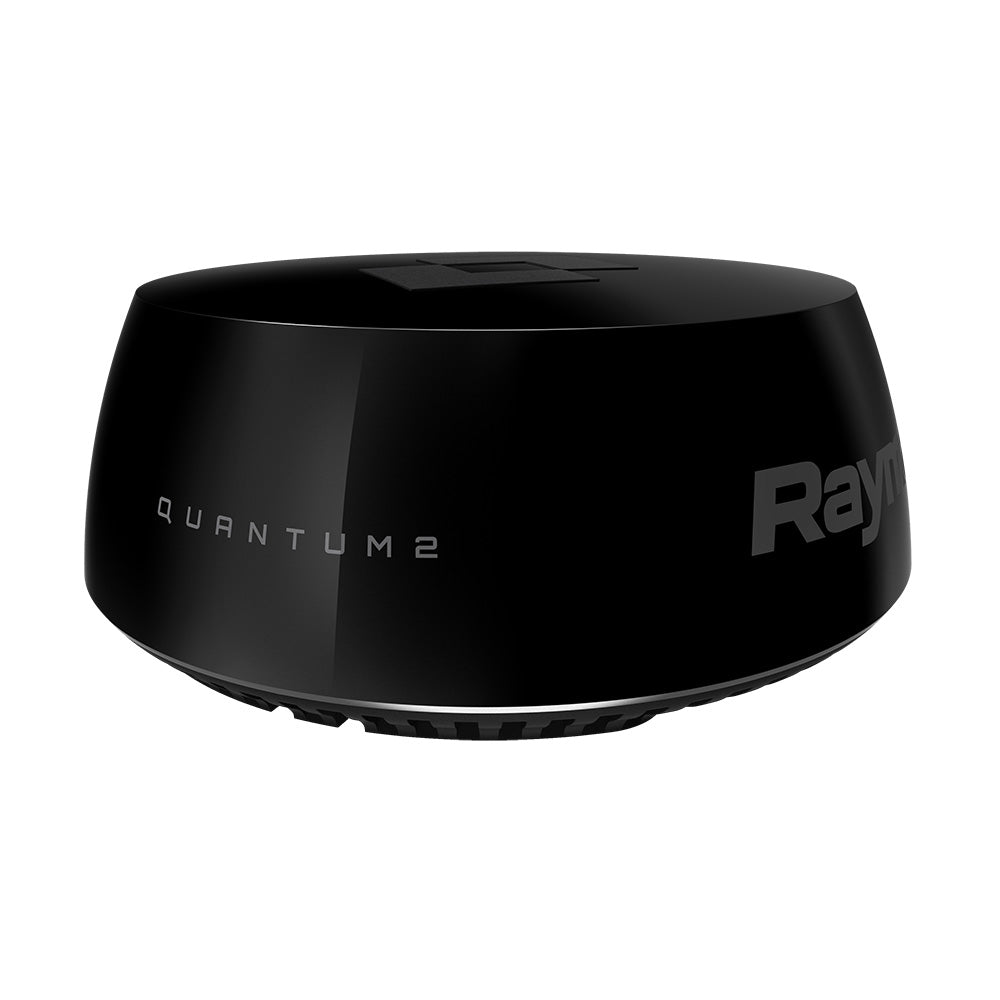

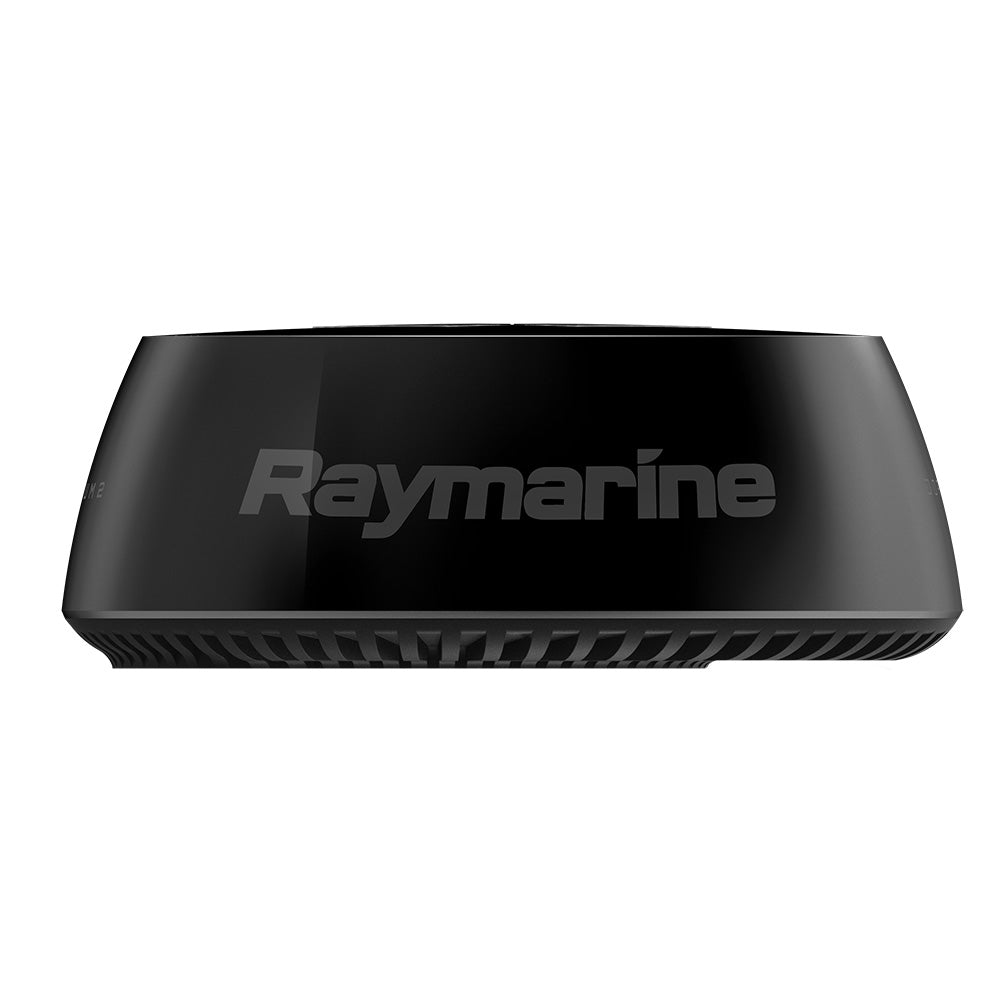

Quantum 2 Black: Stay Aware With Style

Offering confident radar navigation and style, Quantum 2 Black adds a level of sophistication to any vessel.

Quantum 2 Black offers the same performance and safety-enhancing Doppler target tracking as the original white Quantum 2 in premium black housing.

Superior Collision Avoidance

Raymarine Quantum 2 Doppler target processing identifies and color codes moving radar contacts for instant recognition and reduced risk of collision.

Quantum 2 MARPA mode provides an effective means of dangerous target tracking and is the same technology trusted by the United States Coast Guard.

What’s In The Box:

• 18 in. black radome
• Power cable 10M (32.8 ft.)
• Data cable 10M (32.8 ft.)
• Fixing bolts with spring washers and flat washers (M8) x 4
• Documentation

General Specifications:

Transmitter Specifications:

• Standby Mode: Scanner rotation - OFF | Scanner transmission - OFF | Wi-Fi link – ON

Antenna Specifications:

Receiver Specifications:

Doppler Specifications:

• Target Filtering: True Motion Mode identifies only those objects that are moving relative to the vessel

Compatibility Specifications:

• Performance: Lightweight and easy to install. Excellent short and long-range performance. Detect targets as close as 18ft

Radar Specifications:

• Pulse widths (3 dB)
• 40 ns to 14.7µs

Conformance:

• Standards: USA: 47CFR FCC Part 2 & Part 80 Certificate of Approval, Canada: RSS138 Iss. 1 Technical Acceptance Certificate, European Union & EFTA: Radio Equipment Directive 2014/53/EU Certificate of Opinion, Australia / New Zealand: ACMA Declaration of Conformity Compliance level 3

Environmental Specifications:

Physical Specifications:

In The Box:

Black Quantum 2 radome
M8 mounting bolts with spring washers and flat washers
Documentation pack (including mounting template)
10m Data Cable
10m Power Cable

Package Dimensions:

24" x 24" x 12"

Available Method:

• Ground
• 2 Day

* ALL WARRANTY IS THROUGH MANUFACTURE *
