Mpower J2 Output Mating Connector

Maretron MPower CLMD16 J2 Output Mating Connector — 1m Leads (A3708)

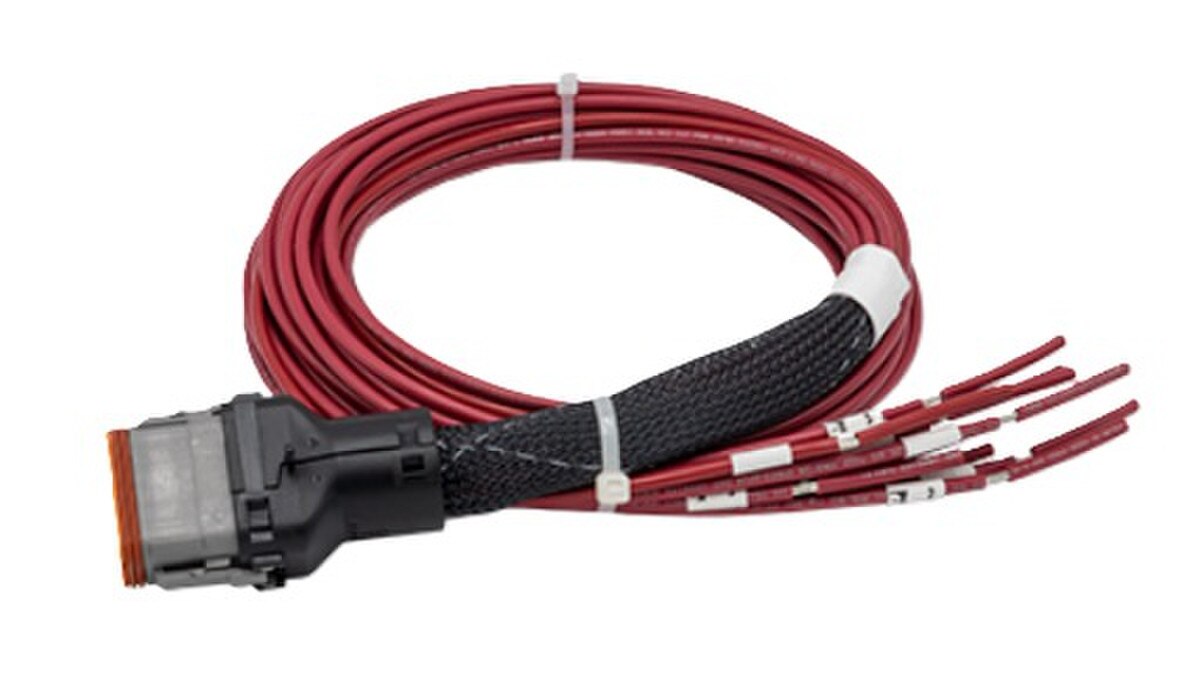

The J2 output Deutsch connector assembly for the Maretron MPower CLMD16 — a 12-pin Deutsch connector with 1m numbered flying leads that terminates the standard output channel wiring from the CLMD16's J2 port.

Why It's Worth It

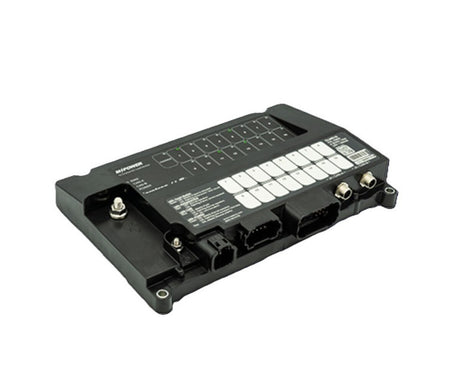

The CLMD16's J2 output port handles 12 of the 16 output channels (the standard 12A circuits) and uses a Deutsch DT06-12SA 12-pin connector that isn't included with the base CLMD16 module — only the CLMD16-R bundled kit includes it. If you ordered the base CLMD16 (module only), this is the connector you need to wire your standard output channels. The 1m pre-made leads are numbered by breaker output number (not pin position) for easy identification — splice or connect to a terminal block per the CLMD16 installation manual.

Use
Plug the Deutsch 12-pin connector into the J2 output port on the CLMD16. The numbered flying leads correspond to specific breaker output channels — refer to the CLMD16 installation manual for the full wiring map. Order alongside A3709 (J1 output connector) and A3710 (J3 I/O harness) to complete the full wiring harness for a standalone CLMD16 installation. Note: a Deutsch HDT-48-00 crimp tool is required if you choose to wire the Deutsch plug directly rather than using this pre-made assembly.
