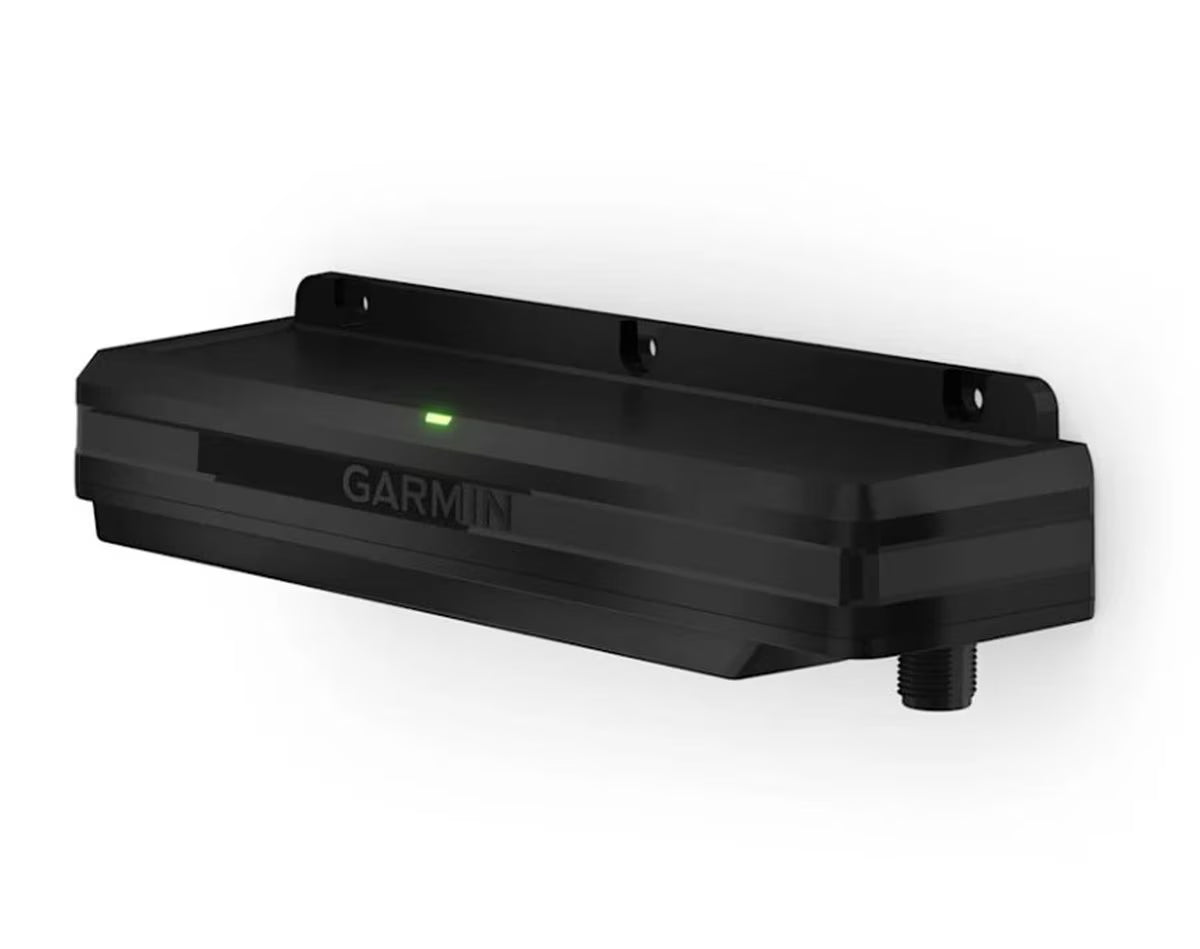

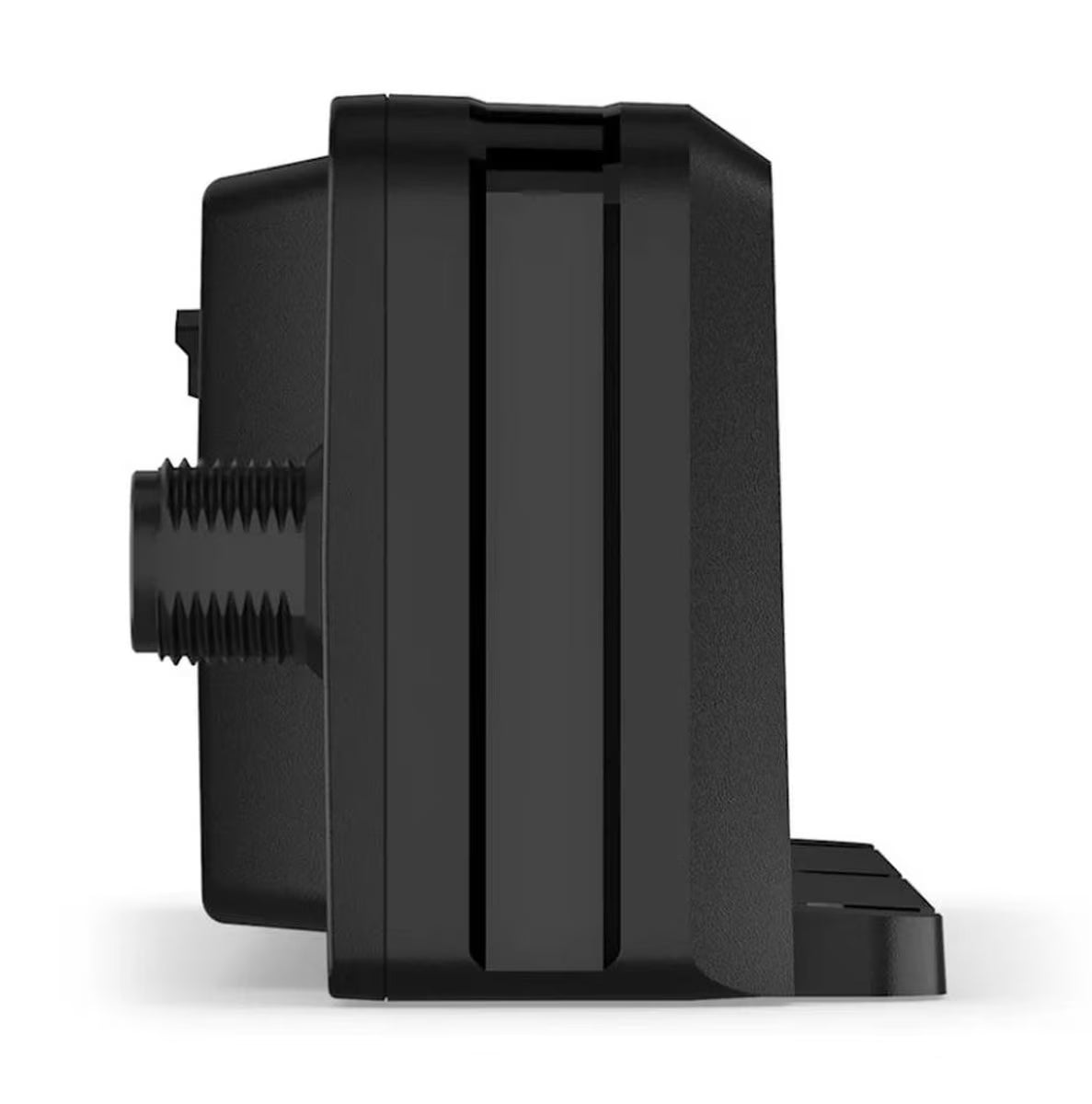

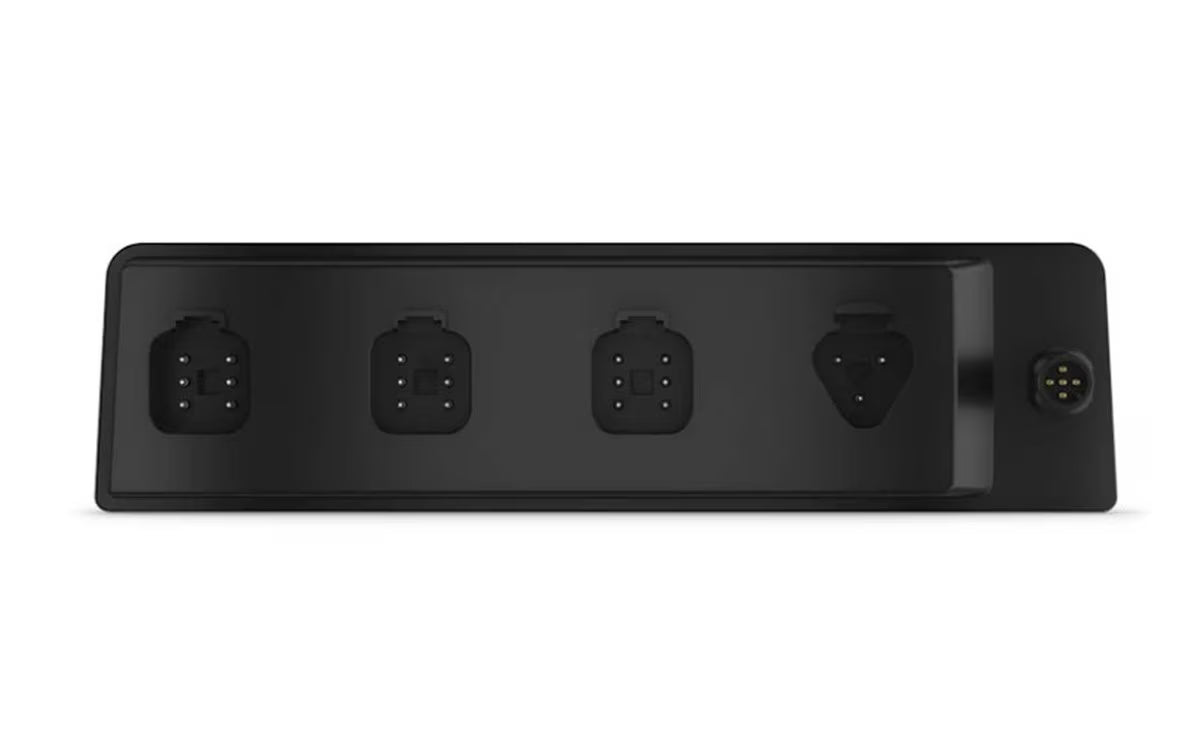

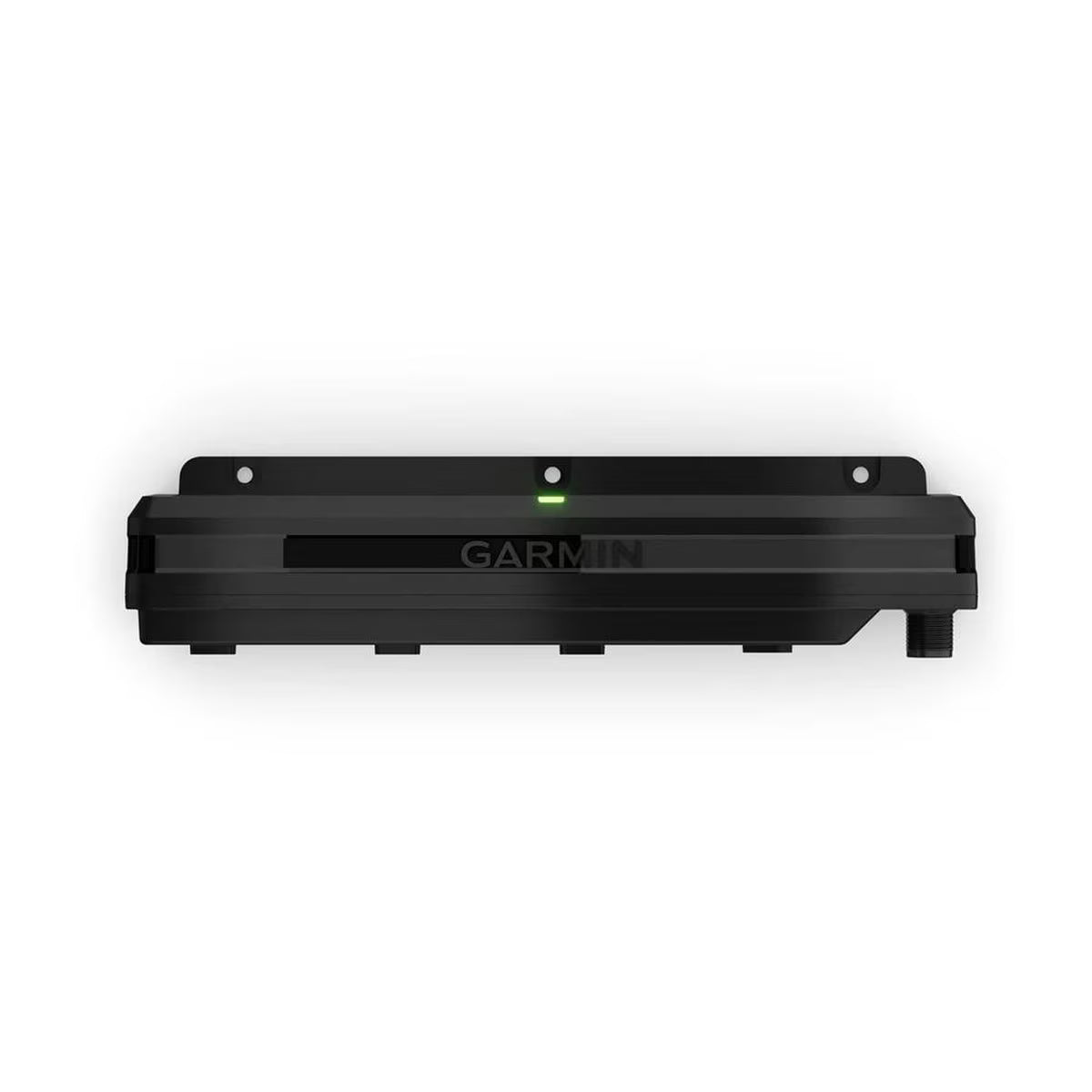

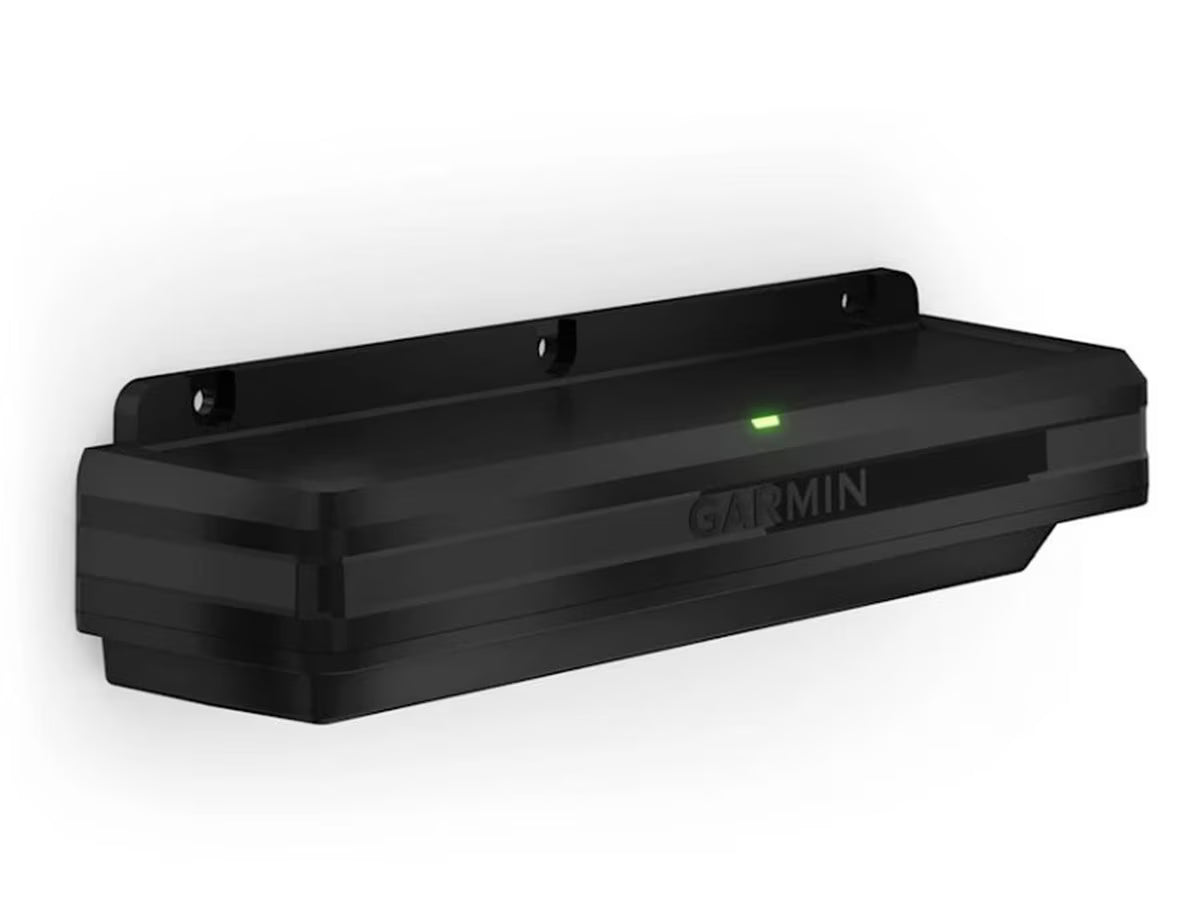

Spectra 302
3-Zone LED Controller
Need This Product Installed?
Need This Product Installed?
We Offer Mobile Installation From West Palm Beach - Fort Pierce, FL
Descripción
Descripción
Control LED lights on your boat from your compatible chartplotter or smartphone with the Garmin Spectra light control module (lights not included). Assign and control different light groups for cup holders, speakers, strip or courtesy lights, and more to create your own vibe.
From bow to stern and everything in between, this module lets you control and set up different light groups and scenes.
Control lights over the NMEA 2000(R) network with your compatible chartplotter or with the ActiveCaptain(R) app on your compatible smartphone.
See the beat by syncing the LED lights to the music track with the audio sync feature.
Control LED lighting on Fusion and JL audio boat speakers and subwoofers plus wake tower speakers (sold separately).
Add more lights after the initial install with a scalable system.
Especificaciones
Especificaciones
-
MPN010-02830-00
-
PhysicalDimensions: 7.76" x 2.05" x 1.85" (197 x 52 x 47 mm)
Weight: 5.57 oz (158 g) -
PowerInput: 10.8 - 16v DC / 21.6 - 32v DC
Max Draw: 6 A -
ConnectivityNMEA 2000
Control via MFD or Fusion Apollo Stereo -
LightOutput Current: 2A/Connector
LED Type: RGB, RGBW, CRGBW, single channel
LED Modes: Color pick, audio sync (color blend/audio spectrum), effects -
IP RatingIP66
Reseñas (0)
Reseñas (0)
In The Box
In The Box
In The Box:
Garmin Spectra LC302
Power flying lead with water-resistant three-way connector
Three LED flying leads with water-resistant six-way connectors (depending on the version selected)
Tee connector for the NMEA 2000® network
Backbone/drop cable (0.3 m) for the NMEA 2000® network
Mounting screws
Documentation
Package Dimensions:
Support/Warranty
Support/Warranty
Product Support:
Subscription Information:
Release Date:
Warranty: 2yr
Garmin Marine Warranty
* ALL WARRANTY IS THROUGH MANUFACTURE *
